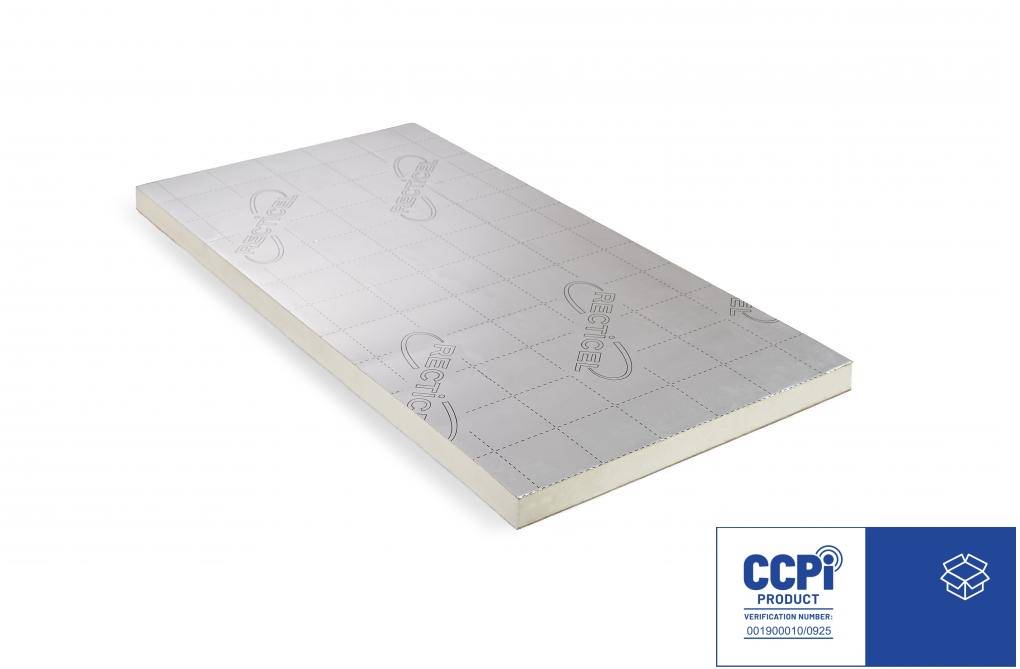

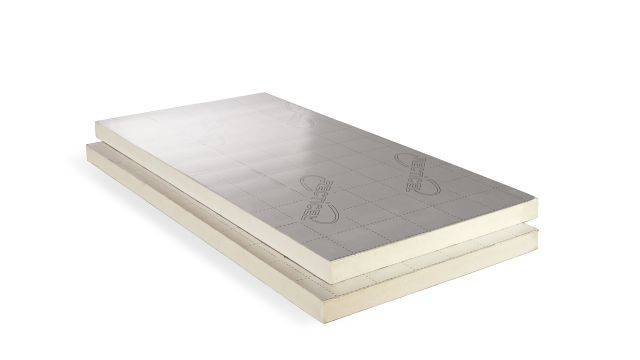

Eurothane® GP - Rigid PIR Insulation

Name: Eurothane® GP - Rigid PIR Insulation
Brand: Recticel Insulation
SKU: 6r8gHXVjSjHTa4vdCkj1q8

Verified by manufacturer today

Recticel Insulation

Product certifications:

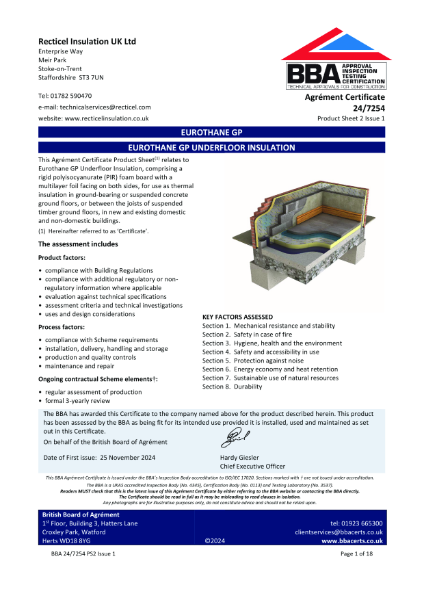

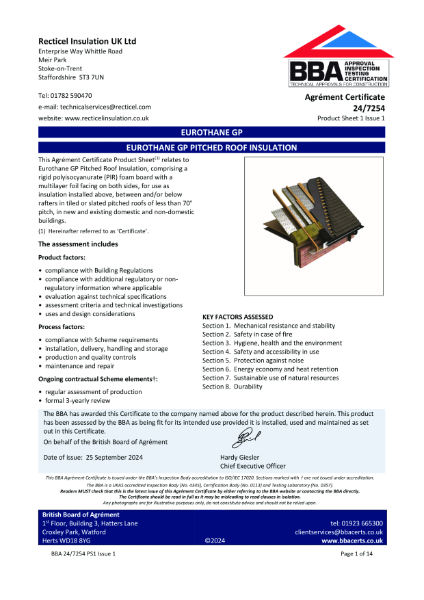

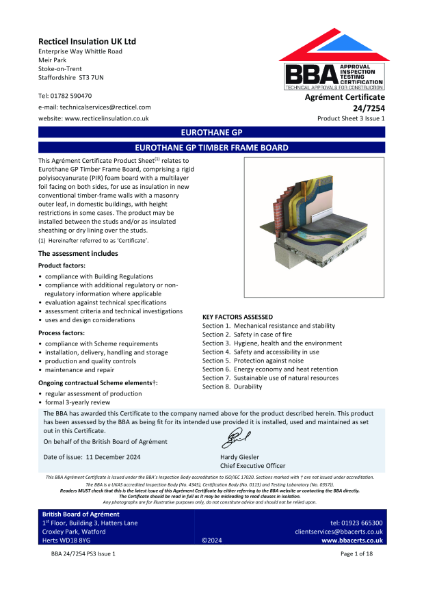

BBA Agrément Certificate
Certificate type
BBA Agrément Certificate
Certificate type

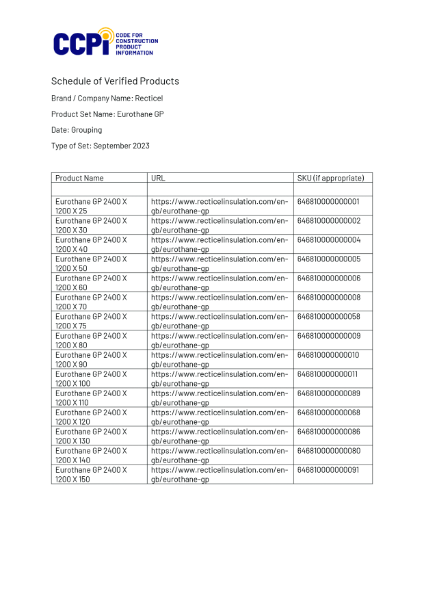

CCPI Product
Certificate type
BBA Agrément Certificate
Certificate type
EPD
Certificate type

Rigid PIR insulation for multiple applications, including pitched roofs, floors and framed walls.

Jump to:

Request BIM

01782 590470 Website

Application

For use in pitched roofs, framed walls and floor applications.

Eurothane GP can be used with wet and electric underfloor heating systems (UFHs).

Can be fitted between and over stud frames and rafters internally and externally.

Description

Eurothane® GP is a rigid polyisocyanurate (PIR) foam board for use in multiple applications, including pitched roofs, floors and framed walls. It is faced on both sides with a multi-layer coated aluminium foil.

Thermal bridging

With increasing levels of insulation it is important to ensure the continuity of insulation at the junction of elements. In floors, this means the use of perimeter upstand insulation around the screed or slab. In pitched roofs and framed walls, the use of continuous insulation layers in addition to insulation installed between the structure is recommended. This provides a more efficient solution overall and makes it easier to achieve continuity of insulation.

Features and benefits:

Manufactured to ISO 9001 Quality and ISO 14001 Environmental Management Systems.
CCPi-verified product, verification number 001900010/0925 - see https://www.cpicode.org.uk/about/ for further details.
Manufactured using a blowing agent with zero ozone depletion potential (ODP) and low global warming potential (GWP).
Low thermal conductivity of 0.022 W/m·K.
CE marked in accordance with harmonized European standard EN 13165.

General information

Color	White Silver
Material	Polyisocyanurate (PIR) Guidance for specification option: Polyisocyanurate (PIR).
Shape	Rectangle
Length	2400 mm
Width	1200 mm
Height	25 mm 30 mm 40 mm 50 mm 60 mm 70 mm 75 mm 80 mm 90 mm 100 mm 110 mm 120 mm 130 mm 140 mm 150 mm Show more

Uniclass	Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary
CAWS	E20/200 Proprietary underslab insulation E20/30 Underslab insulation K11/115 Battened plywood floating floor K11/125 Battened particleboard floating floor K11/135 Battened oriented strand board floating floor K11/145 Battened cement-bonded particleboard floating floor K11/20 Battened particleboard floating floor K11/215 Plywood floating floor K11/225 Particleboard floating floor K11/235 Oriented strand board floating floor K11/25 Particleboard floating floor K20/150 Battened timber board floating floor K20/20 Battened timber board floating floor P10/140 Insulation fitted between rafters P10/148 Multilayer blanket insulation fixed under or above rafters P10/15 Insulation fitted between rafters P10/190 Insulation fitted between studs P10/220 Sound insulation within timber framed separating wall P10/240 Insulation fitted between floor joists P10/40 Insulation fitted betweenor to the face ofstuds P10/45 Insulation laid between floor joists

Specification data - Polyisocyanurate (PIR) foam boards

Classification data
Standard	To BS EN 13165.
Third-party certification	BBA certificate.
Fire performance	To EN 13501-1, Euroclass F. Guidance for specification option: Class 1 (BS 476-7).
Thermal conductivity (maximum)	0.022 W/m·K.
Compressive strength at 10% deformation	25-49 mm: 120 kPa, 50-150mm: 140 kPa.
Cross section	Uniform thickness.
Thickness (nominal)	25 mm. 30 mm. 40 mm. 50 mm 60 mm. 70 mm. 75 mm 80 mm 90 mm. 100 mm. 110 mm 120 mm. 130 mm. 140 mm 150 mm.
Face size (length x width)	2400 x 1200 mm.
Facing	Faced on both sides with a multi-layer coated aluminium foil.
Edges	Square.
