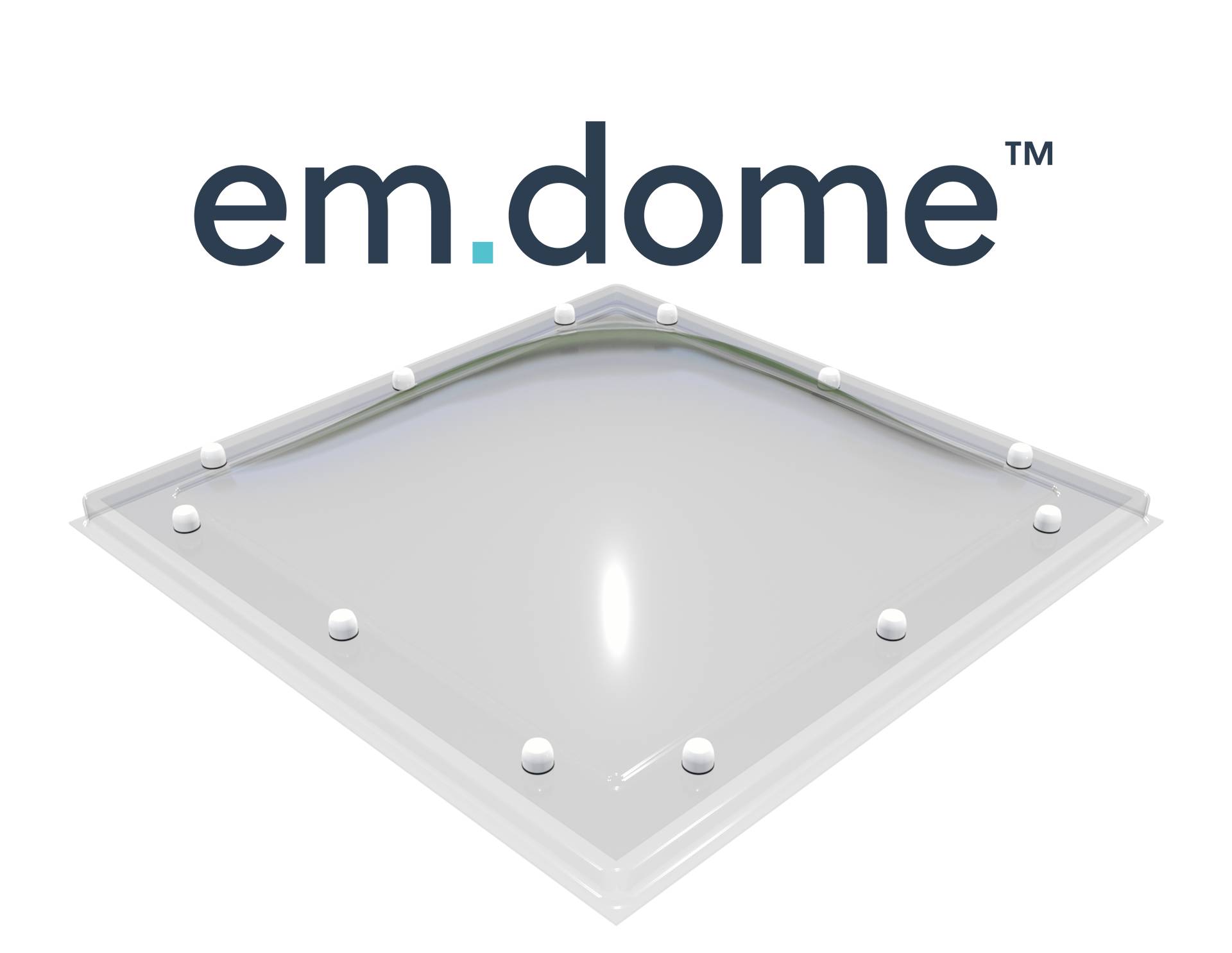

em.dome® - Polycarbonate Rooflight

Name: em.dome® - Polycarbonate Rooflight
Brand: Whitesales Rooflights
SKU: raVsQq79CKA3usbg9xavRD

Verified by manufacturer 5 months ago

Single glazed

Whitesales Rooflights

Polycarbonate thermoformed rooflights designed to make optimum use of natural light.

Jump to:

BOS

+44 (0)1483 917580 Website

Application

Suitable for use on most flat roofs, including single ply, felt, hot-melt, asphalt, liquid, GRP and lead.
A range of upstands to accommodate new roof insulation.

Description

Polycarbonate thermoformed rooflights designed to make optimum use of natural light, available in a wide range of sizes, shapes and glazing options. Normally specified with Whitesales proprietary insulated PVC-U curbs, but can also be installed on existing builders curbs. Higher security, access and ventilation options are available.

Features and benefits:

Thermoformed from UV protected, co-extruded polycarbonate sheet and are available in solid single, double, triple, quad skin or Eco multiwall construction.
Available as clear or diffused, dome only and domes with an upstand, for detailed finish.
Available in dome, pyramid or trapezoidal shape.
Ventilation and access options available.
Ventilation options include controllable rotary trickle vents and electric opening.
Solid glazed units use a minimum 3 mm thick glazing and have been tested and certified according to EN 1873: 1200 J and ACR(M): 001: 2005 Class B.
Compliant with HSG33 recommendations.
Over 40 stocked sizes available, with a range of PVC-U upstands and polycarbonate domes (certified as 'non-fragile').
Units supplied with patented high-security screwbolt fixings.
Em-Dome Plus option available, for secure fixing utilizing a fully enclosed, tamper-proof frame.
1200 Joule certificate Cebtp D313.9.823.1/2 and SB 1200 (EN 1873), refer to manufacturer literature (data sheet) for full specification.
Light transmission according to EN ISO 13468.
dB values according to EN ISO 140-3 (report P902622-B).

General information

Color	White Guidance for specification option: Upstand. Grey
Finish	Glazed Guidance for specification option: Double, triple, quad or Eco multiwall glazed dome (quad glazing special order).
Material	PVC-U Guidance for specification option: Upstand. Polycarbonate Guidance for specification option: Rooflight. Aluminium
Shape	Square Guidance for specification option: For pyramid dome profile (section). Rectangle Guidance for specification option: For trapezoidal dome profile (section). Circle Guidance for specification option: For standard dome profile (section). Manufacturer guidance Rooflight shape (plan).
Length	400 mm 500 mm 550 mm 600 mm 700 mm 750 mm 800 mm 900 mm 1000 mm 1050 mm 1100 mm 1200 mm 1300 mm 1400 mm 1700 mm Bespoke Show more
Width	400 mm 500 mm 550 mm 600 mm 700 mm 750 mm 800 mm 900 mm 7007050 mm 1100 mm 1200 mm 1300 mm 1400 mm 1700 mm 1600 mm 1900 mm Bespoke Show more
Height	Bespoke
Warranty description	Ten year Guidance for specification option: Glazing. One year Guidance for specification option: Mechanical components.

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights L10/490 Roof ventilators

Product range	Polycarbonate Rooflights em. Range

Specification data - Framed rooflights

Form	Dome. Guidance for specification option: Standard. Pyramid. Guidance for specification option: Section for square rooflights. Trapezoid. Guidance for specification option: Section for rectangular rooflights. Square. Rectangular. Round.
Size	Guidance for specification option: 300 x 300 to 1800 x 3000 mm. Over 40 sizes available for domes, specify from product literature (size chart), or consult manufacturer.
Product performance	-
Fire performance	-
Fire resistance	To BS 476:Part3 AA, Class 1. To 1991 Building Regulations. Guidance for specification option: Tp(a).
Frame	-
Material	uPVC. Guidance for specification option: Fixing with high security patented screwbolt. Em-Dome Plus option available, for secure fixing utilizing a fully enclosed, tamper-proof frame. Refer to Whitesales Modular Rooflights brochure page 35 for recommendations.
Finish	-
Colour	White, self finished.
Glazing or infill	-
Type	Polycarbonate sheet. Guidance for specification option: At least 3 mm thick. 'Non-fragile' certified.
Construction	Single skin. Guidance for specification option: Suited to non-heated, external areas such as canopies and out-buildings. Manufacturer guidance Consult product literature for technical characteristics of glazing options.
Colour	Clear. Opal diffused. Guidance for specification option: Standard. Diffuses the light over a wide area and provides privacy. Heat-reflect. Guidance for specification option: Reflects up to 68% solar energy, minimizing heat build-up in rooms below. Bronze tint.
Coating	UV protected.
Integral kerb	Not required. Guidance for specification option: Fit rooflight directly to a site formed upstand or curb (timber/ concrete/ metal/ GRP). Size should be detailed as the external measurement at the top of the upstand. PVC-U, 150 mm high, vertical, white. Guidance for specification option: Suits new installations or replacement of existing upstand. Vertical internal face. PVC-U, 150 mm high, splayed, white. Guidance for specification option: Suits new installations or replacement of existing upstand. Splayed internal face. PVC-U, 300 mm high, splayed, white. Guidance for specification option: Suits new installations or replacement of existing upstand. Splayed internal face. PVC-U, 350 mm high, oversleeve, white. Guidance for specification option: Oversleeves existing upstand to avoid disturbing internal lining, asbestos etc. PVC-U adaptor collar. Guidance for specification option: Fits to the top of an existing or new site formed upstand (timber/concrete/metal/GRP). Size should be detailed as the external measurement at the top of the upstand.
Accessories	Not required. Burglar bar grid. Security frame. Vent Control Pack. Guidance for specification option: Used in conjunction with electric opening ventilation. Can incorporate wind, rain, temperature and CO2 sensors.

Ventilation/ opening	Not required. Guidance for specification option: No ventilation required. Fixed (non-vented). Access hatch. Guidance for specification option: Hinged and lockable access hatch to allow safe access to roof or plant areas. Controllable rotating, two sides. Guidance for specification option: Tested and certified according to EN 1873 - Watertightness. Fully insulated, providing minimum 11 000 mm² vent suited to living and working areas. Controllable rotating, four sides. Guidance for specification option: Tested and certified according to EN 1873 - Watertightness. Fully insulated, providing minimum 22 000 mm² vent suited to living and working areas. Controllable trickle, two sides. Guidance for specification option: Provides minimum 8 000 mm² vent to assist compliance with Building Regulations. Controllable trickle, four sides. Guidance for specification option: Provides minimum 16 000 mm² vent to assist compliance with Building Regulations. Electric hinged opener. Guidance for specification option: Electrically operated hinged opener operated by switch or specialist (wind, rain, temperature and CO2 sensors) control pack. Opens up to either 400 or 600 mm. Extract fan. Guidance for specification option: Centrifugal extract fan to remove air. Suited to cloakroom, kitchen and other high humidity areas. Manual hinged opener. Guidance for specification option: Hinged opener controlled by operating rod. Provides high air movement and can be opened up to 300 mm. Permanent. Guidance for specification option: Permanent, non-controllable spacer washers for corridors and non-inhabited rooms. Smoke vent. Guidance for specification option: Electrically operated hinged openers to allow controlled smoke ventilation. Opens to either 90° or 140°. Control panel and accessories are available. Show more Manufacturer guidance Ventilation options include controllable rotary trickle vents and electric opening.
Third party certification:	CE Certifiied to EN 1873.
Ventilation	Em.domes to suit builders upstand. Guidance for specification option: 80 mm collar required. Available as fixed unit with or without rotating trickle vents, manual or electric opening. Em.domes with proprietary upstand. Guidance for specification option: Available as fixed unit with or without rotating trickle vents. Manually or electrically opening, with or without rotating trickle vents. Manufacturer guidance Ventilation options, refer to product directory for more information.

Sustainability data

Contains Red List materials	Yes
Country of material origin	Europe
Country of product manufacture	Europe
Recyclability	The polycarbonate lids can be sorted for recycling can be re-used. As a thermoplastic, polycarbonate in its pure form is suitable for mechanical recycling.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	Revit 2016	1

Literature

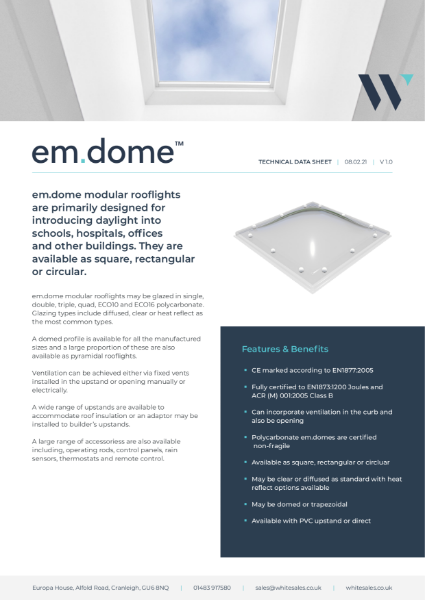

em.dome Datasheet
