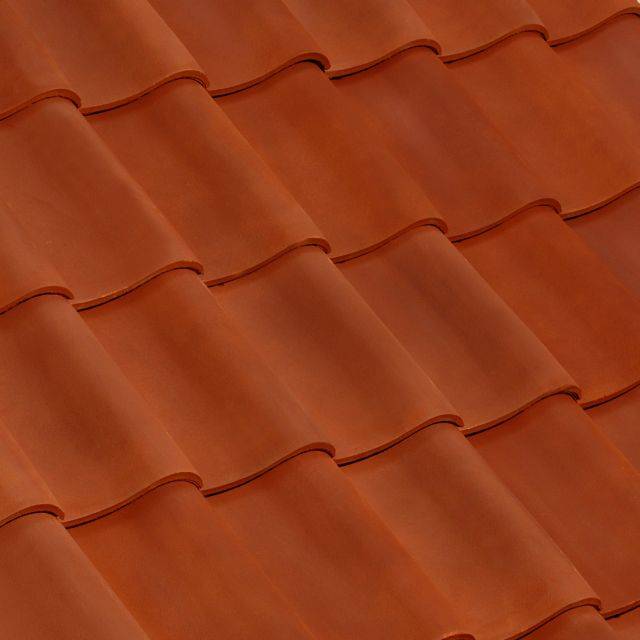

Edilians Pantile Panne S - Clay roof tile
Verified by manufacturer 2 months ago
Interlocking clay single pantile.
Application
A traditional pantile suitable for a wide range of new and refurbishment projects.
Description
The Edilians Panne S single pantile, manufactured at Edilians’ Wardrecques factory in northern France, is an interlocking clay roof tile.
Dry fixing is recommended at ridges, hips and verges. A wide range of matching accessories is available to complete a traditional roof design, including ventilating tiles.
Features and benefits:
- Distinctive natural colour range.
- Attractive modular size.
- Traditional pantile design.
- Range of compatible fittings.
- Complete dry roof solution available.
- Natural product - silicone free.
- Minimum roof pitch 22.5°.
- Compatibility with Edilians PVt modules.
- Comprehensive 30 year guarantee (subject to terms and conditions).
- BS 6399-2:1997. BS 5534:2003 can be provided on request, contact Edilians for more details.
General information
Color | Red Black Grey Brown Other |
Finish | Smooth Sanded |
Material | Clay |
Shape | Rectangle |
Length | 342 mm |
Width | 232 mm |
Height | Bespoke |
Warranty description | 30 year |
Uniclass | |
CAWS | H65/105 Clay roof tiling H65/110 Clay roof tiling with counterbattens H65/3 Roof tiling H65/5 Roof tiling |
Specification data - Clay interlocking tiles
Standard | BS EN 1304. |
Colour | Burnt Red (034).Natural Red (076).Rustic Red (005).Satin Black (050).Slate (011).Vieux Nord (119).Weathered (109).Burnt Red.Natural Red.Vintage. |
Size | 342 x 232 mm. |
TileWidth | 190 mm. |
Capacity | 20 per m². Manufacturer guidance(Covering capacity) |
Weight | 2.3 kg per tile; 46 kg/m². |
Pitch | 17.5°. Manufacturer guidanceMinimum pitch. |
Battens | 3.63 linear metres. Manufacturer guidance(Batten coverage m²) |
Staples/nails | 50 x 3.35 mm. Manufacturer guidance(Nail size) |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Material | Clay |
Literature
Edilians Single Panne S Clay Pantile
