Edilians HP10 - Clay roof tile
Verified by manufacturer 3 months ago
Large module interlocking clay roof tile with a thin tapered leading edge.
Application
This modern tile has proven popular for new build projects.
Description

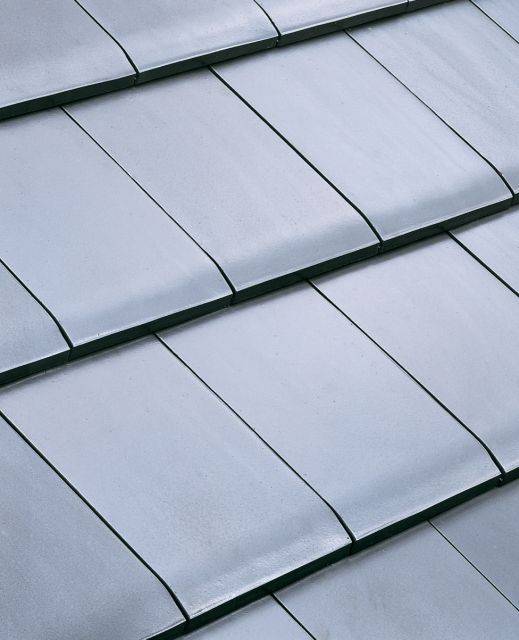

The Imerys HP10 interlocking roof tile, manufactured at Edilians’ St Germer de Fly factory in northern France, is a large module interlocking clay roof tile with a thin tapered leading edge. The slate colour tile can be specified as an economical natural alternative to man-made and other slates.
Dry fixing is recommended at ridges, hips and verges. A wide range of matching accessories is available to complete a traditional roof design, including ventilating tiles.
Features and benefits:
- Distinctive natural colour range.
- Large module for economical coverage 10 tiles per m².
- Large tile for economical coverage.
- Variable gauge for ease of installation.
- Range of compatible fittings.
- Complete dry roof solution available.
- Natural product - silicone free.
- Low pitch suitability: minimum pitch 17.5°.
- Integral compatibility with Edilians PVt modules.
- Solar water tile compatible.
- Comprehensive 30 year guarantee (subject to terms and conditions).
- BS 6399-2:1997. BS 5534:2003 can be provided on request, contact Edilians for more details.
General information
Color | Black Brown Grey Red Silver |
Finish | Smooth |
Material | Clay |
Shape | Rectangle |
Length | 460 mm |
Width | 306 mm |
Height | Bespoke |
Warranty description | 30 year |
Uniclass | |
CAWS | H65/105 Clay roof tiling H65/110 Clay roof tiling with counterbattens H65/3 Roof tiling H65/5 Roof tiling |
Specification data - Clay interlocking tiles
Standard | BS EN 1304. |
Colour | Argentique (015).Brown (116).Burnt Red (034).Natural Red (074).Slate (011). |
Size | 460 x 305 mm. |
Width | 268 mm. Manufacturer guidance(Effective width) |
Capacity | 10 per m². Manufacturer guidance(Effective width) |
Weight | 4.3 kg per tile; 43 kg/m². |
Gauge | 310–376 mm. Manufacturer guidance(Variable) |
Roof pitch | 17.5°. Manufacturer guidance(Minimum) |
Battens | 2.68 m² Manufacturer guidance(Batten coverage) |
Staples/nails | 50 x 3.35 mm. Manufacturer guidance(Nail size) |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Material | Clay |
