Edilians Beauvoise 20 - Clay roof tile
Verified by manufacturer 3 months ago
Small format interlocking clay roof tile.
Application
Suitable for renovation and new build projects.
Description

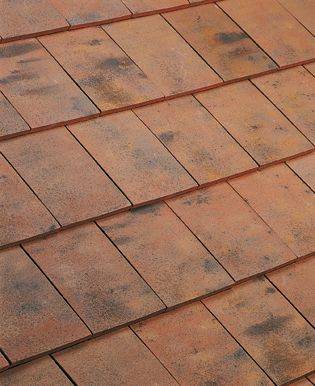

The Edilians Beauvoise interlocking roof tile, manufactured at Edilians’ St Germer de Fly factory in northern France, is a small module interlocking clay roof tile. Designed to be laid broken bonded; they are an economical alternative to concrete plain tiles and clay plain tiles. The clay slate version is a natural option to man-made and other slates.
Dry fixing is recommended at ridges, hips and verges. A wide range of matching accessories is available to complete a traditional roof design, including ventilating tiles.
Features and benefits:
- Distinctive natural colour range.
- Small module 20.5 tiles per m².
- Range of compatible fittings.
- Complete dry roof solution available.
- Natural product - silicone free.
- Minimum pitch 22.5°.
- Compatibility with Edilians PVt modules.
- Comprehensive 30 year guarantee (subject to terms and conditions).
- BS 6399-2:1997. BS 5534:2003 can be provided on request, contact manufacturer for more details.
General information
Color | Grey Red Brown Other |
Finish | Smooth |
Material | Clay |
Shape | Rectangle |
Length | 432 mm |
Width | 255 mm |
Height | Bespoke |
Warranty description | 30 year |
Uniclass | |
CAWS | H65/105 Clay roof tiling H65/110 Clay roof tiling with counterbattens H65/3 Roof tiling H65/5 Roof tiling |
Specification data - Clay interlocking tiles
Standard | BS EN 1304. |
Colour | Burnt Red (034).Slate (011).Terre de Beauce (099).Vallée de Chevreuse (026). |
Size | 322 x 235 mm. |
Width | 200 mm. Manufacturer guidance(Effective width) |
Capacity | 20.5 per m². Manufacturer guidance(Covering capacity) |
Weight | 2.2 kg per tile; 45 kg/m². |
Batten size | 38 x 25 mm rafter centres: 450 mm. 50 x 25 mm rafter centres: 600 mm. |
Staples/nails | 50 x 3.35 mm. Manufacturer guidance(Nail size) |
Roof pitch | 22.5°. Manufacturer guidance(Minimum) |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Material | Clay |
Literature
Edilians Beauvoise 20 Clay Roof Tile
