Edilians Panne H2 - Clay roof tile
Verified by manufacturer 2 months ago

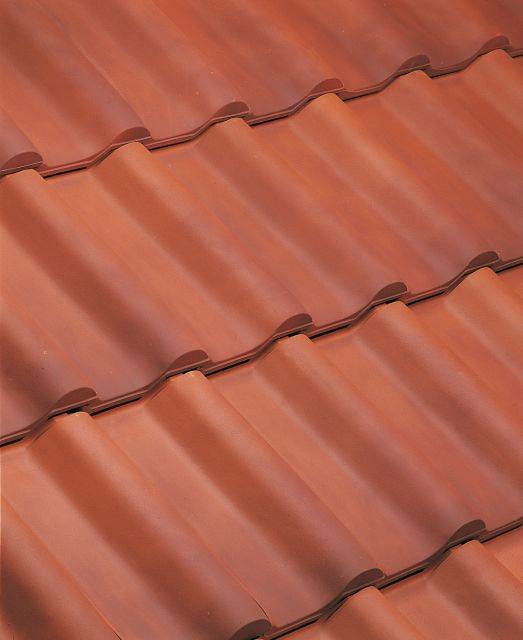

Interlocking clay pantile.
Application
Suitable for renovation and new build projects.
Description
The Imerys Panne H2 pantile, manufactured at Edilians’ Pargny Sur Saulx factory in the Champagne region of northern France, is an interlocking clay roof tile. The Panne H2 design offers outstanding performance for pitches as low as 17.5°.
Dry fixing is recommended at ridges, hips and verges. A wide range of matching accessories is available to complete a traditional roof design, including ventilating tiles.
Features and benefits:
- Distinctive natural colour range.
- Range of compatible fittings.
- Complete dry roof solution available.
- Natural product - silicone free.
- Minimum roof pitch 17.5°.
- Comprehensive 30 year guarantee (subject to terms and conditions).
- A+ Rating in the Building Research Establishment’s (BRE) Green Guide to Specification.
- BS 6399-2:1997. BS 5534:2003 can be provided on request, contact Edilians for more details.
General information
Color | Red Brown Grey Other |
Finish | Matt |
Material | Clay |
Shape | Rectangle |
Length | 432 mm |
Width | 255 mm |
Height | Bespoke |
Warranty description | 30 year |
Uniclass | |
CAWS | H65/105 Clay roof tiling H65/110 Clay roof tiling with counterbattens H65/3 Roof tiling H65/5 Roof tiling |
Specification data - Clay interlocking tiles
Standard | BS EN 1304. |
Colour | Brown (115).Burnt Red (034).Gloss Black (047).Natural Red (073).Rustic Red (006).Slate (011). |
Size | 432 x 255 mm. |
Width | 198 mm. Manufacturer guidance(Effective width) |
Capacity | 14 per m². Manufacturer guidance(Covering capacity) |
Weight | 3.2 kg per tile; 44.8 kg/m². |
Roof pitch | 17.5°. Manufacturer guidance(Minimum) |
Battens | 2.68 linear metres. Manufacturer guidance(Batten coverage m²) |
Staples/nails | 50 x 3.35 mm. Manufacturer guidance(Nail size) |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Material | Clay |
Literature
Edilians Panne H2 Clay Pantile
