Verified by manufacturer 2 months ago
EPD
Certificate type

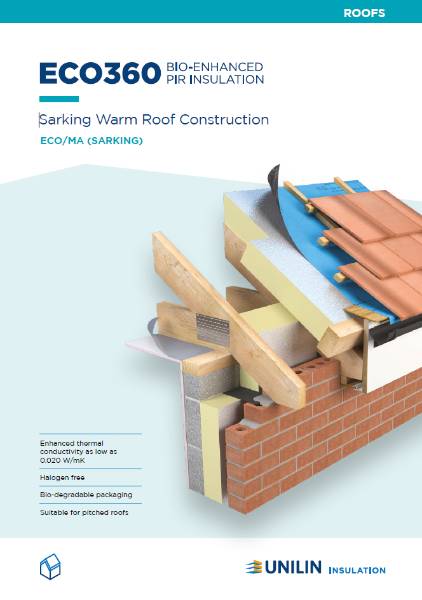

Polyisocyanurate (PIR) insulation suitable for sarking warm roof construction.
Warm pitched roof
ECO360 MA, with a thermal conductivity as low as
0.020 W/mK, in a sarking warm roof application offers
an environmentally conscious solution which provides
improved detailing, speed of installation and a uniform
plane to accommodate more efficient detailing.
This bio-enhanced insulation is lightweight, easy to install and combines high compressive strength with low thermal conductivity, providing a high performance solution for roof insulation.
ECO360 MA is halogen free and has low VOC emissions.
The product packaging is bio-degradable and the overall
packaging content has been reduced significantly
Features and benefits:
Color | Yellow |
Finish | Foil |
Material | Polyisocyanurate (PIR) |
Shape | Rectangle |
Length | 2400 mm |
Width | 1200 mm |
Height | 100 mm 125 mm 150 mm Manufacturer guidanceThickness |
Uniclass | |
CAWS | K11/695 Rigid board insulation fixed as roof sarking K11/55 Rigid board insulation fixed as roof sarking |
Standard | To BS EN 13165. |
Fire performance | NPD. |
Thermal conductivity (maximum) | 0.020 (W/mK). |
Compressive strength at 10% deformation | 150 (kPa) |
Cross section | Uniform thickness. |
Thickness (nominal) | 100 mm.Guidance for specification option: R-Value : 5 m² K/W. 125 mm.Guidance for specification option: R-Value : 6.25 m² K/W. 150 mm.Guidance for specification option: R-Value : 7.5 m² K/W. |
Face size (length x width) | 2400 x 1200 mm. |
Facing | Foil. |
Edges | Square. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyisocyanurate (PIR) |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 9.11 kg CO₂ eq/m² |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
