CavityWall 360 insulation - Partial Fill Cavity Wall Insulation
Verified by manufacturer 10 days ago
EPD
Certificate type
Polyisocyanurate (PIR) partial fill wall insulation.
Application
Partial fill cavity walls.
Description
The system incorporates robust facings, engineered
jointing details, performed corners and has a Lambda of 0.020 W/mK.
Cavity Wall 360 is an environmentally sound choice for Passive and low energy builds. It can achieve a Passive U-Value of 0.15 W/m²K in a traditional cavity wall. When building with Cavity Wall 360 a residual cavity is maintained, offering excellent protection against wind-driven rain.
Features and benefits:
- Bio-enhanced PIR insulation.
- Enhanced performance as low as 0.020 W/m K.
- Halogen free.
- Bio-degradable packaging.
- Clear cavity maintained.
- Lower Lambda value for improved U-Values.
General information
Color | Yellow |
Finish | Foil |
Material | Polyisocyanurate (PIR) |
Shape | Rectangle |
Length | 1200 mm |
Width | 450 mm |
Height | 110 mm 100 mm Manufacturer guidanceThickness |
Uniclass | |
CAWS | F30/12 Partial fill cavity insulation F30/155 Partial fill cavity insulation |
Specification data - Polyisocyanurate (PIR) foam boards
Standard | To BS EN 13165. |
Fire performance | NPD. |
Thermal conductivity (maximum) | 0.020 (W/mK). |
Compressive strength at 10% deformation | 120 (kPa) |
Cross section | Uniform thickness. |
Thickness (nominal) | 100 mm. Guidance for specification option: R Value: 5 m²K/W. 110 mm. Guidance for specification option: R Value: 5.5 m²K/W. |
Face size (length x width) | 1200 x 450 mm. |
Facing | Foil. |
Edges | Shiplap. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyisocyanurate (PIR) |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | |
Declared unit | 9.11 kg CO₂ eq/m² Certified Lower emissions |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Product certifications
Certified
Product certifications
Literature

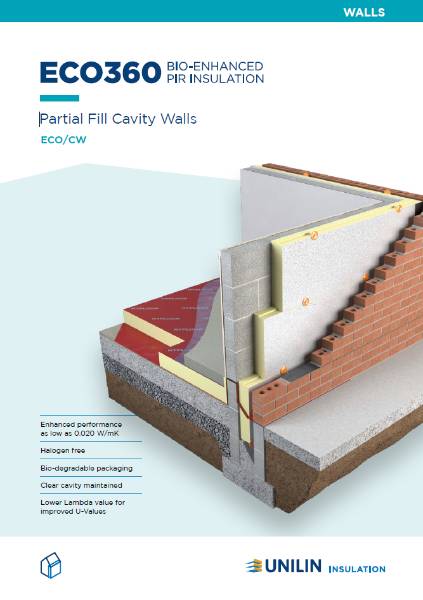

Unilin Insulation ECO CW UK V1
