ECO360 MA Floor insulation - Bio Enhanced Floor Insulation

Verified by manufacturer 4 months ago

Unilin Insulation UK Limited Third party certifications:
  • EPD

    EPD

    Certificate type

Polyisocyanurate (PIR) insulation suitable for solid and suspended floors.

Jump to:
+44 (0)371 2221033 Website

Application

Ground-supported and suspended floor application.

Description

ECO360 MA for floors offers excellent insulation

performance with a thermal conductivity of 0.020 W/mK.


This bio-enhanced insulation will significantly improve the U-Value of new and existing floors. It is lightweight, easy to install and combines high compressive strength with low thermal conductivity, providing a high performance solution for floor insulation.


It offers a bio-enhanced formulation which is halogen free and has low VOCs. The product packaging is bio-degradable and the overall content has been reduced significantly.


Features and benefits:

  • Bio-enhanced PIR insulation.
  • Enhanced performance as low as 0.020 W/mK.
  • Halogen free.
  • Bio-degradable packaging.
  • High compressive strength.
  • Suitable for underfloor heating.

General information

Color

Yellow

Finish

Foil

Material

Polyisocyanurate (PIR)

Shape

Rectangle

Length

2400 mm

Width

1200 mm

Height

100 mm

125 mm

150 mm

Manufacturer guidance

Thickness

Uniclass

Pr_25_71_63_66 Polyisocyanurate (PIR) foam boardsPrimary

CAWS

E60/140 Precast floor plate

M10/290 Floating construction

E60/10 Precast beam and block

E60/30 Precast slab

M10/40 Floating construction

M13/40 Floating construction

E60/110 Precast beam and block

E60/130 Precast slab

M13/260 Floating construction

Specification data - Polyisocyanurate (PIR) foam boards

Standard

To BS EN 13165.

Fire performance

Euroclass F.

Thermal conductivity (maximum)

0.020 (W/mK).

Compressive strength at 10% deformation

150 (kPa)

Cross section

Rectangular.

Thickness (nominal)

100 mm.

Guidance for specification option:

R-Value : 5 m² K/W.

125 mm.

Guidance for specification option:

R-Value : 6.25 m² K/W.

150 mm.

Guidance for specification option:

R-Value : 7.5 m² K/W.

Face size (length x width)

2400 x 1200 mm.

Facing

Foil.

Edges

Square.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polyisocyanurate (PIR)

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

9.11 kg CO₂ eq/m²

Recyclability

0

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

Third party certifications

EPD

EPD

Unilin Insulation UK Ltd ECO 360 PIR insulation products EPDIE-23-119

Literature

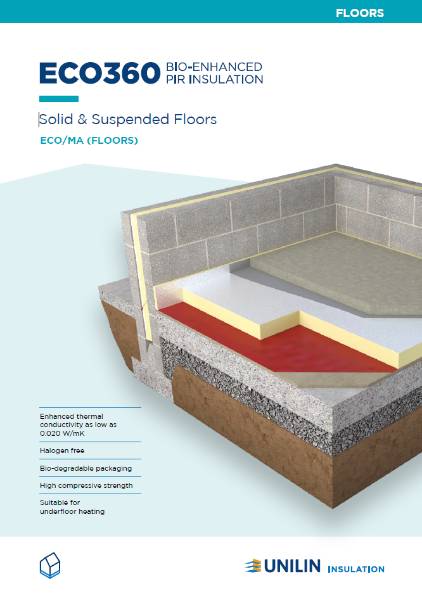

Unilin Insulation ECO MA(FLOORS) UK V1

Unilin Insulation ECO MA(FLOORS) UK V1
