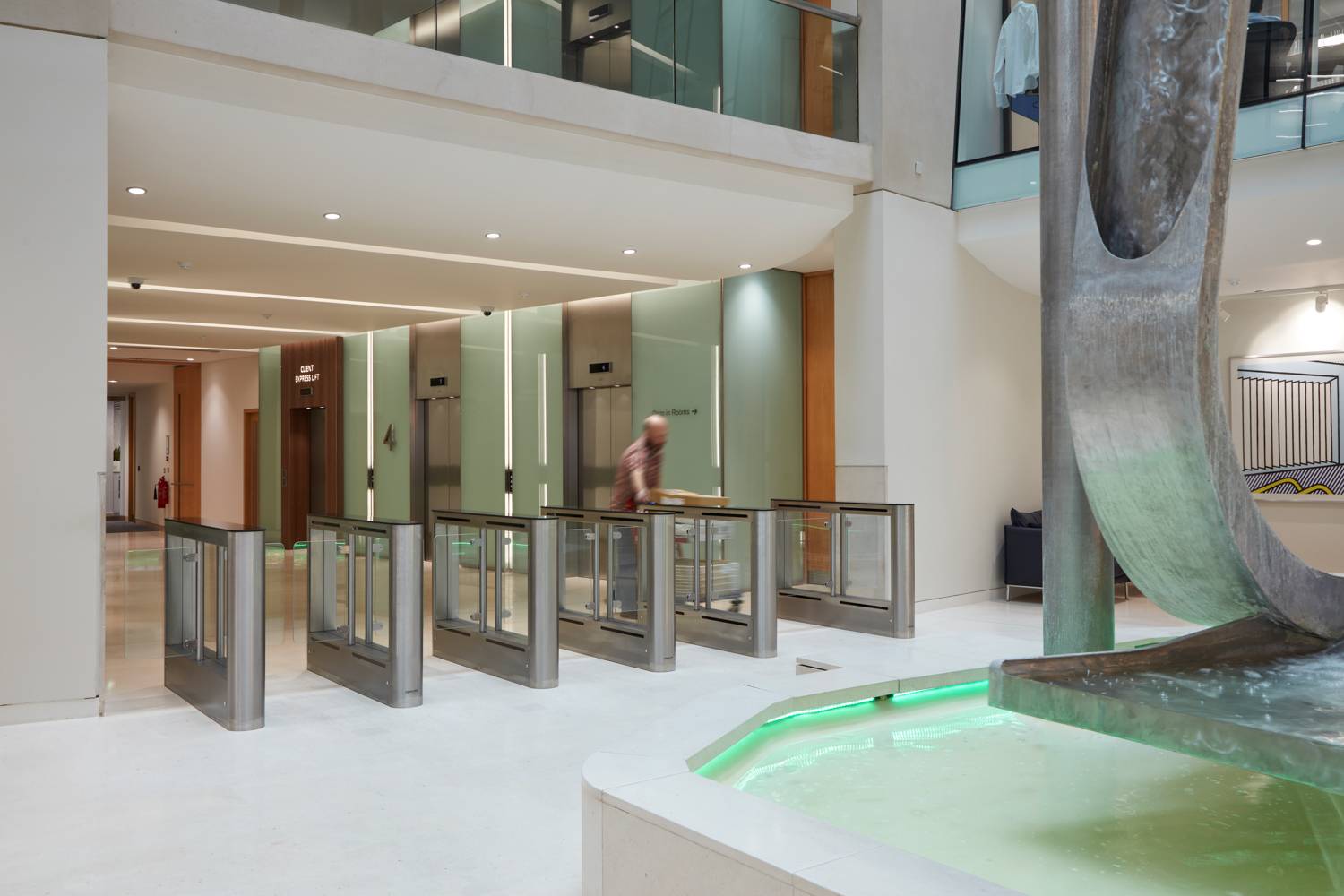

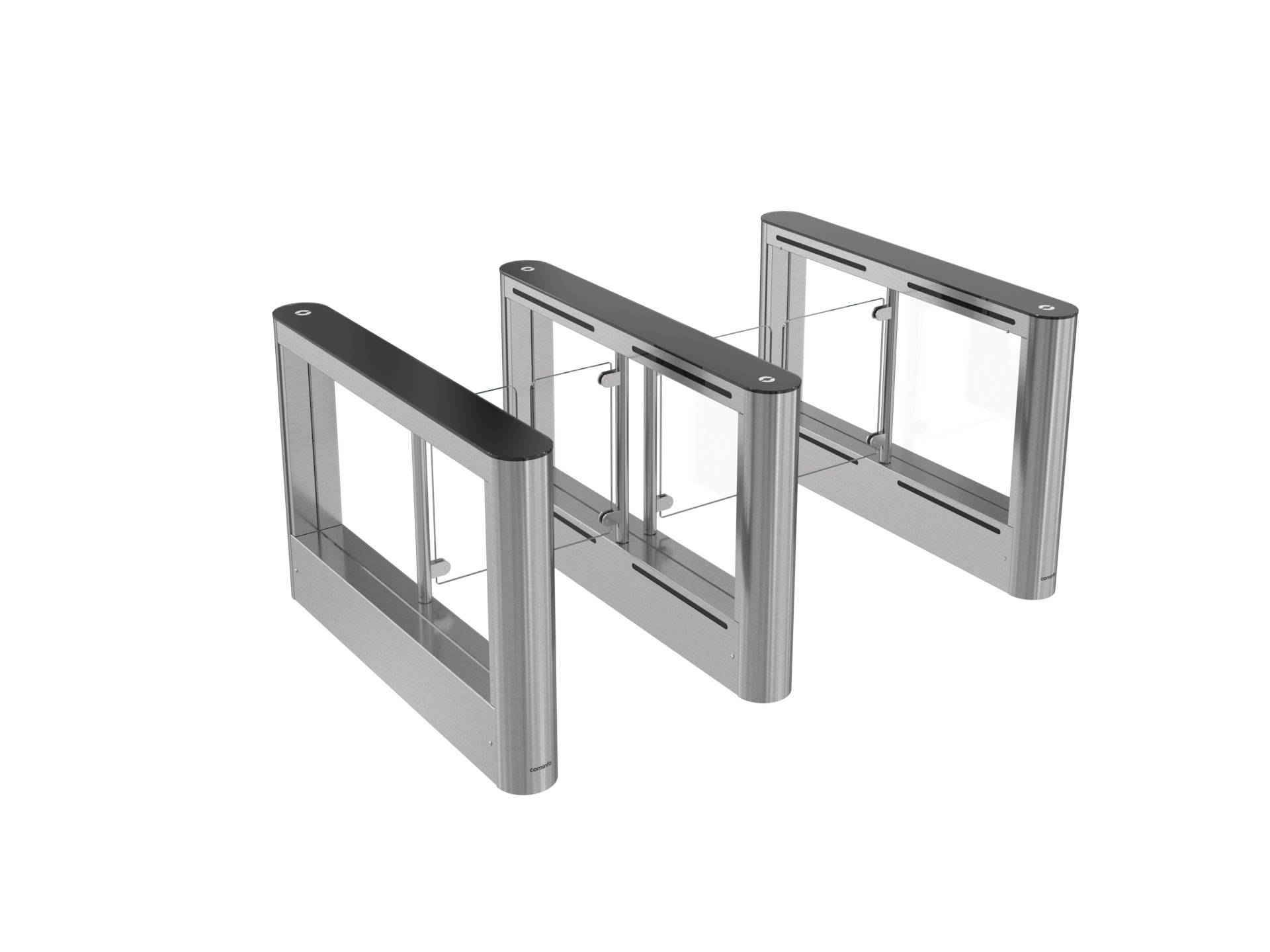

EasyGate SPT/ SPD Speed Gate

Name: EasyGate SPT/ SPD Speed Gate
Brand: Meesons A I Ltd
SKU: czSydcX8nkDusN25AaWs4G

Verified by manufacturer 9 hours ago

SPD-G Single Wing (Round cabinet design)

Meesons A I Ltd

A solid compact designed security solution. Small footprint, designed for a high level of throughput.

Jump to:

+44 (0)1756 797727 Website

Application

Entrance control solution suitable for:

Offices
Higher education – universities and colleges
Government
Local government
Leisure centres and gyms
Stadiums and arenas
Cinemas
Museums
Theatres
Data centres
Mixed-use buildings
Optional outdoor application - Can be configured for bicycle access, ensuring only verified users gain access to the cycle parking area, with or without a bike.

Description

Stylish, Robust Security for High-Traffic Environments

The EasyGate SPT/ SPD Speed Gate combines cutting-edge security with sleek, modern design, making it the ideal solution for sites with high pedestrian throughput. Available in 1200mm or 1500mm cabinet options, with round or square end panels, these gates offer exceptional flexibility to suit any architectural style. A wide range of premium finishes and seamless integration options ensures EasyGate SPT/ SPD delivers both performance and aesthetic appeal—perfect for corporate offices, higher education, datacentres and other demanding environments.

Patented Magnetic Drive Technology:

The EasyGate SPT/ SPD Speed Gates feature a patented Magnetic Direct Drive (MDD) motor, engineered for exceptional durability with a tested Mean Cycles Before Failure (MCBF) of 30 million cycles. Its brushless design—free from gearbox, clutch, or oil—delivers outstanding efficiency and minimal maintenance. Built to withstand dust and humidity, the MDD motor ensures long-term reliability in demanding environments. With adjustable speed and torque, EasyGate SPT/ SPD provides smooth, high-capacity throughput of up to 40 people per minute while effectively preventing tailgating.

Outdoor and Cycle Parking Variations:

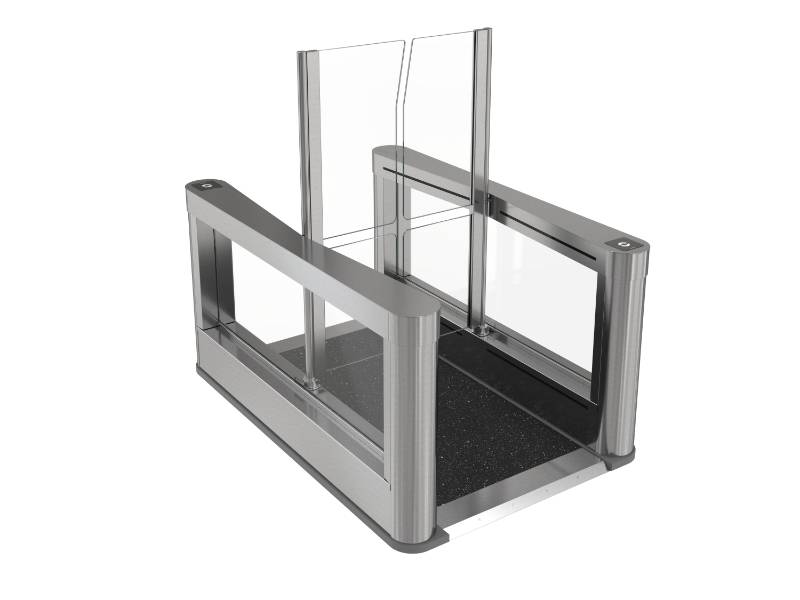

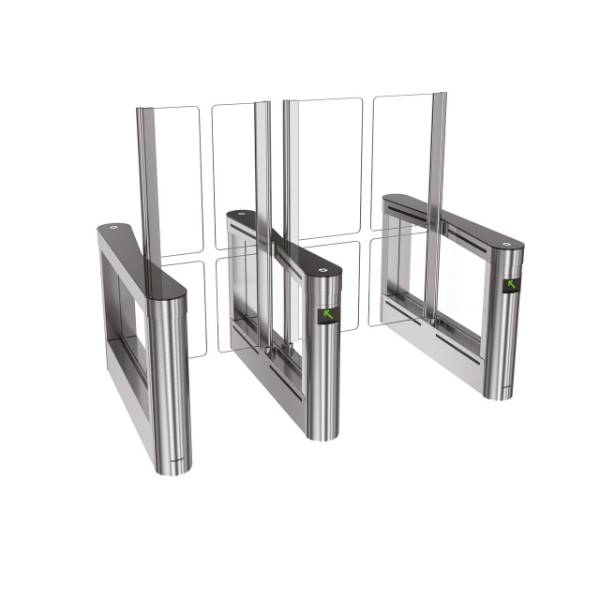

Thanks to its robust construction, the EasyGate SPT Outdoor is engineered for external environments without requiring a shelter or canopy. Featuring an IP53 rating, it delivers reliable performance in the harshest weather conditions—resistant to rain, snow, humidity, and temperature fluctuations. For cycle parking areas, the EasyGate SPT Bike variant provides secure access control, ensuring only authorised users can enter, whether they are with or without a bike.

Key Features and Benefits:

- Patented Magnetic Direct Drive for smooth, low-maintenance brushless operation
- Slim 180mm cabinet design for space-efficient installation
- Enhanced security with hardened tooth lock brake for maximum locking performance
- Optional anti-vault detection for added protection
- Versatile applications including outdoor environments and bike parking areas
- Exceptional durability – tested for up to 30 million cycles under recommended maintenance

General information

Color	Other Guidance for specification option: Any RAL colour available. Black Bronze Gold Brown Copper Grey Silver White Show more
Finish	Brushed Polished Powder-coated
Material	Stainless steel Glass
Shape	Rectangle Other
Length	1200 mm 1500 mm
Width	180 mm
Height	990 mm
Warranty description	One year Guidance for specification option: Extended warranty available.

Uniclass	Pr_30_59_15_36 Half-height access control gatesPrimary
CAWS	L20/60 Doors L20/490 Automatic doors

SKU Code	SPT-G SPT-R SPD-G SPD-R

Specification data - Half-height access control gates

Classification data
Standard	To BS EN 17352.
Configuration	Swing gates - single or multiple lane configurations with single wing or dual wing.
Housing	-
Material and finish	Brushed stainless steel 304.
Panel	-
Type	Single wing. Dual wings.
Rotation	Swing - bi-directional.
Speed of opening	0.5 seconds.
Material and finish	10 mm toughened safety glass.
Manifestation	Etched. Printed.
Size	-
Clear opening width (minimum)	550 mm.
Overall width	- Manufacturer guidance Variable based on configuration.
Length	1500 mm.
Height	2200 mm. Manufacturer guidance Glass wing.
Fixing	Fixed to the finished floor. Installed on surface mounted shallow ramps. Manufacturer guidance Optional subframes available, consult manufacturer for details.
Fire egress	Lanes drive open on input from fire alarm signal.
Security	High glass wings (up to 2200 mm), high holding force (650 N), pressure sensing top lids (anti-vault detection), audible alarm outputs.
Credential Reader	-
Type	RFID card reader. QR reader. Biometric reader. Pin keypad. Facial recognition. Other. Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidance Integration of third party readers.
Controls	Via access control system.
Number of transactions (minimum)	30–40 per minute.
Control unit	Touch panel. EasyTouch panel.
Power supply	230 V, AC.
Barrier Height	855 mm.
Passage width	550 mm (maximum passage width 600 mm).
Material/ Colour	AISI 304 stainless steel.
Lid	Black glass panel. Guidance for specification option: Standard. Bespoke coloured glass. Guidance for specification option: Optional. Wood. Guidance for specification option: Optional. Stone. Guidance for specification option: Optional. Corian. Guidance for specification option: Optional. Stainless steel with black glass ends. Guidance for specification option: Optional.
Barriers	10 mm tempered glass wing. Guidance for specification option: Standard. Tempered Low Iron glass wing. Guidance for specification option: Optional. Laminated glass wing. Guidance for specification option: Optional.
Power supply	230 V ac.
Communication	RS-485, USB, ethernet.
Sensors	24 Pairs (1200 mm cabinet); 36 Pairs (1500 mm cabinet).
Operating temperature	+10°C to +50°C (-25°C to +50°C with heating module).
Accessories	None. RFID reader bracket. Edge light. Wing light. Hinge capping. Integrated visitor card collector. Integrated 3rd party terminals. Low iron glass wings. LED lane light. Anti-vault detection. EasyScan. WAV player. Bespoke top lid. RF remote control. Speed Gate plinth. Post mounted infill barriers. Cantilever glass barriers. Glass manifestation. Speed Gate sub frame.
Door wings	One.
Surface finish	Brushed. Polished. Coated.

Sustainability data

Country of product manufacture	Czechia
Manufacturing plant location	Nábřeží 695, Prštné, 760 01 Zlín-Zlín 1, Czechia
Material	Stainless steel Glass
Recyclability	At the end of its lifecycle, the product is expected to be dismantled into separate material components for recycling
