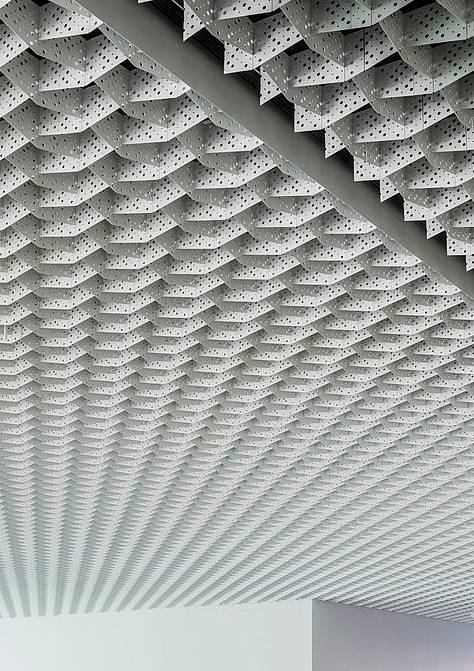

Durlum Open Cell Ceilings - Suspended Ceiling System

Name: Durlum Open Cell Ceilings - Suspended Ceiling System
Brand: LSA Projects Ltd
SKU: fTAvyvYKEx989vDRqKrtr2

Verified by manufacturer 2 months ago

Star - Linear Louvre

LSA Projects Ltd

Third party certifications:

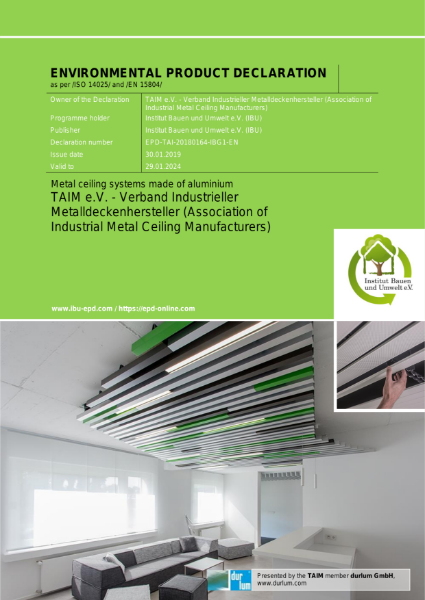

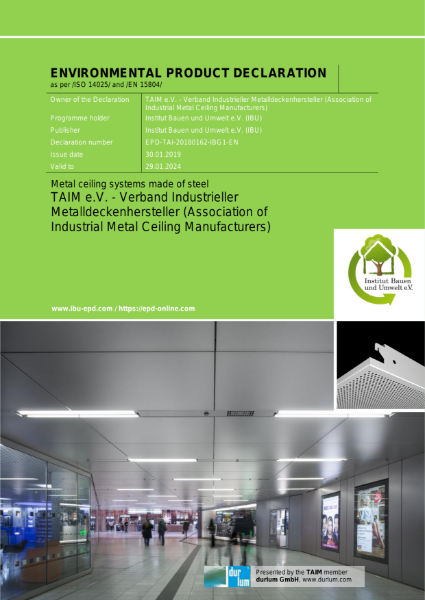

EPD
Certificate type

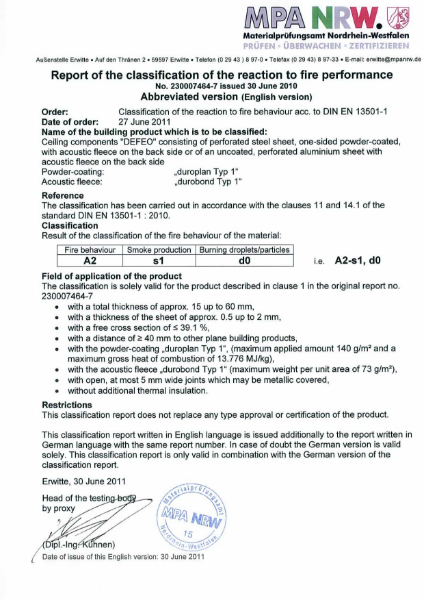

BS EN 13501-1
Certificate type

Open cell ceiling system, available in a range of linear and grid styles.

Jump to:

+44 (0)1376 501199 Website

Application

Suitable for ceiling applications.

Description

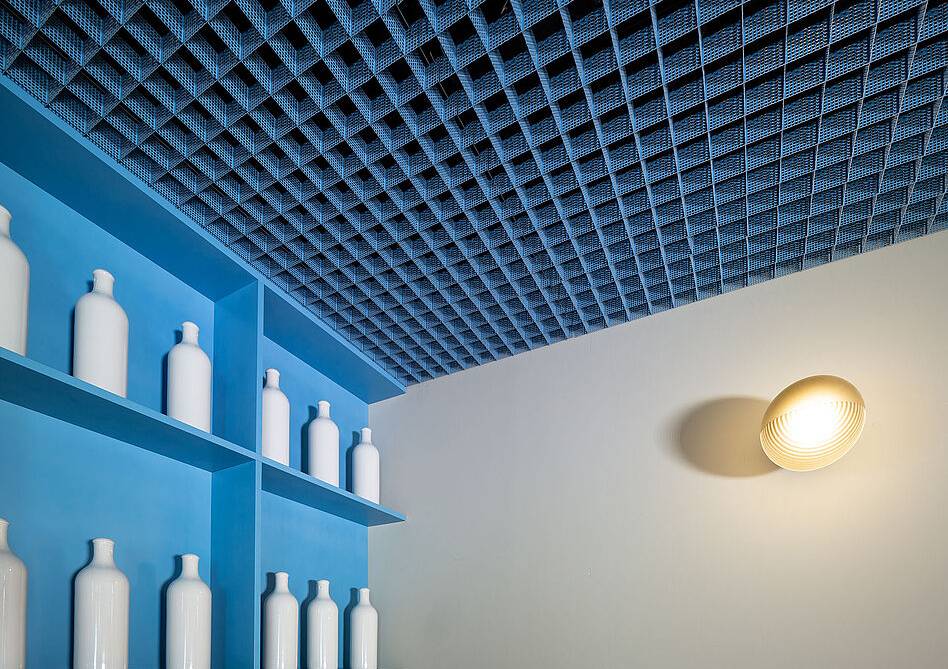

Durlum Open Cell ceiling systems are made up of 1200 x 600 mm panel modules in a range of unlined linear and grid styles, designed for optimal visual and light permeability.

Features and benefits:

Open and transparent ceilings.
Individual ceiling designs can be created, which are divided into linear, single-blade, wide-blade and multi-directional cells.
The design options are virtually unlimited, also when combined with other metal ceilings and lighting systems from Durlum.
Come in powder-coated black, white, and grey as standard but other finishes are available including anodised, metallic, and dur-Graphic print.
Suspended from U94 panel carrier profiles.
Coordinating lighting units including module plates are available for all open cell ceiling styles.

General information

Color	Other Black White Grey Beige Blue Bronze Brown Copper Cream Gold Green Ivory Pink Orange Purple Red Silver Turquoise Yellow Show more
Finish	Powder-coated Anodized
Material	Steel Aluminium
Shape	Rectangle Square Other
Length	1200 mm Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Two year

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system

Specification data - Modular suspended ceiling systems

Ceiling support	Manufacturer's standard. Guidance for specification option: U1040 primary angles running on the panel length at 1100 mm centre to centre. U1041 joiners used as required. C94 suspension clips as required U1042 wall brackets used as required. U1300, U1370 and U1372 Nonius suspension system.
Support fasteners	Manufacturer's standard. Guidance for specification option: Consult manufacturer's literature for details.
Ceiling units	STAR - Linear louvre, aluminium. Guidance for specification option: Shallow linear blade ceiling.
Barriers in ceiling void	-
Fire barriers	- Manufacturer guidance Insert requirements or omit.
Acoustic barriers	- Manufacturer guidance Insert requirements or omit.
Plenum barriers	- Manufacturer guidance Insert requirements or omit.
System accessories	Not required. LED-Downlight PUNTEO®-J85 with modular plate. Lighting. Guidance for specification option: Other lighting solutions are possible. Consult manufacturer and insert requirements.

Cell Size	Star 3 Linear Louvre - 3 x 20 mm; blade pitch: 15–40 mm. Star 9 Linear Louvre - 9 x 17.3 mm; blade pitch: ≥20 mm. Star 15 Linear Louvre - 15 x 14.3 mm; blade pitch: ≥25 mm. Manufacturer guidance Standard cell size. Secondary blades: Width x height: 9 x 22 mm. Blade pitch: 375 mm.
Panel size	1200 x 600 mm. Manufacturer guidance Panel/ module size.
Blades	Guidance for specification option: Insert requirements. Colour main blades: White, black or RAL 9006. Other colours available on request. Colour secondary blades: Black or white. Manufacturer guidance Blades colour.
Installation	Horizontal. Vertical.
Reaction to fire (to BS EN 13501-1)	Euroclass A2-s1,d0. Guidance for specification option: Surface spread of flames: to EN ISO 11925-2, A2 (Fs <150 mm within 60 seconds). Smoke production: to EN 13823, s1 (no smoke production). Flaming droplets: to EN ISO 11925-2, d0 (no flaming droplets).

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Material	Steel Aluminium
Recyclability	Guidance for specification option: No environmentally dangerous emissions occur at de-installation. Panels and aluminium profiles can be recycled where facilities exist.
