Durlum Rhombus - Expanded Metal Ceiling System

Name: Durlum Rhombus - Expanded Metal Ceiling System
Brand: LSA Projects Ltd
SKU: ry9mSjVPe3JxaAs3YKmANJ

Verified by manufacturer 2 months ago

LSA Projects Ltd

Third party certifications:

EPD
Certificate type
BS EN 13501-1
Certificate type

Expanded metal mesh ceiling system.

Jump to:

+44 (0)1376 501199 Website

Application

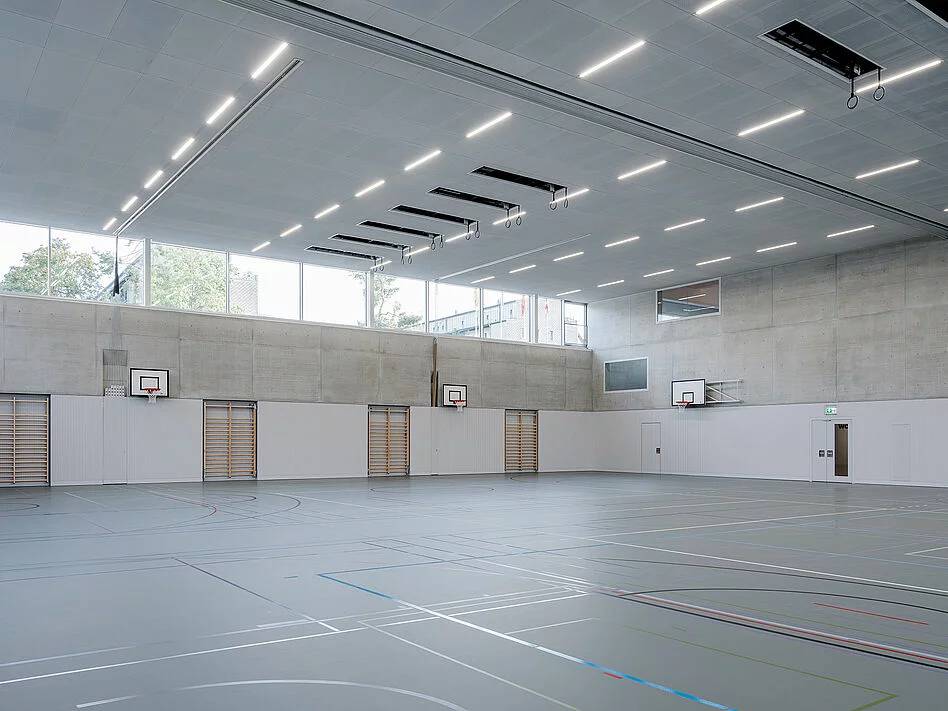

A suitable solution in various types of building, particularly whenever large, free ceiling cross sections are required.

Description

Expanded mesh ceiling solutions from Durlum are a great way to add design and acoustic control to a space. Expanded mesh can provide top level acoustic control when used with the black acoustic fleece supplied by Durlum.

The Rhombus collection from Durlum has a variety of different mounting options within their standard range to accommodate every design element. Panels can be installed in linear or grid formats as fixed or demountable suspended ceilings with specific options for corridors and independently suspended panels.

Features and benefits:

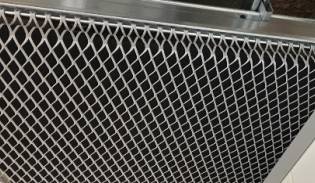

Panels are constructed of expanded mesh aluminium or steel with various edging options for installation preferences and requirements.
Finished in a range of standard and bespoke powder-coated RAL colours and metallic finishes.
Panels are primed before application of RAL powder-coating.
A range of mesh styles in a choice of material thickness.
Upwards of 50% open area on all styles.
Fire rated to Euroclass A2-s1,d0.

General information

Color	Silver Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Other Show more
Finish	Galvanized Powder-coated Metallic Gloss Anodized
Material	Steel Aluminium
Shape	Rectangle Other
Length	3000 mm Bespoke
Width	1100 mm Bespoke
Warranty description	Two year

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary Ss_25_25_75_05 Acoustic panel lining systems Ss_30_25_22_70 Raft or island suspended ceiling systems
CAWS	K13/170 Acoustic panel lining K13/170 Acoustic panel lining K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings

Specification data - Modular suspended ceiling systems

Ceiling support	S1.12 - Clip in or Hinged/ Sliding Installation. S4 - Hook-on or Hinged Installation. S5 - C Channel Linear. S6 - C Channel Cross Grid. S7 - Rail Channel. S7 Taifun - Exterior Installation. S10 - Double Hook-on Installation, dur-SOLO Type 1 - Single Panel Raft. S10 - Double Hook-on Installation, dur-SOLO - Multiple Panel Raft. S10 - Double Hook-on Installation, dur-SOLO Type 4 - Multiple Panel Raft Demountable. Manufacturer guidance Proprietary carrier grid system to suit mounting type. Consult manufacturer for details and insert requirements.
Support fasteners	Manufacturer's standard. Guidance for specification option: Consult manufacturer's literature for details.
Ceiling units	Metal mesh infill units.
Barriers in ceiling void	-
Fire barriers	- Manufacturer guidance Insert requirements or omit.
Acoustic barriers	Dur-Sonic or acoustic insulation by others.
Plenum barriers	- Manufacturer guidance Insert requirements or omit.
System accessories	Not required. Durlum black acoustic fleece. Lighting. Guidance for specification option: Insert requirements.

Perforation	M100. Guidance for specification option: 12.5 x 6 mm with 1.0 mm web; 66.6% open area. M110. Guidance for specification option: 16mm x 2mm with 1.5mm Web (62.5% open area. M210. Guidance for specification option: 25 x 16 mm with 1.5 mm web (81.2% open area. M220. Guidance for specification option: 25 x 16 mm with 2.5 mm web; 81.2% open area. M230. Guidance for specification option: 25 x 10 mm with 2.0 mm web; 60.0% open area. M260. Guidance for specification option: 28 x 12 mm with 2.0 mm web; 66.6% open area. M400. Guidance for specification option: 44 x 12 mm mesh, 3 mm web; 50% open area. M600. Guidance for specification option: 62 x 20 mm mesh, 1.5 mm web; 75% open area. Show more Manufacturer guidance Acoustic perforation.
Panel	Expanded mesh, aluminium. Expanded mesh, galvanized steel. Manufacturer guidance Panel composition/ material.
Panel finish	Powder-coated, RAL colour. Guidance for specification option: White RAL 9016 as standard. Powder coated finishes are available in a full range of RAL colours and a full scale of gloss lacquer options. Consult manufacturer for details and insert requirements. Duroplan anodized, black. Duroplan anodized, white. Duroplan anodized, natural aluminium. Duroplan anodized, custom. Guidance for specification option: Consult manufacturer for details and insert requirements.
Panel Type	Version V1 frame covered (more welds/ options). Version V2 mesh bent with frame. Version V3 Basic, framed covered (less welds large mesh only). Version V4 edge frame visible. Version V6 visible frame.
Panel size	Guidance for specification option: Insert requirement. Maximum panel size: 3000 x 1100 mm per raft module. Bespoke options available. Consult manufacturer for details.
Reaction to fire (to BS EN 13501-1)	Euroclass A2-s1,d0. Guidance for specification option: Surface spread of flames: to EN ISO 11925-2, A2 (Fs <150 mm within 60 seconds). Smoke production: to EN 13823, s1 (no smoke production). Flaming droplets: to EN ISO 11925-2, d0 (no flaming droplets).

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Material	Steel Aluminium
Recyclability	Guidance for specification option: No environmentally dangerous emissions occur at de-installation. Panels and aluminium profiles can be recycled where facilities exist.
