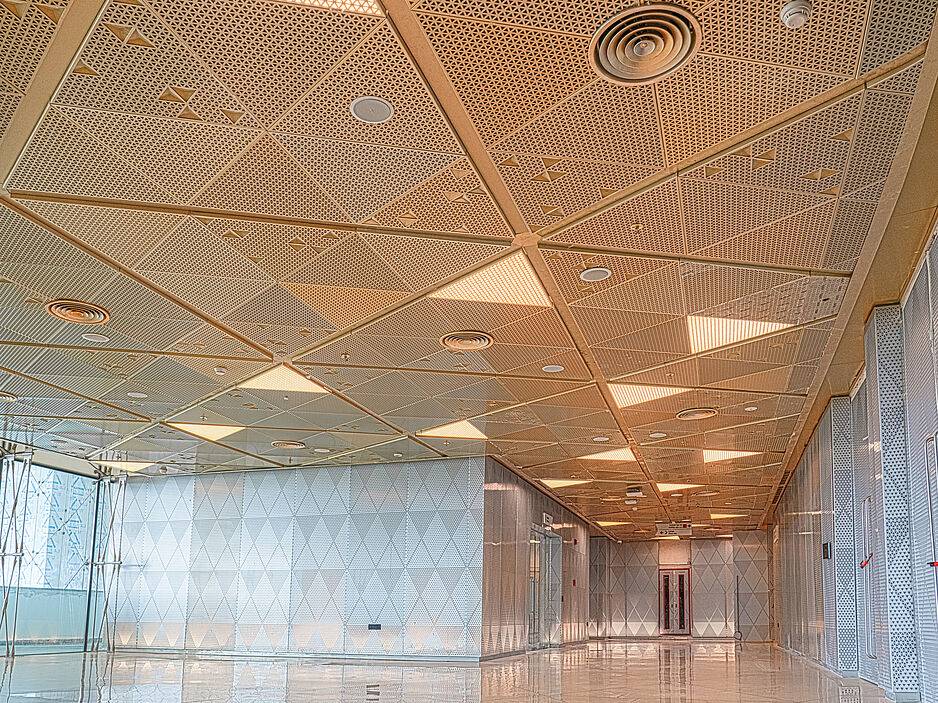

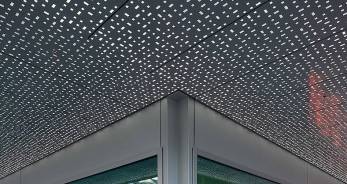

Durlum Metal Ceilings - Suspended Ceiling System

Verified by manufacturer 21 hours ago

LSA Projects Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

Perforated metal ceiling system.

Jump to:
+44 (0)1376 501199 Website

Application

A suitable solution in various types of building, particularly whenever large, free ceiling cross sections are required.

Description

Metal ceilings are a great addition to installations that need a more industrial or modern style whilst incorporating functional elements like lighting or acoustics. Durlum metal ceilings can be perforated with different perforation patterns, including the option of special perforations, ranging from perforations at Ø0.8 mm to Ø20 mm at a range of intervals, giving up to 56% open area for significant acoustic control when combined with an acoustic mineral wool core.


Features and benefits:

  • Optional integrated lighting.
  • Acoustic testing.
  • Rectangular ceiling panels.
  • Wide variety of perforation patterns available.
  • Can be provided with bonded Durlum acoustic fleece.
  • Other materials for acoustic absorption are available, such as mineral wool or foamed material.
  • Panels are constructed from aluminium or steel.
  • Finished in a range of standard and bespoke powder-coated RAL colours and metallic finishes.
  • Dur-Graphic printing available in a limited range of standard timber effects and bespoke designs.
  • Fire rated to Euroclass A2-s1,d0.

General information

Color

Silver

Beige

Black

Blue

Bronze

Show more

Finish

Galvanized

Powder-coated

Metallic

Gloss

Anodized

Material

Steel

Aluminium

Shape

Rectangle

Other

Length

3000 mm

Bespoke

Width

1100 mm

Bespoke

Warranty description

Two year

Uniclass

Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
Ss_30_25_22_70 Raft or island suspended ceiling systems

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

K40/10 Unit/ modular suspended ceilings

K40/115 Unit/ modular suspended ceiling system

Specification data - Modular suspended ceiling systems

Ceiling support

S1.12 - Clip in or Hinged/ Sliding Installation.

S4 - Hook-on or Hinged Installation.

S5 - C Channel Linear.

S6 - C Channel Cross Grid.

S7 - Rail Channel.

S7 Taifun - Exterior Installation.

S10 - Double Hook-on Installation, dur-SOLO Type 1 - Single Panel.

Manufacturer guidance

Proprietary carrier grid system to suit mounting type.

Consult manufacturer for details and insert requirements.

Support fasteners

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer's literature for details.

Ceiling units

Perforated panels.

Barriers in ceiling void

-

Fire barriers

-

Manufacturer guidance

Insert requirements or omit.

Acoustic barriers

Dur-Sonic or acoustic insulation by others.

Plenum barriers

-

Manufacturer guidance

Insert requirements or omit.

System accessories

Not required.

Bonded Durlum acoustic fleece.

Lighting.

Guidance for specification option:

Insert requirements.

Perforation

RG - Grouped Perforations.

RV - Staggered Perforations.

RD - Diagonal Perforations.

OG - Square Perforations.

LG - Slot Perforations.

Show more

Manufacturer guidance

Acoustic perforation.

Perforated panel:

  • Standard perforations are RG-L08 Pico Point, RG-L15, RV-:6 and RD-L30.
  • Consult manufacturer's literature and insert requirements.

Panel

Perforated panel, aluminium.

Perforated panel, galvanized steel.

Manufacturer guidance

Panel composition/ material.

Panel finish

Powder-coated, RAL colour.

Guidance for specification option:

  • White RAL 9016 as standard.
  • Powder coated finishes are available in a full range of RAL colours and a full scale of gloss lacquer options.
  • Consult manufacturer for details and insert requirements.

Duroplan anodized, black.

Duroplan anodized, white.

Duroplan anodized, natural aluminium.

Duroplan anodized, custom.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Show more

Panel Type

Version V1 frame covered (more welds/ options).

Version V2 mesh bent with frame.

Version V3 Basic, framed covered (less welds large mesh only).

Version V4 edge frame visible.

Version V6 visible frame.

Panel size

Guidance for specification option:

Insert requirement.

  • Maximum panel size: 1100 x 3000 mm per raft module.
  • Bespoke options available.
  • Consult manufacturer for details.

Reaction to fire (to BS EN 13501-1)

Euroclass A2-s1,d0.

Guidance for specification option:

  • Surface spread of flames: to EN ISO 11925-2, A2 (Fs <150 mm within 60 seconds).
  • Smoke production: to EN 13823, s1 (no smoke production).
  • Flaming droplets: to EN ISO 11925-2, d0 (no flaming droplets).

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Recyclability

Guidance for specification option:

No environmentally dangerous emissions occur at de-installation. Panels and aluminium profiles can be recycled where facilities exist.

Third party certifications

Third party certifications

EPD

EPD

Durlum Aluminium EPD

BS EN 13501-1

BS EN 13501-1

Durlum Panels Fire Test Report

EPD

EPD

Durlum Steel EPD
