Durlum Loop - Suspended Ceiling System

Name: Durlum Loop - Suspended Ceiling System
Brand: LSA Projects Ltd
SKU: aWYhPMPKCKbq4WVGiiBK8M

Verified by manufacturer 1 month ago

LOOP® TYP 2 - Hook On System

LSA Projects Ltd

Third party certifications:

EPD
Certificate type
BS EN 13501-1
Certificate type

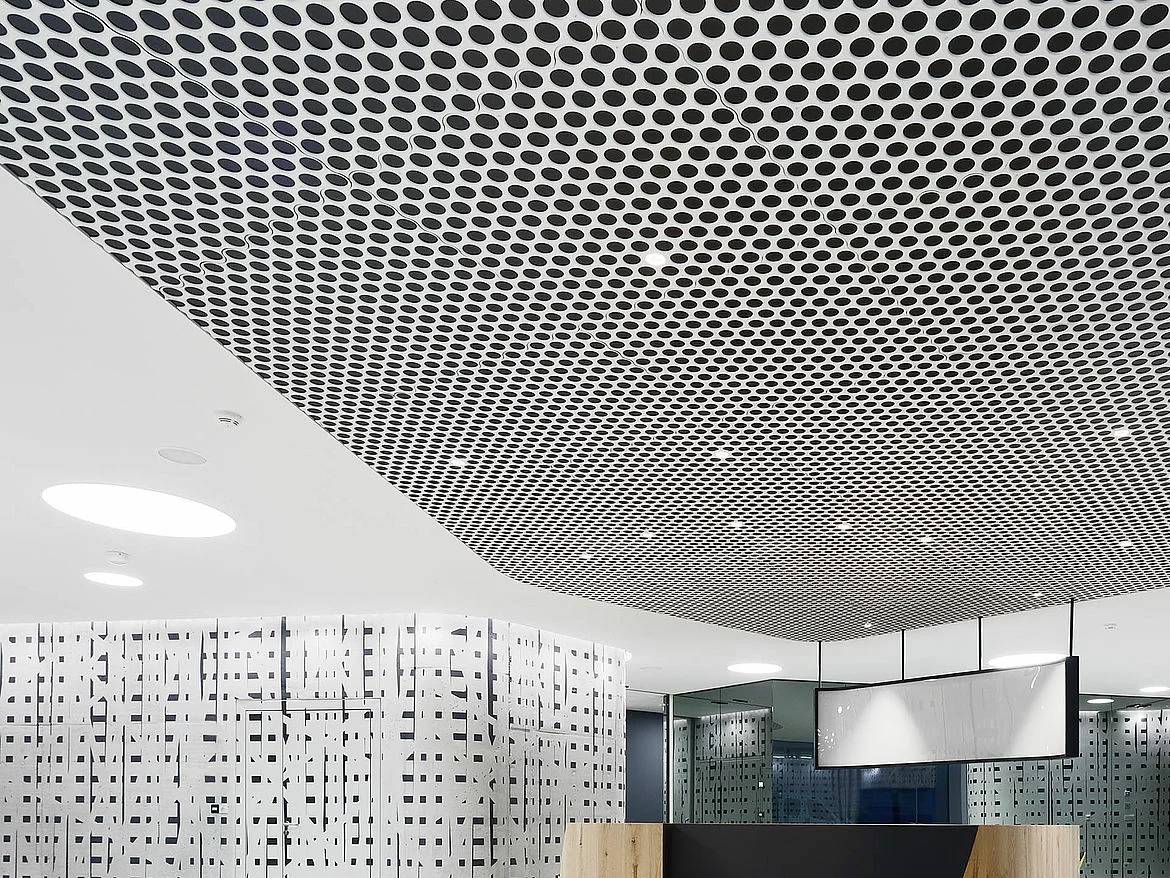

The LOOP ceiling system is a metal ceiling characterised by distinctive round openings.

Jump to:

+44 (0)1376 501199 Website

Application

Suitable for ceiling applications.

Description

Durlum Loop is a jointless ceiling panel style with interlocking curved panel edges. Loop panels have more than 50% open area created by the large perforation design. Arranged in rows, round openings define the jointless ceiling image and provide optimum gearing of the individual ceiling elements with their soft rounded contours.

Features and benefits:

Curved profile - jointless ceiling panel with interlocking curved panel edges.
Ceiling pattern appears endless with its concealed joints.
5 mm deep openings create a three-dimensional visual effect for the system and support the screening of the ceiling void.
Available for two types of installation: LOOP® TYP 2 - hook on installation and LOOP® TYP 3 - magnetic installation.
LOOP® TYP 2 panels are installed using a C-Profile system to suspend panels from a floating grid system.
LOOP® TYP 3 panels are installed magnetically (with supporting safety chains) to a solid (or perforated) sub-ceiling supplied system by Durlum.
Finished using RAL colour powder-coating or using Duroplan anodization.
Compatible with the Punteo spotlight range, with bulbs designed to fin inside individual perforations.

General information

Color	Other Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Show more
Finish	Powder-coated Anodized
Material	Aluminium Steel
Shape	Circle Rectangle Other
Length	1124.23 mm 1115.44 mm Bespoke
Width	1004.25 mm 966 mm Bespoke
Warranty description	Two year

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system

Specification data - Modular suspended ceiling systems

Ceiling support	LOOP® TYP 2 hook on installation. Guidance for specification option: U1040 L-rails along the width of the panel at 1200 mm centre to centre. U1042 and U1041 starting and joining pieces for L-rails. Hook-on C Profile with Fix-Clips along parallel edges and centre line of panels (nine pieces per panel). Starting and joining pieces for C-channels. U1300, U1370 and U1372 Nonius suspension system.
Support fasteners	Manufacturer's standard. Guidance for specification option: Consult manufacturer's literature for details.
Ceiling units	LOOP® TYP 2 ceiling panel.
Barriers in ceiling void	-
Acoustic barriers	dur-SONIC® TUBE elements. Insulation by others. Guidance for specification option: Insert requirements.
System accessories	Not required. PUNTEO®-J60 downlights. LUMEO®-R LED area lighting.

Panel finish	Powder-coated, RAL colour. Guidance for specification option: White RAL 9016 as standard. Powder coated finishes are available in a full range of RAL colours and a full scale of gloss lacquer options. Consult manufacturer for details and insert requirements. Duroplan anodized, black. Duroplan anodized, white. Duroplan anodized, natural aluminium. Duroplan anodized, custom. Guidance for specification option: Consult manufacturer for details and insert requirements. Dur-Grphic, timber effect. Dur-Graphic, bespoke design. Guidance for specification option: Consult manufacturer for details and insert requirements. Show more
Panel size	1124.23 x 1004.25 mm.
Module size	1115.44 x 966 mm.
Joint width	2 mm.
Perforation	Ø60 mm at 80.5 mm centre to centre (on width). 139.5 mm centre to centre (on length).
Reaction to fire (to BS EN 13501-1)	Euroclass A2-s1,d0. Guidance for specification option: Surface spread of flames: to EN ISO 11925-2, A2 (Fs <150 mm within 60 seconds). Smoke production: to EN 13823, s1 (no smoke production). Flaming droplets: to EN ISO 11925-2, d0 (no flaming droplets).

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Recyclability	Guidance for specification option: No environmentally dangerous emissions occur at de-installation. Panels and aluminium profiles can be recycled where facilities exist.
