Verified by manufacturer 2 months ago

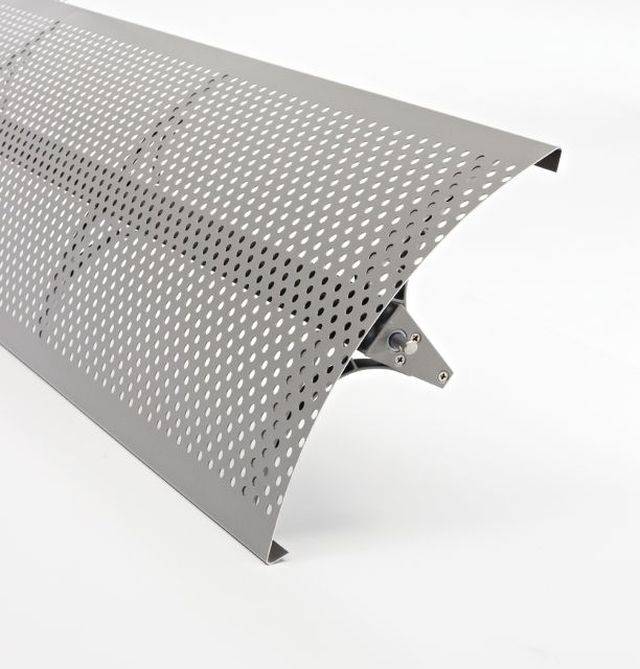

Solar shading with a fin-shaped louvre blade.
Solar shading.
Solar shading with large fin-shaped louvre blades, providing an urban design. In addition to the standard perforation, it is also available in other perforations on request. The electrically adjustable system can be installed horizontally as well as vertically.
Features and benefits:
Color | Manufacturer guidanceRange of colours available either anodized or RAL. |
Finish | Anodized Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder-coated Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60 µm, standard RAL colours with 70% gloss. |
Material | Aluminium Guidance for specification option: EN AW – 6060 T66. |
Warranty description | Ten year Guidance for specification option: Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period. |
Uniclass | |
CAWS | L10/670 Brises-soleil |
Product range |
Support arms | |
Material | Aluminium.Guidance for specification option: EN AW – 6060 T66. |
Finish | Anodized.Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60 µm, standard RAL colours with 70% gloss. |
Colour | Anodized.RAL.Guidance for specification option: Standard RAL colours 70% gloss. |
Array louvre blades | |
Profile | Curved. |
Pitch | Adjustable.Guidance for specification option: Specific project-related. |
Material | Aluminium.Guidance for specification option: EN AW – 6060 T66. |
Finish | Anodized.Guidance for specification option: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60 µm, standard RAL colours with 70% gloss. |
Colour | Anodized.RAL.Guidance for specification option: Standard RAL colours 70% gloss. |
Height | 115 mm. |
Support profile | 60/100. Guidance for specification option: Fixation directly to the supporting construction. |
Operation | Motor. |
Voltage | 230 V a.c., 50 Hz. |
Current | 0.55 A. |
TotalWattage | 126 W. |
Ingress protection | IP65. |
MaximumCableLength | 2 Guidance for specification option: Actuator cable length: 2 m. |
Blade width | 500 mm. 600 mm. |
