DucoSlide Slimframe 5/40: 40Z

Verified by manufacturer 3 months ago

Duco Ventilation & Sun Control NV Third party certifications:
  • EPD

    EPD

    Certificate type

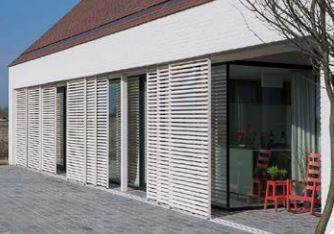

DucoSlide SlimFrame is a permanent external solar shading system with sliding panels.

Jump to:
BOS
+32 58 33 00 66 Website

Application

Exterior frame mounted Brise-Soleil units.

Description

A permanent external solar shading system with sliding panels. Here, the louvre blades are installed at a fixed angle between the aesthetically refined and discrete side profiles.


Features and benefits:

  • Maximum degree of privacy.
  • Various louvre blade sizes.
  • Manually or electronically operated.
  • DucoSlide SlimFrame with 5/40 frame profile and fixed louvre blades.
  • Single, symmetrical or telescopic sliding systems.

General information

Color

-

Manufacturer guidance

Range of colours available in either RAL or anodized.

Finish

Anodized

Guidance for specification option:

Anodised in natural as standard (15-20 µm) (VB6/A20/VOM1).

Powder-coated

Guidance for specification option:

Enamelled polyester powder coating (60-80 µm).

Material

Aluminium

Guidance for specification option:

Aluminium extrusions, Al Mg Si 0.5.

Warranty description

Ten year

Guidance for specification option:

Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period.

Uniclass

Pr_30_59_09_18 Composite brise-soleil unitsPrimary

CAWS

L10/55 Brises-soleil

L10/670 Brises-soleil

Specification data - Composite brise-soleil units

Support arms

-

Material

Aluminium.

Finish

Anodized.

Guidance for specification option:

Anodised in natural as standard (15-20 µm) (VB6/A20/VOM1).

Powder coated.

Guidance for specification option:

Enamelled polyester powder coating (60-80 µm).

Colour

Anodized.

RAL.

Guidance for specification option:

Insert RAL number.

Array louvre blades

-

Profile

'Z' profile.

Pitch

48°.

Guidance for specification option:

Inclination.

Material

Aluminium.

Finish

Anodized.

Guidance for specification option:

Anodised in natural as standard (15-20 µm) (VB6/A20/VOM1).

Powder coated.

Guidance for specification option:

Enamelled polyester powder coating (60-80 µm).

Colour

Anodized.

Guidance for specification option:

Anodised in natural as standard.

RAL.

Guidance for specification option:

Enamelled polyester powder coating.

Front rail

-

Material

Extruded aluminium.

Guidance for specification option:

Al Mg Si 0.5.

Finish

Anodized.

Guidance for specification option:

Anodised in natural as standard (15-20 µm) (VB6/A20/VOM1).

Powder coated.

Guidance for specification option:

Enamelled polyester powder coating (60-80 µm).

Colour

Anodized.

Guidance for specification option:

Anodised in natural as standard.

RAL.

Guidance for specification option:

Enamelled polyester powder coating.

Track system

Single sliding system.

Guidance for specification option:

Independently operated individual panels.

Symmetrical sliding system.

Guidance for specification option:

Two linked panels that slide apart or together symmetrically.

Telescopic sliding system.

Guidance for specification option:

Two or three panels linked together in succession that extend telescopically.

Manufacturer guidance

Sliding system.

Operation

Manual.

Motor.

Guidance for specification option:

  • 230 VAC, 50 Hz.
  • Lmax: 2,3 Aac.
  • Pmax: 40 W.

Blade pitch

110 mm.

Side profile

5 x 40 mm.

Height

85 mm.

Manufacturer guidance

Blade

Sustainability data

Recyclability

-

Manufacturer guidance

Metals widely recycled.

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

EPD

EPD

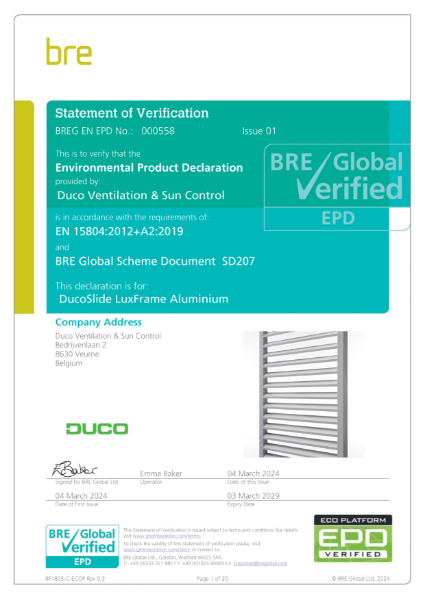

EPD 000558 DucoSlide Luxframe Alu
