Solar shading with sleek, rectangular louvre blades.
Solar shading.

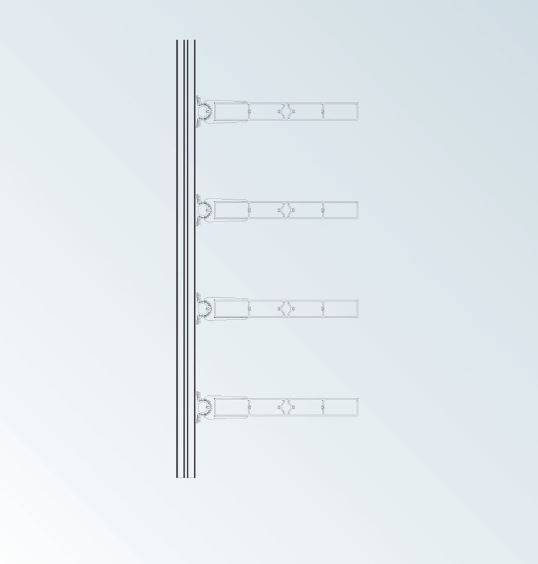

Solar shading available with fixed louvre blades, fixed by means of the patented Multifit system. This system is composed of one base and a fork, allowing to adjust the blade in different angles of inclination in mounting. The products are mounted on the spot in the supporting construction.
Features and benefits:
Color | Manufacturer guidanceRange of colours available in either anodized or RAL. |
Finish | Anodized Guidance for specification option: Anodized: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder-coated Guidance for specification option: Powder coated: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Material | Aluminium Guidance for specification option: EN AW – 6063 T66. |
Shape | Rectangle |
Width | 200 mm |
Height | 48 mm |
Warranty description | Ten year Guidance for specification option: Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period. |
Uniclass | |
CAWS | L10/55 Brises-soleil L10/670 Brises-soleil |
Support arms | |
Material | Aluminium.Guidance for specification option: EN AW – 6063 T66. |
Finish | Anodized.Guidance for specification option: Anodized: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Powder coated: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Colour | Anodized.RAL.Guidance for specification option: Standard RAL colours 70% gloss. |
Array louvre blades | |
Profile | Rectangular. |
Pitch | Manufacturer guidanceDepends on the type of blade and the inclination. |
Material | Aluminium.Guidance for specification option: EN AW – 6063 T66. |
Finish | Anodized.Guidance for specification option: Anodized: Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing). Powder coated.Guidance for specification option: Powder coated: Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss. |
Colour | Anodized.RAL.Guidance for specification option: Standard RAL colours 70% gloss. |
Height | 48 mm. Manufacturer guidanceBlade height. |
Fork | Multifit 120. Guidance for specification option:
|
Angle of inclination | Variable. Guidance for specification option: Variable inclination angle, the gearing between the 2 components provides 11 settings. The spacing between two louvre blades is dependent on the blade type. |
Side plates | Standard. Guidance for specification option: Aluminium Al Mg 3 G22 sheet, laser-cut, 3 mm thick. |
Louvre size | 48 mm. Guidance for specification option: Blade height. |
Blade width | 400 mm. |
Recyclability | Guidance for specification option: Metals widely recycled. |
