DucoSun 150D Underslung

Verified by manufacturer 3 months ago

Duco Ventilation & Sun Control NV Third party certifications:
  • EPD

    EPD

    Certificate type

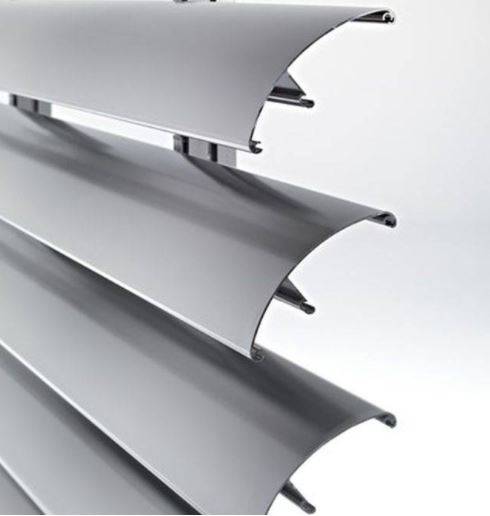

Solar shading with elliptical D-shaped louvre blades.

Jump to:
+32 58 33 00 66 Website

Application

Solar shading.

Description

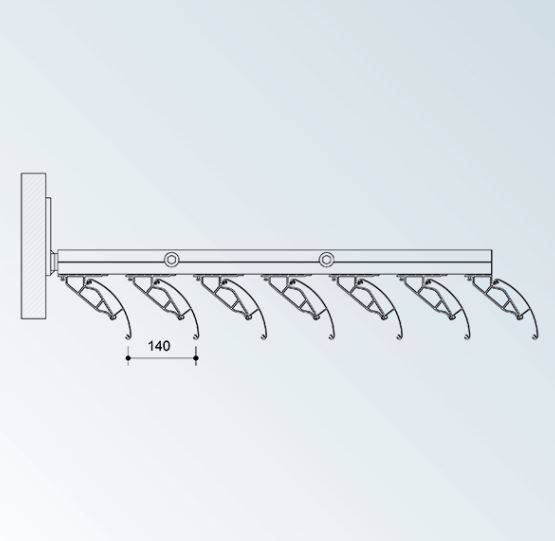

Permanent external solar shading system. 150 D Series solar shading systems have their aluminium blades below the support profiles at a fixed 60 degree blade mounting angle. All fascia profiles are available in a wide range of finishes. Overhang-dependent, the systems are fixed to the façade not just with bracketry, but also with struts.


Features and benefits:

  • Available in louvre widths of 150 mm.
  • Simple component system.
  • Louvre blades with elliptical D-shaped design.
  • Quick assembly due to the patented 'Slide-Click' system.
  • Large span possible.
  • Specific assembly application for any situation.
  • Can be finished with end plates.

General information

Color

-

Manufacturer guidance

Range of colours available in either anodized or RAL.

Finish

Anodized

Guidance for specification option:

Anodized in natural as standard (15-20 µm) (VB6/A20/VOM1).

Powder-coated

Guidance for specification option:

Enamelled polyester powder coating (60-80 µm).

Material

Polyamide

Steel

Aluminium

Shape

Rectangle

Warranty description

Ten year

Guidance for specification option:

Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period.

Uniclass

Pr_30_59_09_18 Composite brise-soleil unitsPrimary

CAWS

L10/55 Brises-soleil

L10/670 Brises-soleil

Specification data - Composite brise-soleil units

Support arms

-

Material

Aluminium.

Finish

Anodized.

Guidance for specification option:

Anodized in natural as standard (15-20 µm) (VB6/A20/VOM1).

Powder coated.

Guidance for specification option:

Enamelled polyester powder coating (60-80 µm).

Colour

Anodized.

RAL.

Guidance for specification option:

Standard RAL colours with 70% gloss.

Array louvre blades

-

Profile

'D' shaped.

Pitch

60°.

Material

Aluminium.

Guidance for specification option:

Al Mg Si 0.5.

Finish

Anodized.

Guidance for specification option:

Anodized in natural as standard (15-20 µm) (VB6/A20/VOM1).

Powder coated.

Guidance for specification option:

Enamelled polyester powder coating (60-80 µm).

Colour

Anodized.

RAL.

Guidance for specification option:

Standard RAL colours with 70% gloss.

Blade holders

Black.

Grey.

Manufacturer guidance

Plastic, polyamide PA 6.6, fibreglass reinforced, UV colourfast.

Wall plate

670/110/160.

Guidance for specification option:

Note: specific wall plates in line with project or customer requirements can be used. Consult manufacturer.

Manufacturer guidance

Steel, QSTE 380.

Support profile

30/50 type B.

30/78.

Manufacturer guidance

Aluminium extrusions, Al Mg Si 0.5.

Support profile

30 mm.

Manufacturer guidance

Width.

Thickness

2 mm.

Manufacturer guidance

Support profile thickness.

End treatment

Plastic filler - black.

Plastic filler - grey.

Decorative profile 90 round.

Guidance for specification option:

Aluminium extrusions. 90 mm high. Profile thickness 2 mm.

Orientation

Horizontal.

Blade width

150 mm.

Sustainability data

Recyclability

-

Manufacturer guidance

Metals widely recycled.

Third party certifications

Third party certifications

EPD

EPD

EPD 000561 DucoSun Underslung fixed
