ADUR10A - Adur - 1000 x 1000 mm
ADUR10A - Adur - 1000 x 1000 mm

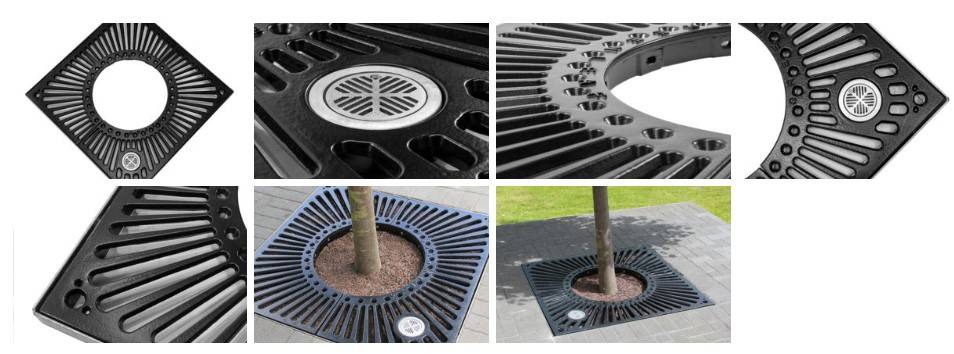

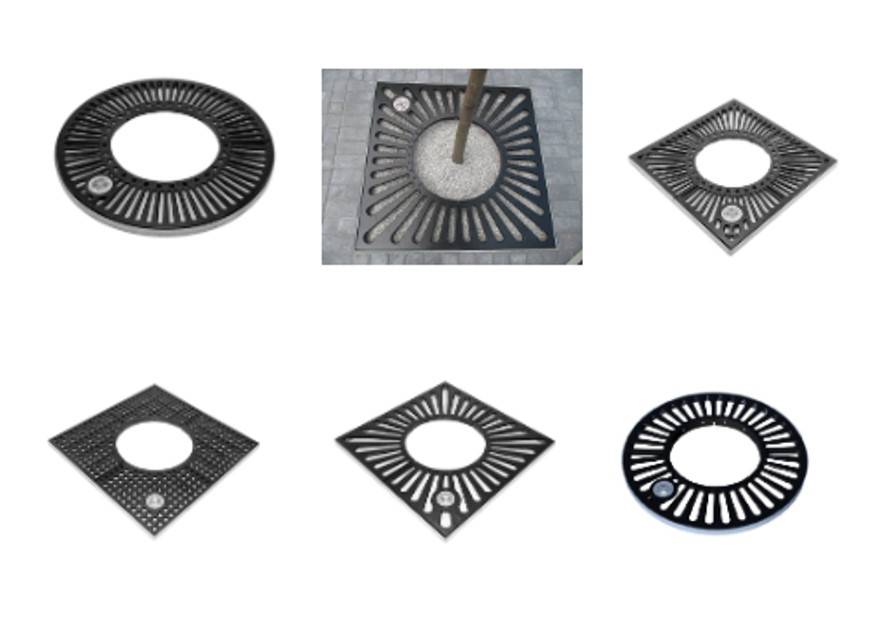

Fully integrated ductile iron tree grille systems for prevention of soil compaction, supplied with an outer edge frame and inner fixing ring with irrigation inlet as standard.
Application
Urban tree planting applications.
Description
Metal tree grilles and frames are available in a wide range of sizes and finishes. Can be specified as part of the Arborsystem package incorporating vertical guard, root management, irrigation and uplighter integration.
Features:
- Heavy duty galvanized support frame.
- Power coated cast ductile iron segments.
- Integrated irrigation system.
- Anti-theft lugs.
- Stainless steel fixings.
- Fully compatible / integrates with GBU below ground systems.
Benefits:
- Prevents compaction of soil.
- Enables gaseous exchange and water to freely access rooting area.
- Can be disassembled if needed for major tree maintenance.
- Design and built to be strong enough for vehicular overrun.
General information
Color | Black Guidance for specification option: RAL 9005. Other Guidance for specification option: Full range of RAL colours available on request. |
Finish | Galvanized Guidance for specification option: Frame hot dip zinc galvanized. Powder-coated Guidance for specification option: Cast iron segments double coat polyester powder-coat. |
Material | Iron Guidance for specification option: Cast ductile iron segments. |
Shape | Circle Square |
Length | 1000 mm 1200 mm 1500 mm |
Width | 1000 mm 1200 mm 1500 mm |
Height | 50 mm Guidance for specification option: Outer depth of the grille. |
Warranty description | Ten year |
Uniclass | |
CAWS | Q50/37 Tree grilles Q50/262 Tree grilles Q10/305 Tree grilles and surrounds |
Specification data - Tree grilles
Material | Cast iron. |
Finish | Polyester powder-coated. |
Colour | Black.Other. |
Shape | Square. |
Size | 1000 x 1000 mm. |
Internal aperture | 500 mm. |
Accessories | Not required.Spare fixing kit.Guard to grille fixing pack.Manufacturer guidanceAvailable on request |
Components | Galvanized support frame, powder-coated grille segments, cast aluminium RootRain irrigation inlet, perforated pipe RootRain irrigation system, stainless steel fixings. Manufacturer guidanceAll included |
Load capacity | 1.5 tonne (maximum) slow moving wheel load. |
Options | Not required. Heel safe/ DDA. Guidance for specification option: Bespoke tree grille design consultancy available HGV loading. Guidance for specification option: Bespoke tree grille design consultancy available Slip resistance. Guidance for specification option: Bespoke tree grille design consultancy available Alternative colours. Guidance for specification option: Full range of RAL colours and alternative finishes available, please consult manufacturer or insert requirements Manufacturer guidanceConsult manufacturer and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Iron Guidance for specification option: Cast ductile iron segments. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceGBU target: Carbon Neutral from 2020. |
Recyclability | 100% recyclable |
Expected Life | Lifetime |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 4 |
Literature

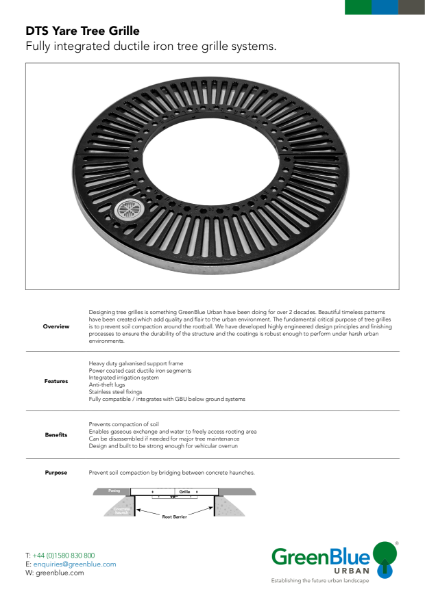

GBU DTS Avon Tree Grille Datasheet
GBU DTS Adur Tree Grille Datasheet

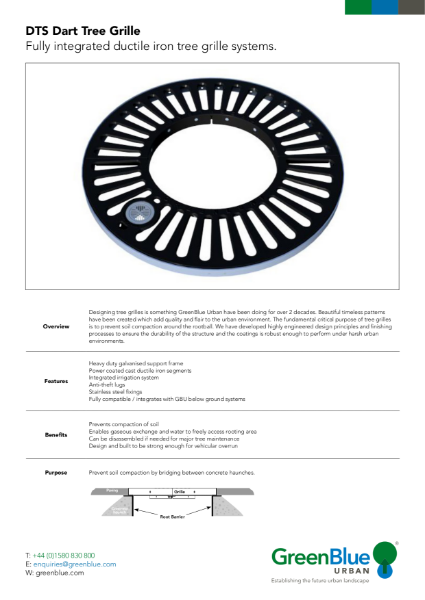

GBU DTS Dart Tree Grille Datasheet

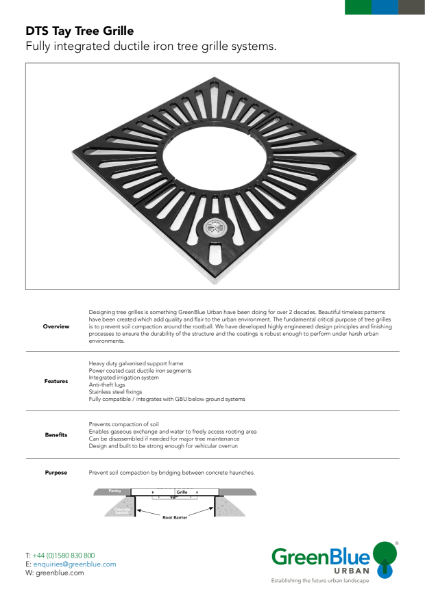

GBU DTS Tay Tree Grille Datasheet
