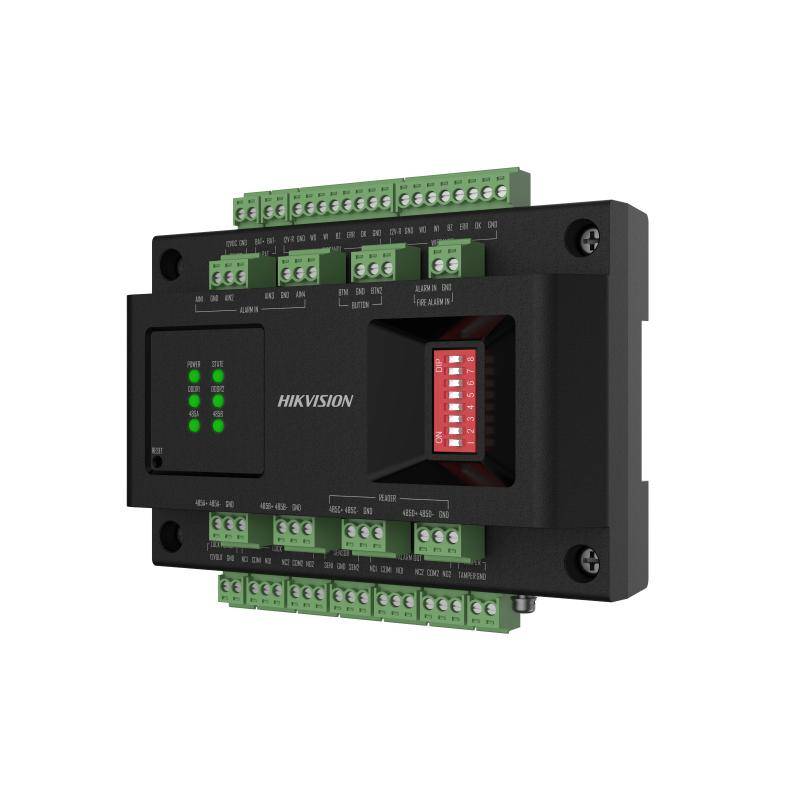

DS-K2M002X Electronic Access Control - Door Controller - Access Module
Verified by manufacturer 3 days ago
Access module for controlling two doors with RS-485 communication and card reader support.
Application
Used for controlling doors and communicating with access controllers in security systems. Supports card reader integration and system stability features.
Description
Access module used to control doors and communicate with access controller via RS-485. It also supports the card reader's single-point fault detection and redundant processing functions to ensure the stability of the system.
Features and benefits:
- Supports two-door control and connection with access controller via RS-485.
- Connects with card reader via RS-485 (OSDP) or Wiegand protocols.
- Supports battery charging and discharging.
- Supports indicators for power status, communication status, running status, and door status.
General information
Color | Black |
Material | Plastic |
Shape | Rectangle |
Length | 43 mm Guidance for specification option: Depth. |
Width | 124 mm |
Height | 103.9 mm Guidance for specification option: Overall. |
Warranty description | Five year |
Uniclass | |
CAWS | W90/363 Access control units |
SKU Code | DS-K2M002X |
Specification data - Access control units
Classification data | |
Type of operation | Networked. |
Number of doors per controller | Two. |
Communication interface | Four x alarm input; two x alarm output; one x TAMPER; four x RS-485; two x Wiegand. Guidance for specification option: Consult manufacturer's literature for details. |
Visual indication | Six indicators: one for indicating power status; one for running status; two for communication status; two for door status. |
Interfaces | |
Door lock relays | Two. |
Door status monitoring | Two. |
Readers | Two. Guidance for specification option: Linked card reader capacity: four x RS-485 (OSDP protocol); two x Wiegand. |
Request-to-exit buttons | Two. |
Rated operational voltage (Ue) | 12 V d.c. Guidance for specification option: ±15%. |
Rated operational current (In) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Battery backup | |
Battery location | Guidance for specification option: Supports backup battery access, charging and discharging are available. Insert requirements or omit. |
Control features | |
Anti-passback | Supported. |
Enclosure | |
Material and finish | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Colour | Black. |
Accessories | Guidance for specification option: Compatible with multiple Hikvision door control products, consult manufacturer for options and insert requirements or specify separately. |
Properties | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Operating system | MCU. |
Power consumption | ≤50 W. |
Working temperature | -10 to +55°C. |
Humidity | 0–90% (non-condensing). |
Installation | Guide rail. |
Sustainability data
Material | Plastic |
Literature

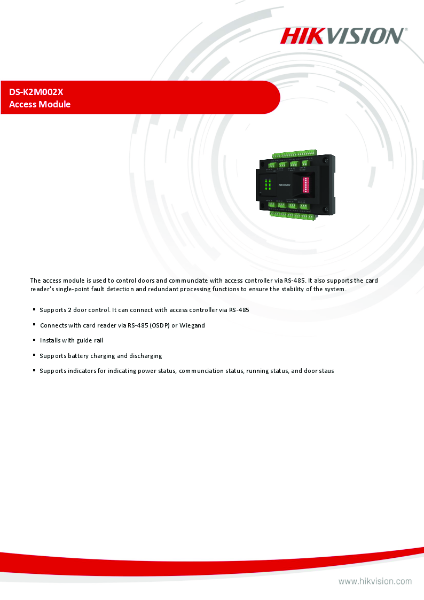

DS-K2M002X - Product Data Sheet
