DryKlad® Datona Visible Fix

Guidance for specification option:

Available in 50–250 mm thicknesses. Consult manufacturer for details and insert requirements.

Guidance for specification option:

Brackets

Dryklad Brackets are a lightweight, durable and versatile solution for facade installations. Manufactured from high-quality aluminum, they're designed to offer excellent compatibility with a range of facade finishes. The brackets are engineered to meet rigorous industry-leading standards, ensuring safety and performance in even the most demanding of environments.

• Material: Aluminum 6060 Grade
• Dimensional Tolerances: EN 12020-2 / EN 755 – from 3 to 9mm
• Elongation: 6% EN 755-2
• Ultimate Tensile Strength: 215 N/mm2 EN 755-2
• Tensile Yield Strength: 170 N/mm2 EN 755-2
• Fire Classification: EN 13501-1 A1
• Weldability: 1 Weldability from Class I EN 1999-1-1
• Bendability: Bendability Class B3 – B4 EN 15088
• Fatigue Strength: Existing Alloys Classes 1 EN 1999-1-1, New Alloys Class 111 EN 1999-1-3
• Dangerous (regulated) substances: NPD EN 573-3
• Durability (against corrosion): General Class B EN 1999-1-1; Organic coating of coated sheets and strips NPD EN 1936
• CWCT Certificate No. 2019/92
• Vinci Technology Centre Certificate No: N950-19-17720
• EOTA EAD 090062-00-0404 Certificate No: T9 64621

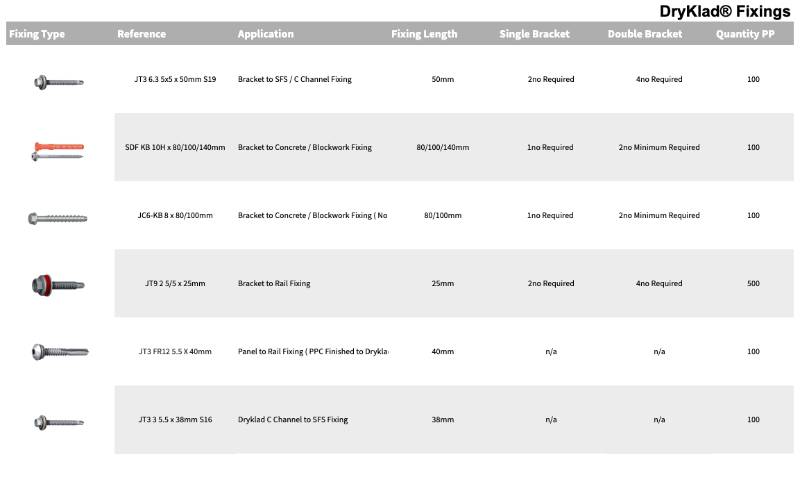

Consult manufacturer for details and insert requirements.

DRYKLAD A2 Isolator

The DryKlad A2 Isolator uses a high performing aerogel substrate and incorporates non-compression embedded elements. This retains its high thermal performance through non-compression. Importantly, when installed, the DryKlad A2 Isolator performs to its intended performance criteria and has a design life of 60 years. The thickness of the insulation in the ventilated cavity can be reduced, but still meet the required U value.Due to the profile of DryKlad Brackets, the DryKlad A2 Isolator can only be used with a DryKlad bracket in order to comply with BBA certification.

• Thermal Performance to EN12667 0.0155 W/mK
• Reaction to Fire EN 13501-1:2019 A2 – s1 – d0
• Short term water absorption <0.04 kg/m2 (partial Immersion)
• Long term water absorption <0.10 kg/m2 (partial Immersion

DRYKLAD Standard Isolator

Polyamide 6 (PA 6) is a type of nylon, and is the standard product of thermal insulator pads. These pads provide insulation and prevent heat transfer between different elements of a building. PA 6 is known for its thermal stability, mechanical strength, and resistance to wear and abrasion. The pads are placed on the toe of the carrier console by pushing and clicking. Using a fastener (bolt, anchor, etc.) depending of the type of foundation (concrete, brick, etc.), the two elements are fastened to the construction.

• Thermal Performance to EN12667 0.120 W/mK
• Reaction to Fire EN 13501-1:2019 E

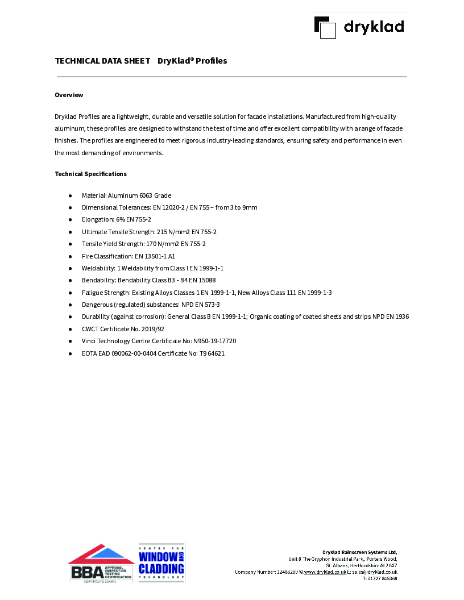

Profiles

Dryklad Profiles are a lightweight, durable and versatile solution for facade installations. Manufactured from high-quality aluminum, these profiles are designed to withstand the test of time and offer excellent compatibility with a range of facade finishes. The profiles are engineered to meet rigorous industry-leading standards, ensuring safety and performance in even the most demanding of environments.

Guidance for specification option:

CWCT certified aluminium ‘Datona’ exterior panels complement the Dryklad framing system, bringing high performance and a quality finish to your project’s façade.

Crafted from High-Quality Solid Aluminium:

• Ensures exceptional durability and resistance to various environmental factors.
• Available in 1050-H14 or J57S grade, providing flexibility in material selection.

Thickness Options:

• Offers two thickness options: 2.0 mm and 3.0 mm.
• Allows customization based on project requirements, ensuring optimal performance and structural integrity.

Physical Characteristics:

• Weight fluctuates depending on thickness and alloy grade.
• Approximate density of 2.7 g/cm³.
• Available in a spectrum of standard and bespoke colours.

Mechanical Properties:

• Proof Stress: 85 MPa
• Tensile Strength: 100 MPa
• Elongation: 12%
• Shear Strength: 60 MPa
• Hardness Vickers: 30 HV

Fire Resistance:

• A2 fire classification as per EN13501-1 standards, guaranteeing non-combustibility and enhanced fire protection.

Cassette Types:

Flat Cassette:

• Offers a modern, sleek aesthetic, ideal for contemporary architectural designs.
• Seamless appearance eliminates visual interruptions, resulting in a cohesive and elegant facade.

Corners:

• Facilitates seamless transitions between different sections of the facade.
• Ensures a uniform and visually appealing exterior without any abrupt changes.

Perforated Options (with Backing Tray):

• Introduces visual interest with dynamic patterns and intricate designs.
• When combined with a backing tray, provides additional structural support for enhanced durability.
• Particularly suitable for projects seeking a visually captivating and structurally sound facade.

Size:

240 mm x 540 mm x 3 mm:

• Ideal for smaller-scale projects where versatility is a primary consideration.
• Offers flexibility in design and installation.
• Serviceability: +2400/-2400 pascals & Safety: +3600/-3600 pascals for all panel sizes.

3000 mm x 1200 mm x 3 mm:

• Designed specifically for larger-scale projects.
• Allows for efficient coverage of expansive facade areas, reducing the need for multiple panels.
• Serviceability: +2400/-2400 pascals & Safety: +3600/-3600 pascals for all panel sizes.

Consult manufacturer for details and insert requirements.

Guidance for specification option:

DRK-Ext 160 x 100 mm

Guidance for specification option:

DRK-Ext 90 x 100 mm

Guidance for specification option:

DRK-Ext 160 x 150 mm

Guidance for specification option:

DRK-Ext 90 x 150 mm

Guidance for specification option:

Galvanized Steel 1.5 mm/ 2 mm/3 mm.

• Double Variant: 25 x 200 x 25 mm (External Face).

Forming Quality

• DX51D : Bending and profiling quality
• This grade is suitable for some profiles and for difficult bending operations.

Electrical Resistivity

0.0282 x10-6 Ω .m

Fire Classification

A1 to EN 13501-1

Mechanical properties : EN 10142 : 2000

• 270-500 mm Min - Max
• Rm (N/mm²)
• 22 - A802 (%)

Coating

• Standard coating: Z275
• This is the standard coating classification and the most commonly specified coating for general applications.

Chemical composition: EN 10142 : 2000

Grade C Mn P S Al N Ti

DX51D+Z/+ZF 0.100 0.600 0.030 0.035 0.025 0.010 0.005

Consult manufacturer for details and insert requirements.

Guidance for specification option:

Galvanized Steel 1.5 mm/ 2 mm/3 mm.

• Single Variant: 25 x 100 x 25 mm (External Face).

Forming Quality

• DX51D : Bending and profiling quality
• This grade is suitable for some profiles and for difficult bending operations.

Electrical Resistivity

0.0282 x10-6 Ω .m

Fire Classification

A1 to EN 13501-1

Mechanical properties : EN 10142 : 2000

• 270-500 mm Min - Max
• Rm (N/mm²)
• 22 - A802 (%)

Coating

• Standard coating: Z275
• This is the standard coating classification and the most commonly specified coating for general applications.

Chemical composition: EN 10142 : 2000

Grade C Mn P S Al N Ti

DX51D+Z/+ZF 0.100 0.600 0.030 0.035 0.025 0.010 0.005

Consult manufacturer for details and insert requirements.
