Description

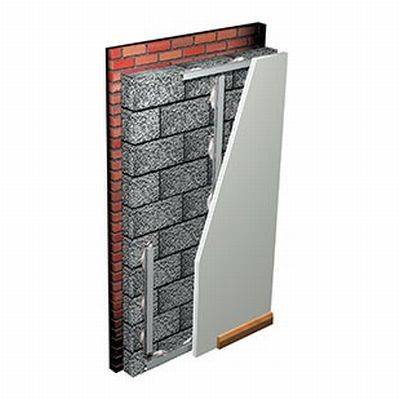

Drywall masonry lining system that provides a simple and effective technique for drylining brick, block and concrete walls in both new-build and refurbishment work.

The system facilitates the fixing of Gyproc plasterboards or ThermaLine laminates to Gypframe channels, which are adhesive bonded to the wall. Gyproc ThermaLine laminates are fixed to the channels using a combination of Gyproc Sealant and Gyproc Drywall screws to minimize thermal bridging.

Performance:

  • Sound insulation, Rw: 56–60 dB.
  • Thermal performance, U-value: 0.28–0.60 W/m²K.

General information
Specification data
Product Reference

DriLyner MF

Furring centres

600 mm

400 mm

For wall tiling areas.

Linings

1 x 9.5 mm Gyproc WallBoard

1 x 12.5 mm Gyproc WallBoard

1 x 12.5 mm Gyproc WallBoard TEN

1 x 9.5 mm Gyproc WallBoard DUPLEX

1 x 12.5 mm Gyproc WallBoard DUPLEX

1 x 15 mm Gyproc DuraLine

1 x 22 mm Gyproc ThermaLine BASIC

1 x 30 mm Gyproc ThermaLine BASIC

1 x 40 mm Gyproc ThermaLine BASIC

1 x 27 mm Gyproc ThermaLine PLUS

1 x 35 mm Gyproc ThermaLine PLUS

1 x 40 mm Gyproc ThermaLine PLUS

1 x 48 mm Gyproc ThermaLine PLUS

1 x 30 mm Gyproc ThermaLine SUPER

1 x 40 mm Gyproc ThermaLine SUPER

1 x 50 mm Gyproc ThermaLine SUPER

1 x 60 mm Gyproc ThermaLine SUPER

1 x 70 mm Gyproc ThermaLine SUPER

1 x 80 mm Gyproc ThermaLine SUPER

1 x 90 mm Gyproc ThermaLine SUPER

Finishing -
Type

Taped seamless finish

Skim coat plaster finish

Not generally suitable for use with Gyproc Board Moisture Resistant Grade.

To receive ceramic tiles

Primer/ Sealer

One coat of Gyproc Drywall Primer

Two coats of Gyproc Drywall Sealer

For use where vapour control is a consideration.

Accessories

None

Rigid beads/ stops

Gypframe Skirting Plates

To provide a ground for fixing skirting.

Other requirements

None

Access panels

Installation

Apply continuous beads of Gyproc Sealant to Gyprframe channels prior to positioning and screw-fixing the boards
