Application

Suitable as barrier protection for both traditional and modern locations.

Description

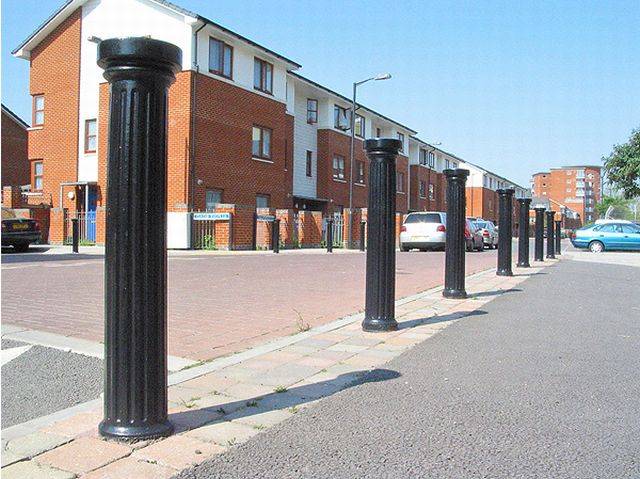

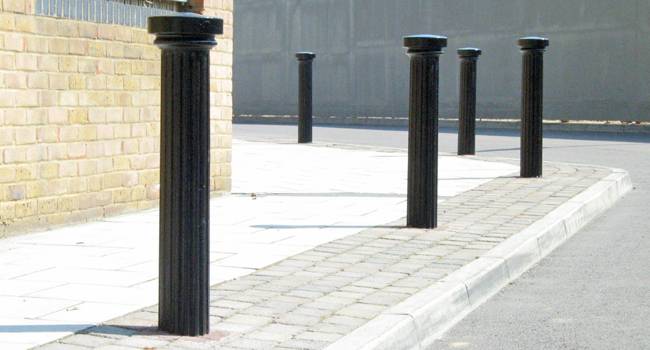

The Doric cast iron bollard is based on the classical Greek column featuring decorative fluted sides and a shallow domed top. This durable bollard is commonplace throughout many UK towns and cities, suitable for both traditional and modern locations.


Features and benefits:

  • Choice of root fixed or removable option.
  • Can be specified with eye bolts (for chain link) and reflective tape - refer to accessories below.

General information

Color

Black

Finish

Primed

Material

Cast iron

Shape

Circle

Guidance for specification option:

Cylindrical.

Width

170 mm

Guidance for specification option:

(Diameter.)

Height

920 mm

Warranty description

One year

Uniclass

Pr_20_76_08_14 Cast iron bollardsPrimary

CAWS

Q50/190 Bollards

Product range

Bollards

Specification data - Cast iron bollards

Material

Cast iron.

Dimensions

-

Height

920 mm.

Length below ground

290 mm.

Top profile

Domed.

Base

Root fixed.

Removable.

Guidance for specification option:

Standard or F1 socket. Insert requirements; refer to manufacturer for details.

Finishes

-

Applied finish

Primed.

Guidance for specification option:

Top coats are preferably applied on site after installation on primed products.

Colour

Black.

Accessories

Not required.

CHNS.

Guidance for specification option:

Steel spiked chain link, galvanized.

CHNP.

Guidance for specification option:

Steel plain chain link, galvanized.

EBAB.

Guidance for specification option:

Steel M10 eye bolt, bright zinc plated.

SLNK.

Guidance for specification option:

Steel split link, galvanized.

Crest/ logo personalization.

Sign.

TAPE C.

Guidance for specification option:

Red/ white chevron reflective tape.

TAPE R.

Guidance for specification option:

Red reflective tape.

TAPE W.

Guidance for specification option:

White reflective tape.

TAPE Y.

Guidance for specification option:

Yellow reflective tape.

Weight

55 kg.

Type:

Standard.

Diameter

170 mm.

Installation

Guidance for specification option:

Root fixed:

  • Foundation depth is usually the same as the root depth of the bollard.
  • Minimum recommended foundation diameter is the root diameter plus 200 mm.
  • Concrete mix to 25 newtons.


Removable:

  • Foundation depth 320 mm.
  • Minimum recommended foundation 450 mm square.
  • Dig an additional drainage hole 80 mm (deep) x 150 mm (square) and fill with pea shingle (directly below socket).
  • Concrete mix to 25 newtons.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100
