Application

  • Suitable for historic sites.
  • Suitable for aiding the visually impaired when installed over 1000 mm high.


Description

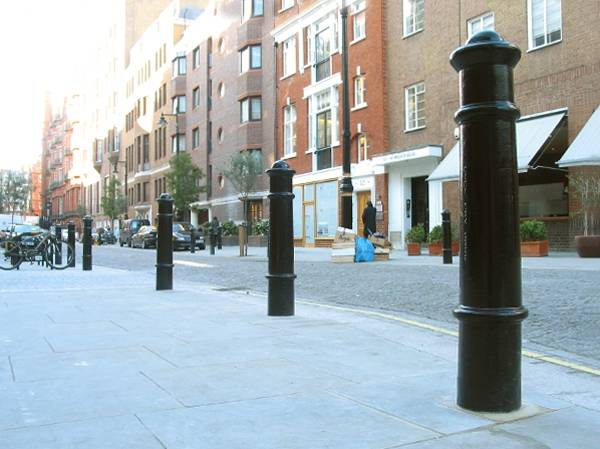

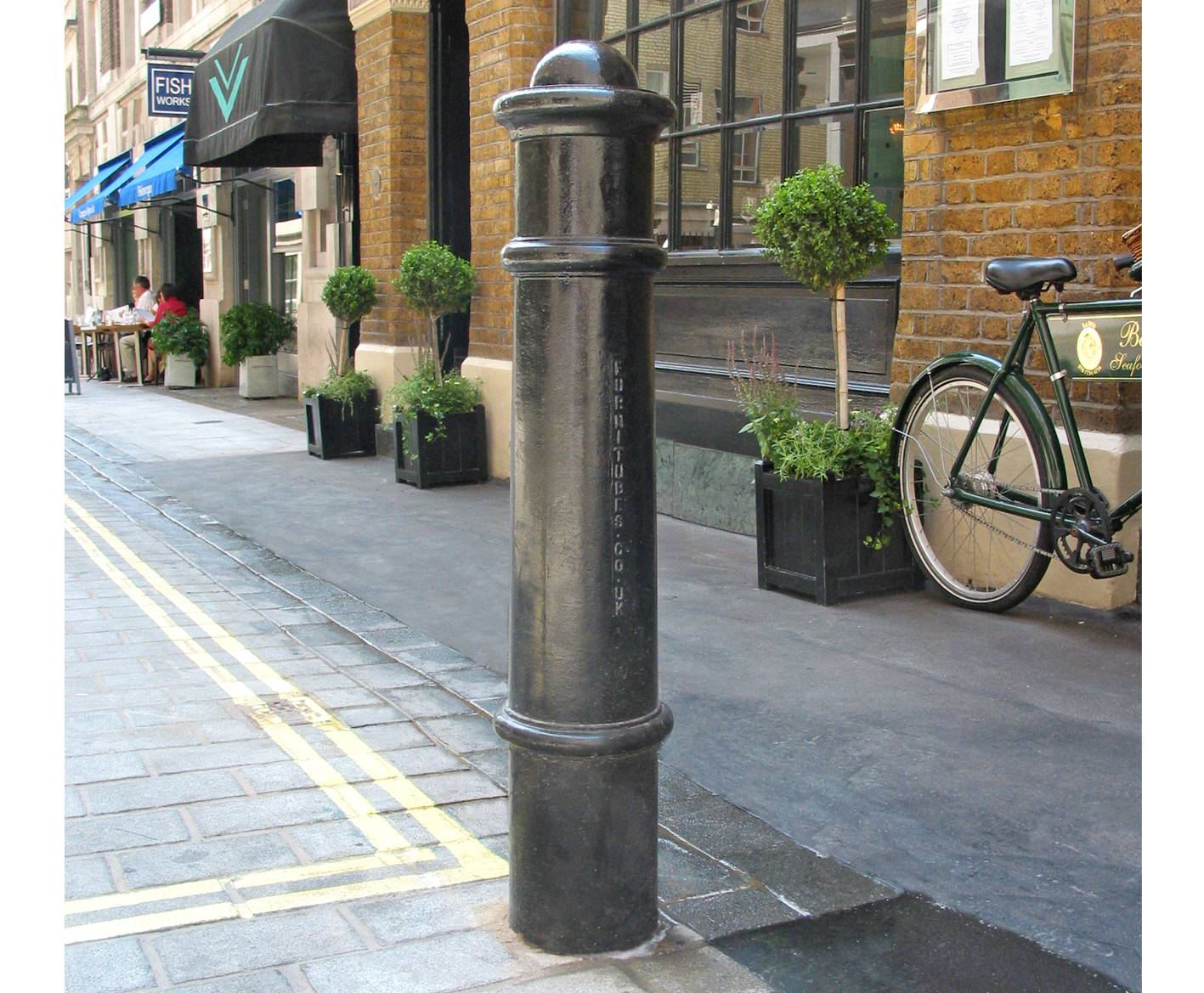

Cannon inspired bollard which can be cast with a crest or logo. It is popular for historic sites and installed over 1000 mm high; the bollard can aid the visually impaired and assist in meeting the requirements of the Disability Discrimination Act (DDA).


Features and benefits:

  • Complies with BS 8300.


General information

Color

Black

Finish

Primed

Material

Cast iron

Shape

Circle

Guidance for specification option:

Cylindrical.

Width

210 mm

Height

1140 mm

Warranty description

One year

Uniclass

Pr_20_76_08_14 Cast iron bollardsPrimary

Product range

Bollards

Specification data - Cast iron bollards

Material

Cast iron.

Dimensions

-

Size and profile

210 mm diameter.

Height

1140 mm.

Length below ground

260 mm.

Top profile

Conical, rounded.

Base

Flat, root fixed.

Finishes

-

Applied finish

Primed.

Guidance for specification option:

Top coats are preferably applied on site after installation on primed products.

Colour

Black.

Accessories

Not required.

CHNS.

Guidance for specification option:

Steel spiked chain link, galvanized.

CHNP.

Guidance for specification option:

Steel plain chain link, galvanized.

Crest/ logo personalization.

Guidance for specification option:

Insert requirements.

Drilled to accept rails/ post and rail system.

EBAB.

Guidance for specification option:

Steel M10 eye bolt, bright zinc plated.

Highlighted rings.

Guidance for specification option:

Insert requirements.

Sign.

Guidance for specification option:

Insert requirements.

SLNK.

Guidance for specification option:

Steel split link, galvanized.

TAPE C.

Guidance for specification option:

Red/ white chevron reflective tape.

TAPE R.

Guidance for specification option:

Red reflective tape.

TAPE W.

Guidance for specification option:

White reflective tape.

TAPE Y.

Guidance for specification option:

Yellow reflective tape.

Weight

90 kg.

Form

Standard bollard.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Literature

Bollards range

Bollards range
