Application

Suitable for aiding the visually impaired when installed over 1000 mm high.

Description

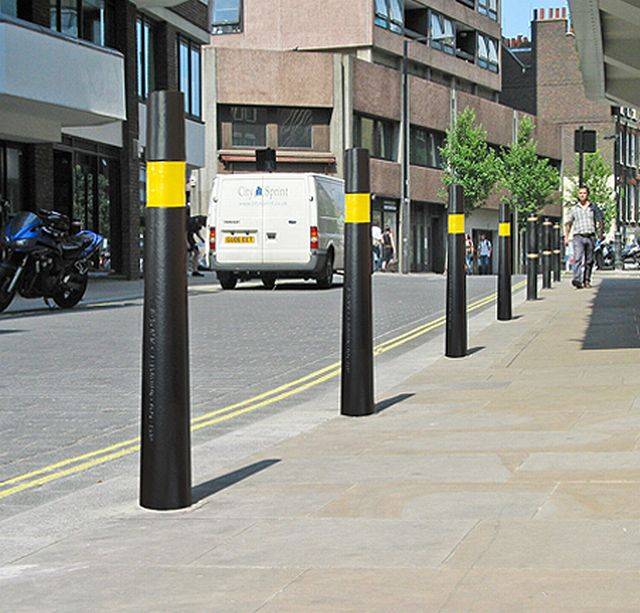

The Capital bollard balances strength and protection with modern aesthetics. It is tapered and features a recess which can be painted in a contrasting colour, or covered with reflective tape.


Features and benefits:

  • Bollards installed over 1000 mm aid the visually impaired and can assist with the requirements of BS 8300.

General information

Color

Black

Yellow

Finish

Primed

Material

Cast iron

Shape

Circle

Guidance for specification option:

Conical.

Warranty description

One year

Uniclass

Pr_20_76_08_14 Cast iron bollardsPrimary

CAWS

Q50/190 Bollards

Product range

Bollards

Specification data - Cast iron bollards

Material

Cast iron.

Dimensions

-

Size and profile

150 mm diameter.

Height

1000 mm.

Length below ground

350 mm.

Top profile

Flat.

Base

Flat, root fixed.

Finishes

-

Applied finish

Primed.

Guidance for specification option:

Top coats are preferably applied on site after installation on primed products.

Colour

Black.

Guidance for specification option:

Recess can be painted in a contrasting colour, or covered with reflective tape.

Accessories

Not required.

CHNS.

Guidance for specification option:

Steel spiked chain link, galvanized.

CHNP.

Guidance for specification option:

Steel plain chain link, galvanized.

EBAB.

Guidance for specification option:

Steel M10 eye bolt, bright zinc plated.

SLNK.

Guidance for specification option:

Steel split link, galvanized.

TAPE C.

Guidance for specification option:

Red/ white chevron reflective tape.

TAPE R.

Guidance for specification option:

Red reflective tape.

TAPE W.

Guidance for specification option:

White reflective tape.

TAPE Y.

Guidance for specification option:

Yellow reflective tape.

Weight

35 kg.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Literature

Furnitubes Bell Bollards Brochure

Furnitubes Bell Bollards Brochure
