Dolomite Blind
Application

Heavy duty blackout roller blind system with chain or crank or motorised operation for education, laboratory, residential and commercial project applications.

Description

Heavy duty blackout roller blind system with chain or crank or motorised operation

Features and benefits:

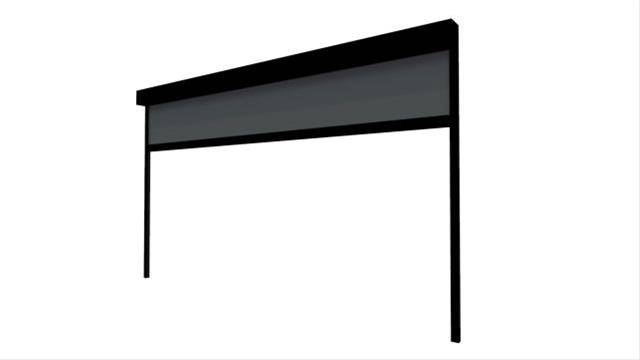

  • Blackout roller blind system with extruded aluminium head-box and special fabric-locking side channels.
  • Child safe compliant with chain retainer to EN13120
  • Safe By Design with Crank Handle or motorised
  • Fabrics are 100% opaque for room darkening and fire resistant, and some can be wiped clean and be weather resistant.
  • Options include high performance energy saving fabrics with available technical data and glare control fabrics which can have varying degrees of openness, to allow a view outside and may also be translucent, so that the need for artificial lighting is reduced. Porous fabrics allow good air exchange for natural ventilation.
  • Fixing options available for concealment and details should be coordinated with Aluzion.
  • Where wiring provision is an issue, the system can be very versatile for high level clerestory windows. The extended detachable crank handle option allows a cost effective, safe and controllable solution to north lights, halls and any area which is hard to reach but where retrospective wiring needs to be avoided.
  • Motorised operation options are either with hardwired switch or radio controlled, or connected to third party system
  • 10-year warranty

Motorised operation wiring:

  • Wiring is to be carried out by an approved blind contractor or qualified and experienced electrician in accordance with wiring diagram supplied. Blinds to be wired into approved disconnection point such as inline connector or 4-pole rose fitting, within 800mm of blind motor position. Request project specific guidance.

Application:

Heavy duty blackout roller blind system with chain or crank or motorised operation for education, laboratory, residential and commercial project applications.

General information

Finish

Steel with RAL 7016 PPC finish

Material

Jasper, Amethyst, Sapphire or Emerald

Shape

Standard

Size

Maximum size: Width 4 m; Height 6 m; Area 13 m2

WarrantyDescription

Five years

Uniclass 2015

Pr_30_59_07_72 Roller blindsPrimary
Specification data - Roller blinds

Product Reference

Dolomite Blind® Chain Operation

Dolomite Blind® Crank Operation

Dolomite Blind® Motorised Operation

Standards

BS5867, EN13120

Position

Internal to vertical glazing

Dimensions (minimum width x depth)

Maximum size: Width 3 m; Height 3 m; Area 9 m2

Headrail

-

Material

Aluminium extruded light-tight cassette

Colour

RAL 9016 PPC finish

Blinds

-

Material

Jasper

flame-retardant, strong tear resistant, breathable, weatherproof

Blackout function

To provide blackout 95%

Finish

RAL 9016

Custom RAL

Colour

Subject to fabric specified

Pattern

Not required

Jasper

Amethyst

Sapphire

Emerald

Tube

-

Material

Aluminium roller tube

Covers

-

Material

Aluminium extruded hembar

Colour

PPC RAL 9016

Operation

Steel chain with child safety device

Dolomite Blind® Chain Operation

Manual operation by crank handle; attached / detachable

Dolomite Blind® Crank Operation

Motorised operation with Aluzion HW1 motor for operation by wall switch or Aluzion HW1R motor for operation by radio handset or radio wall switch

Dolomite Blind® Motorised Operation

Operating effort

Class 1

Testing

BS5867, EN13120

Mechanism endurance

Class 1

Accessories

Not required

Custom bracket options are available including custom RAL finishes

Headbox

-

Size

92.5 mm x 100 mm

Finish

PPC RAL 9016

Controls

-

Hardwired

Not required

Hardwired wall switch

Dolomite Blind® Motorised Operation only. Programmed one per blind/group. Blinds to be grouped in operation as per marked-up drawing supplied by architect showing which handset or switch is to operate which group of blinds

Radio

Not required

Radio handset

Dolomite Blind® Motorised Operation only. Programmed one per blind/group. Blinds to be grouped in operation as per marked-up drawing supplied by architect showing which handset or switch is to operate which group of blinds

Radio wall switch

Dolomite Blind® Motorised Operation only. Programmed one per blind/group. Blinds to be grouped in operation as per marked-up drawing supplied by architect showing which handset or switch is to operate which group of blinds

Accessories

Not required

11000 Series Blind Control Unit to be used to allow grouped operation. Interface required for AV system to connect to and operate blinds

Dolomite Blind® Motorised Operation only

Standard product features

Colour:

From standard UV-stabilised colour range; fabric accepts printing logos, text or images in one or more colours.

Feature:

Blackout roller blind system with extruded aluminium head-box and special locking side channels.

Finish:

Steel with RAL 7016 PPC finish.

Material:

Jasper, Amethyst, Sapphire or Emerald.

Shape:

Standard.

Size:

Maximum size: Width 4 m; Height 6 m; Area 13 m2.

Warranty description:

Five years.

Recycled content:

Subject to fabric specified.

Recyclability:

100% recyclable where facilities exist.

Country of origin:

UK.

Country of manufacturer:

UK.

Environmental information

Recyclability

100% recyclable where facilities exist

Recycled content

Subject to fabric specified

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1
Download now from NBS National BIM Library
