Dolomite Blind® Rooflight

Verified by manufacturer 1 month ago

Aluzion Blinds Ltd

Very Strong Rooflight Blind system for blackout and shading rooflights.

Jump to:
+44 (0)845 382 2000 Website

Application

Heavy duty blackout rooflight roller blind system with crank or motorised operation for education, laboratory, residential and commercial project applications.

Description

Heavy-duty blackout rooflight roller blind system with crank or motorised operation.


Features and benefits:

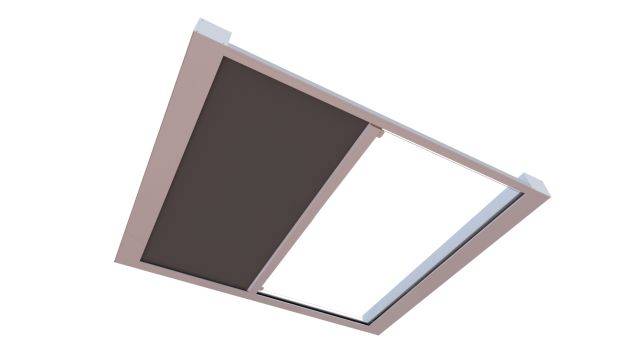

  • Rooflight roller blind system with extruded aluminium head-box and special fabric-locking side channels.
  • Safe By Design
  • Fabrics are 100% opaque for room darkening and fire resistant, and some can be wiped clean and be weather resistant.
  • Options include high performance energy saving fabrics with available technical data and glare control fabrics which can have varying degrees of openness, to allow a view outside and may also be translucent, so that the need for artificial lighting is reduced. Porous fabrics allow good air exchange for natural ventilation.
  • Fixing options available for concealment and details should be coordinated with Aluzion.
  • Where wiring provision is an issue, the system can be very versatile for rooflights up to 4m above FFL. The detachable crank handle option allows a cost effective, safe and controllable solution to any area which is hard to reach but where retrospective wiring needs to be avoided.
  • Motorised operation options are either with hardwired switch or radio controlled, or connected to third party system
  • Ten year warranty


Motorised operation wiring:

  • Wiring is to be carried out by an approved blind contractor or qualified and experienced electrician in accordance with wiring diagram supplied. Blinds to be wired into approved disconnection point such as inline connector or 4-pole rose fitting, within 800 mm of blind motor position. Request project specific guidance.

General information

Color

Other

Finish

Powder-coated

Material

Fabric

Steel

Length

Bespoke

Width

Bespoke

Warranty description

30 year

Uniclass

Pr_30_59_07_72 Roller blindsPrimary

CAWS

N10/70 Blinds

N10/240 Blinds

Specification data - Roller blinds

Standards

To BS 5867, EN 13120.

Position

Internal to horizontal glazing.

Dimensions (minimum width x depth)

2-3.5 x 2-4 m.

Guidance for specification option:

Insert requirements.

Headrail

-

Material

Aluminium extruded light-tight cassette.

Colour

RAL 9016.

Blinds

-

Material

Jasper.

Guidance for specification option:

flame-retardant, strong tear resistant, breathable, weatherproof

Blackout function

To provide blackout 95%.

Finish

RAL 9016.

Custom RAL.

Colour

Subject to fabric specified.

Pattern

Jasper.

Amethyst.

Sapphire.

Emerald.

Tube

-

Material

Aluminium roller tube.

Operation

Manual operation by crank handle; attached / detachable.

Guidance for specification option:

Dolomite Blind® Rooflight_Crank Operation

Motorised operation with Aluzion HW1 motor for operation by wall switch or Aluzion HW1R motor for operation by radio handset or radio wall switch.

Guidance for specification option:

Dolomite Blind® Rooflight_Motorised

Operating effort

Class 1.

Mechanism endurance

Class 1.

Accessories

Not required.

Custom bracket options are available including custom RAL finishes.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Guidance for specification option:

Where facilities exist.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Subject to fabric specified.
