Designer Series Counter-Mounted Automatic Soap Dispenser, Foam B-84_ Series
Verified by manufacturer 10 months ago

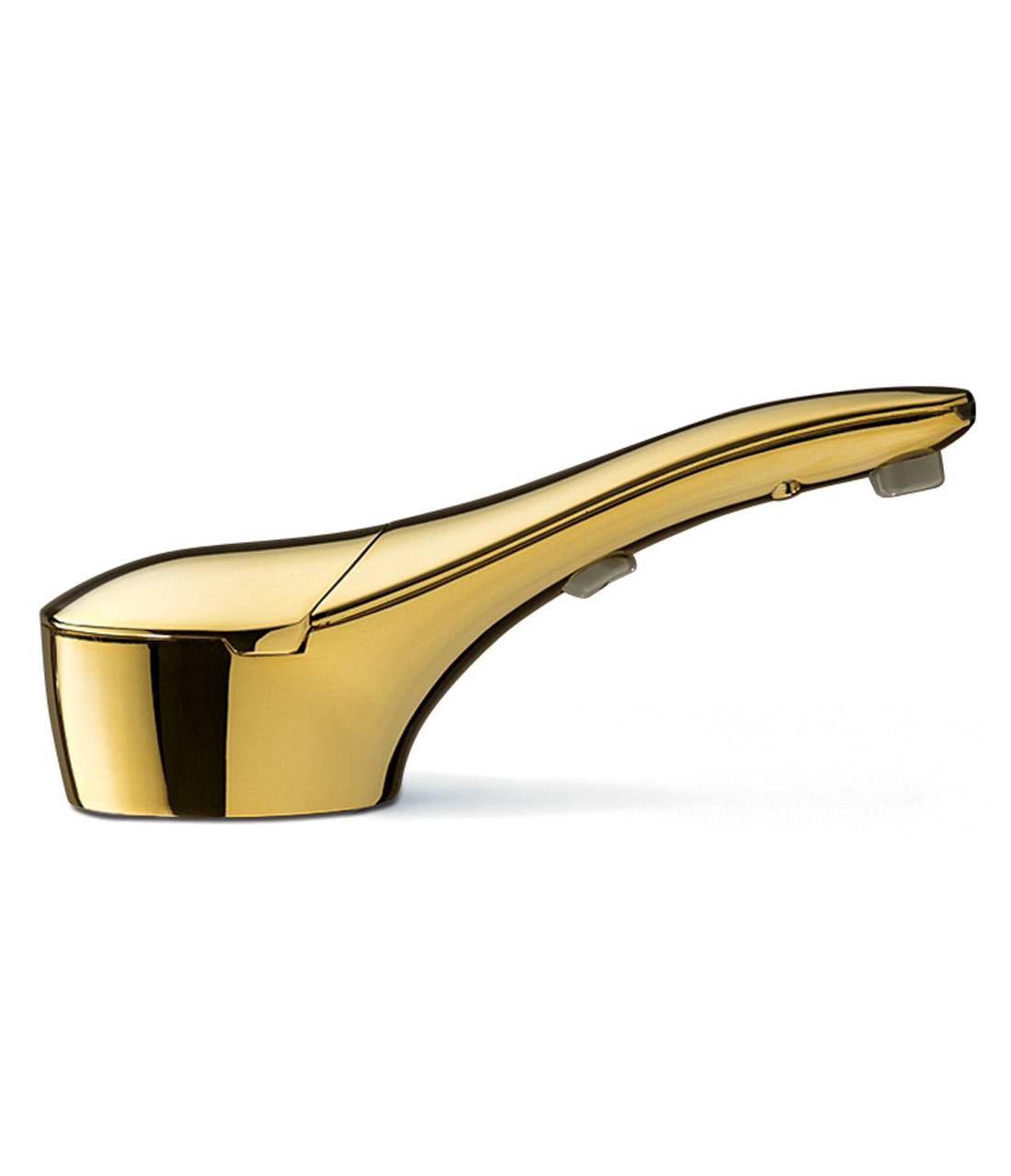

B-840 Soap Dispenser - Polished Brass
B-840 Soap Dispenser - Polished Brass
Deck-mounted, Automatic Foam Soap Dispenser.
Application
Deck mounted.
Description
An automatic, “top fill”, “touch-free” soap dispenser with die-cast zinc body construction, that uses universal bulk foam soaps for significant cost-in-use savings.
Features and benefits:
- Dispenser offers a unique portion control feature that optimizes patron satisfaction with operating budget.

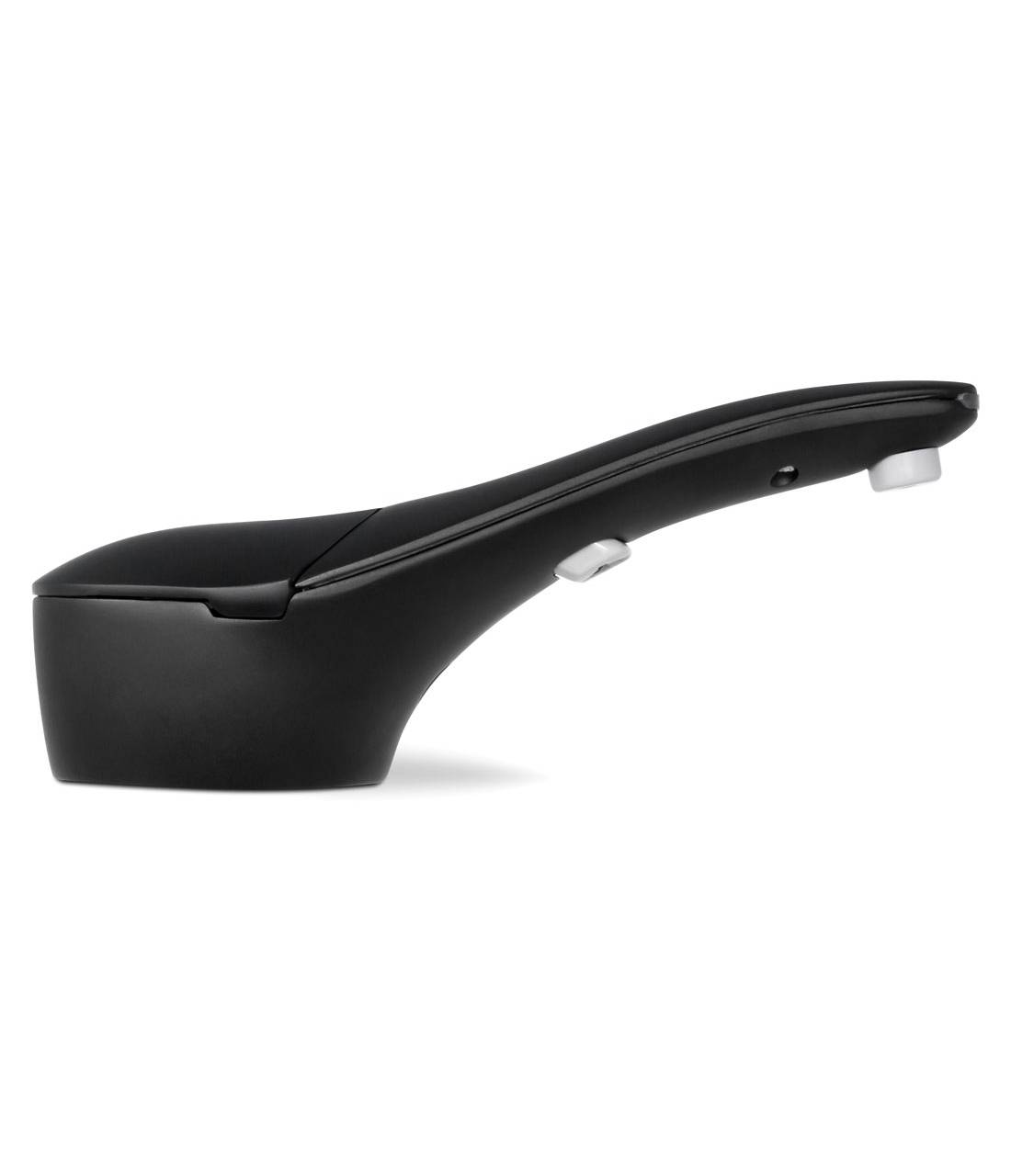

- Available in five different finishes (Polished Chrome, Polished Nickel, Brushed Nickel, Polished Brass and Matte Black).
- Automatic faucet available in a matching finish.
- Adjustable time-out durations, line purging, adaptable sensor range, LEED flow-rate options.
General information
Color | Black Silver Guidance for specification option: Chrome. Grey Guidance for specification option: Nickel. Gold Guidance for specification option: Brass. |
Finish | Polished Guidance for specification option: Polished Chrome, Polished Nickel and Polished Brass. Matt Guidance for specification option: Matt Black. Brushed Guidance for specification option: Brushed Nickel. |
Material | Zinc Manufacturer guidanceAs per manufacturer and includes die-cast zinc. |
Length | 170 mm |
Width | 70 mm |
Height | 75 mm |
Warranty description | Guidance for specification option: Bobrick Designer Series Soap Dispensers are warranted to be free from defects in workmanship and material under normal usage for three years from the date of purchase (Rust and discoloration to stainless steel parts resulting from exposure to harsh environmental and/or chemical conditions are not considered to be defects in workmanship or material and there is no expressed or implied warranty for such condition). |
Uniclass | |
CAWS | N13/62 Soap dispensers N13/458 Soap dispensers |
Specification data - Soap dispensers
Form | Deck-mounted |
Materials | |
Body | Die-cast Zinc. |
Finish and colour | Polished brass. |
Operation | Automatic. |
Integral accessories | 6 V a.c. adapter. |
Sustainability data
Country of material origin | United States |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Washroom Accessories
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

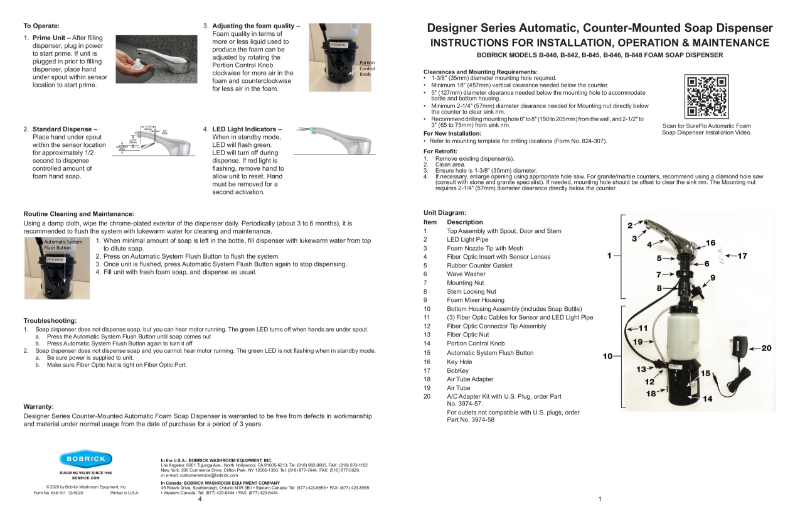

Designer Series Automatic, Counter-Mounted Soap Dispenser - Instructions for Installation, Operation and Maintenance - Bobrick Models B-840, B-842, B-845, B-846, B-848 Foam Soap Dispenser

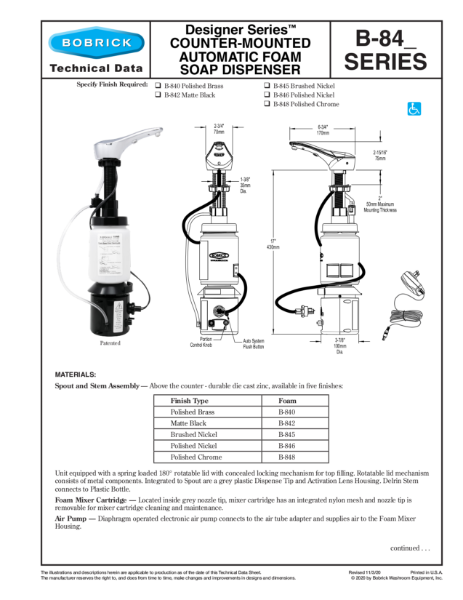

Designer Series™ Counter-Mounted Automatic Foam Soap Dispenser - B-84_ Series
