Counter-Mounted, Automatic, Top-Fill Bulk Foam Soap Dispenser G-8248 - Counter-Mounted Foam Soap Dispenser

Verified by manufacturer 10 months ago

Bobrick Washroom Equipment Ltd

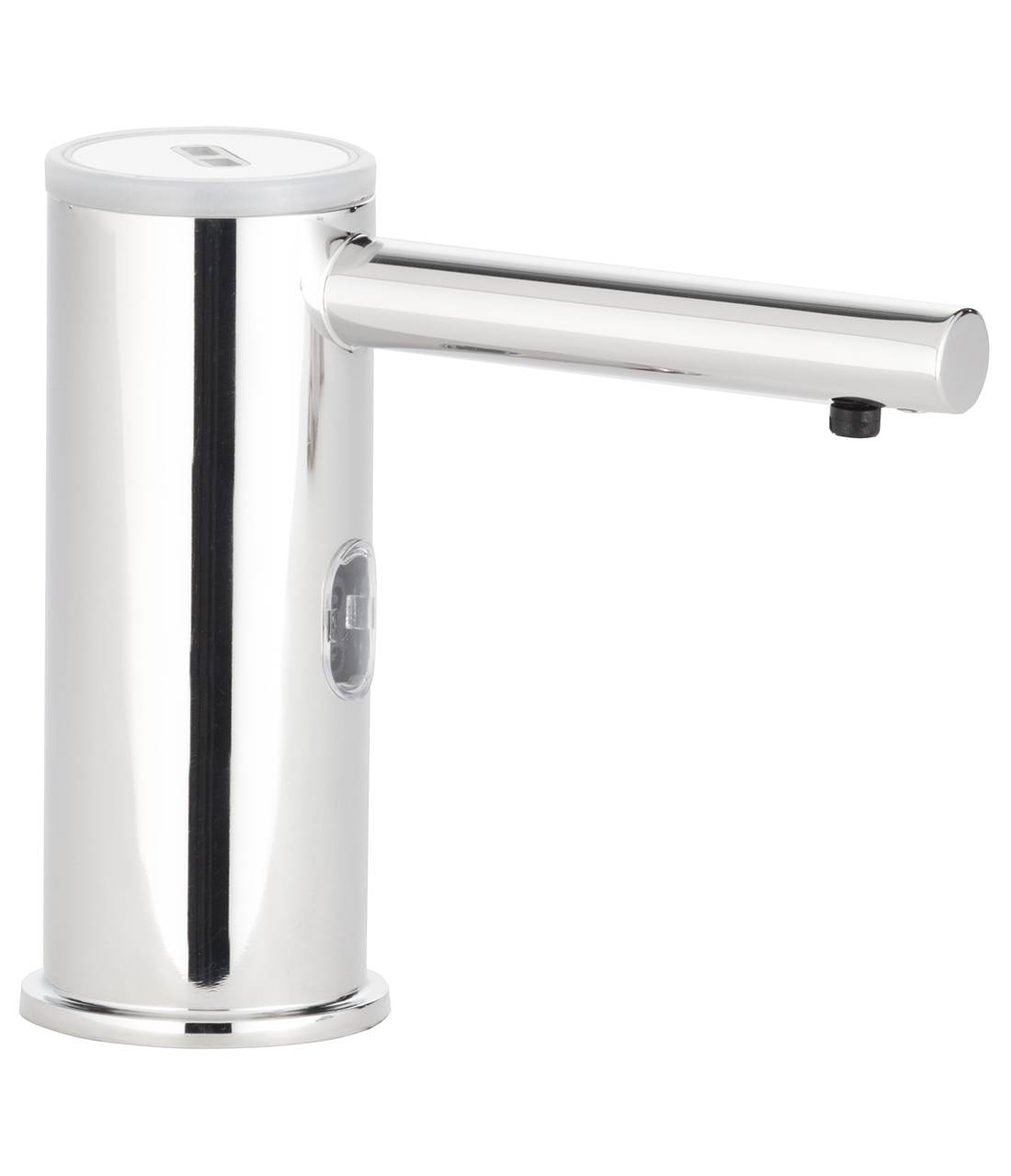

Counter-mounted, automatic, top-fill bulk foam soap dispenser has a bright polished 304 stainless steel spout with integral stem. From Gamco, a Division of Bobrick Washroom Equipment.

Jump to:
+44 (0)20 8366 1771 Website

Application

For washroom applications. Counter-mounted.

Description

Counter-mounted, automatic, top-fill bulk foam soap dispenser has a bright polished 304 stainless steel spout with integral stem. Vandal-resistant spout has a locked fill port cap that opens with a special funnel key and is used for top filling the dispenser with soap. LED ring light indicator on spout shows when unit has been activated, has a low soap level, and a refill warning buzzer will sound when the soap tank is 85% full to prevent overfilling. Soap reservoir polypropylene plastic tank has a capacity of 1.5 L.


Soap Dispenser is equipped with touchless IR Sensor that activates to dispense 0.6 to 0.8 ml of foam soap when hand is placed in front of the sensor. Dispenses commercially marketed all-purpose bulk foam hand soap with a viscosity of 1 cP to 50 cP (centipoise). Powered by 6 V a.c. adapter that is included.

General information

Color

Silver

Finish

Polished

Material

Stainless steel

Shape

Other

Length

122 mm

Width

43 mm

Height

100.2 mm

Uniclass

Pr_40_70_22_81 Soap dispensersPrimary

CAWS

N13/62 Soap dispensers

N13/458 Soap dispensers

Specification data - Soap dispensers

Form

Countertop mounted.

Materials

-

Body

Stainless steel dispenser, polypropylene reservoir tank.

Finish and colour

Polished.

Operation

Automatic.

Integral accessories

Soap reservoir tank, pump and soap delivery system, 6 V a.c. adapter, LED ring light indicator.

Dispenser

G-8248 (Foam Soap Dispenser).

Accessories

None.

824-241 Battery pack for reservoir and dispenser.

824-241 Battery pack for reservoir and dispenser and 3974-58 International AC adapter plug kit.

Guidance for specification option:

For outlets not compatible with U.S. plugs.

Manufacturer guidance

Optional battery pack. Uses 4no. D cell batteries. Batteries not included.

BIM objects

Platform Compatible Version
Revit
-

1

Literature

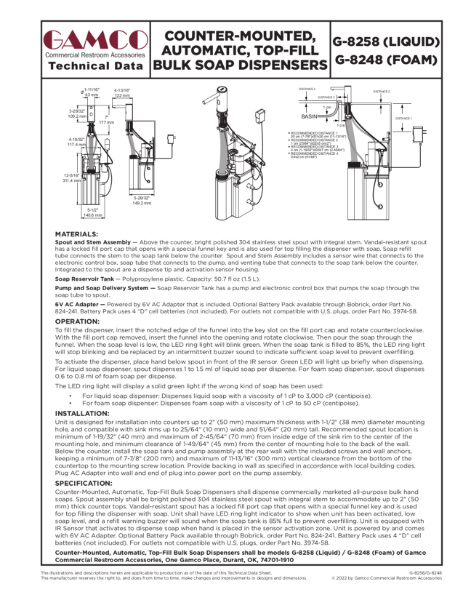

G-8248 Automatic, Top-Fill Foam Soap Dispenser Technical Data Sheet

G-8248 Automatic, Top-Fill Foam Soap Dispenser Technical Data Sheet

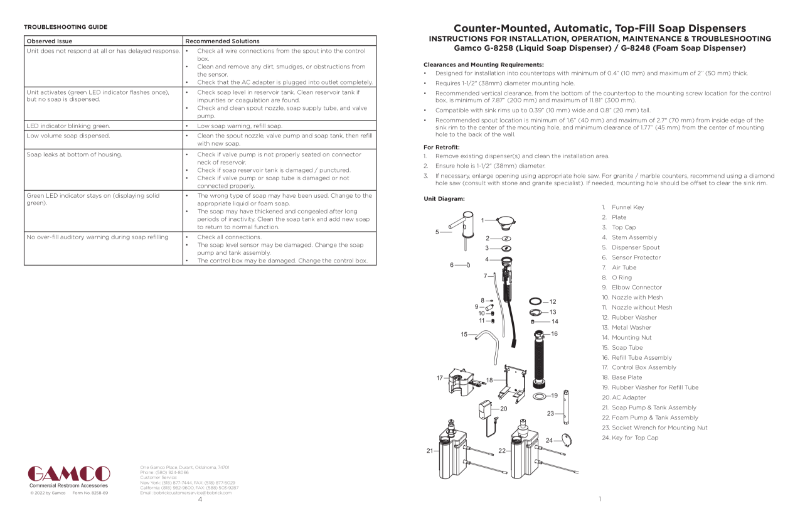

B-8248 Foam Soap Dispenser Installation Instructions

B-8248 Foam Soap Dispenser Installation Instructions
