Counter-Mounted, Automatic, Top-Fill Bulk Liquid Soap Dispenser G-8258 - Counter-Mounted Liquid Soap Dispenser

Verified by manufacturer 10 months ago

Bobrick Washroom Equipment Ltd

Counter-mounted, automatic, top-fill bulk liquid soap dispenser has a bright polished 304 stainless steel spout with integral stem. From Gamco, a Division of Bobrick Washroom Equipment.

Jump to:
+44 (0)20 8366 1771 Website

Application

For washroom applications.

Description

Counter-mounted, automatic, top-fill bulk liquid soap dispenser has a bright polished 304 stainless steel spout with integral stem. Vandal-resistant spout has a locked fill port cap that opens with a special funnel key and is used for top filling the dispenser with soap. LED ring light indicator on spout shows when unit has been activated, has a low soap level, and a refill warning buzzer will sound when the soap tank is 85% full to prevent overfilling. Soap reservoir polypropylene plastic tank has a capacity of 1.5 L.


Soap Dispenser is equipped with touchless IR Sensor that activates to dispense 1 to 1.5 ml of liquid soap when hand is placed in front of the sensor. Dispenses commercially marketed all-purpose bulk liquid hand soap with a viscosity of 1 cP to 3000 cP (centipoise). Powered by 6 V a.c. adapter that is included.

General information

Color

Silver

Finish

Polished

Material

Stainless steel

Shape

Other

Length

122 mm

Width

43 mm

Height

100.2 mm

Uniclass

Pr_40_70_22_81 Soap dispensersPrimary

CAWS

N13/62 Soap dispensers

N13/458 Soap dispensers

Specification data - Soap dispensers

Form

Countertop mounted.

Materials

-

Body

Stainless steel dispenser, polypropylene reservoir tank.

Finish and colour

Polished.

Operation

Automatic.

Integral accessories

Soap reservoir tank, pump and soap delivery system, 6 V a.c. adapter, LED ring light indicator.

Dispenser

G-8258 (Liquid Soap Dispenser).

Accessories

None.

824-241 Battery pack for reservoir and dispenser.

824-241 Battery pack for reservoir and dispenser and 3974-58 International AC adapter plug kit.

Guidance for specification option:

For outlets not compatible with U.S. plugs.

Manufacturer guidance

Optional battery pack. Uses 4no. D cell batteries. Batteries not included.

BIM objects

Platform Compatible Version
Revit
-

1

Literature

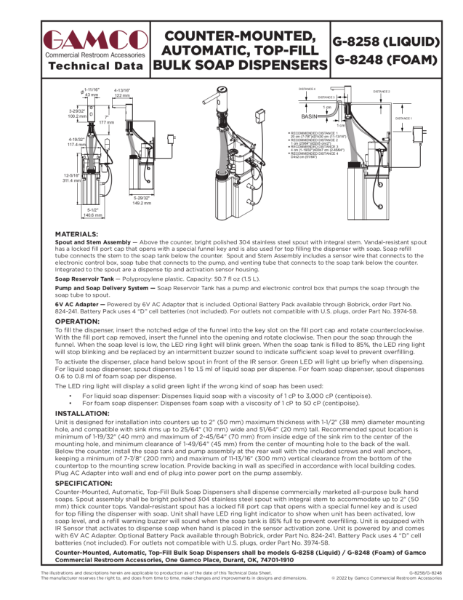

G-8248 Automatic, Top-Fill Liquid Soap Dispenser Technical Data Sheet

G-8248 Automatic, Top-Fill Liquid Soap Dispenser Technical Data Sheet

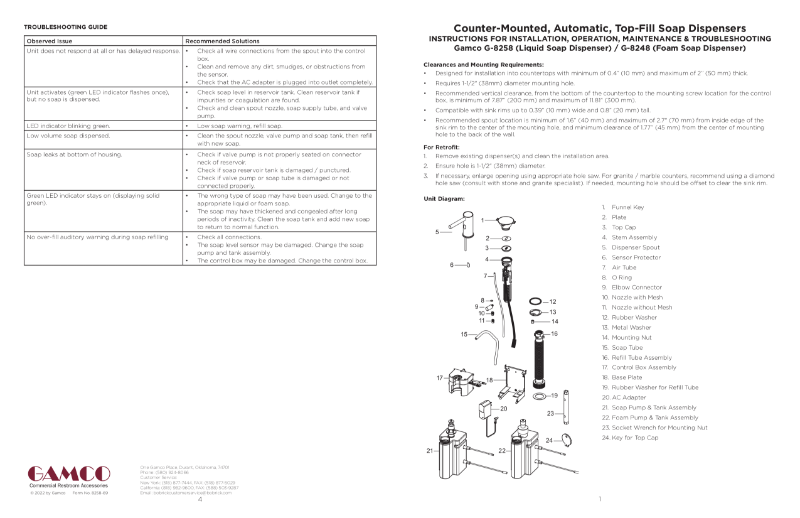

G-8258 Liquid Soap Dispenser Installation Instructions

G-8258 Liquid Soap Dispenser Installation Instructions
