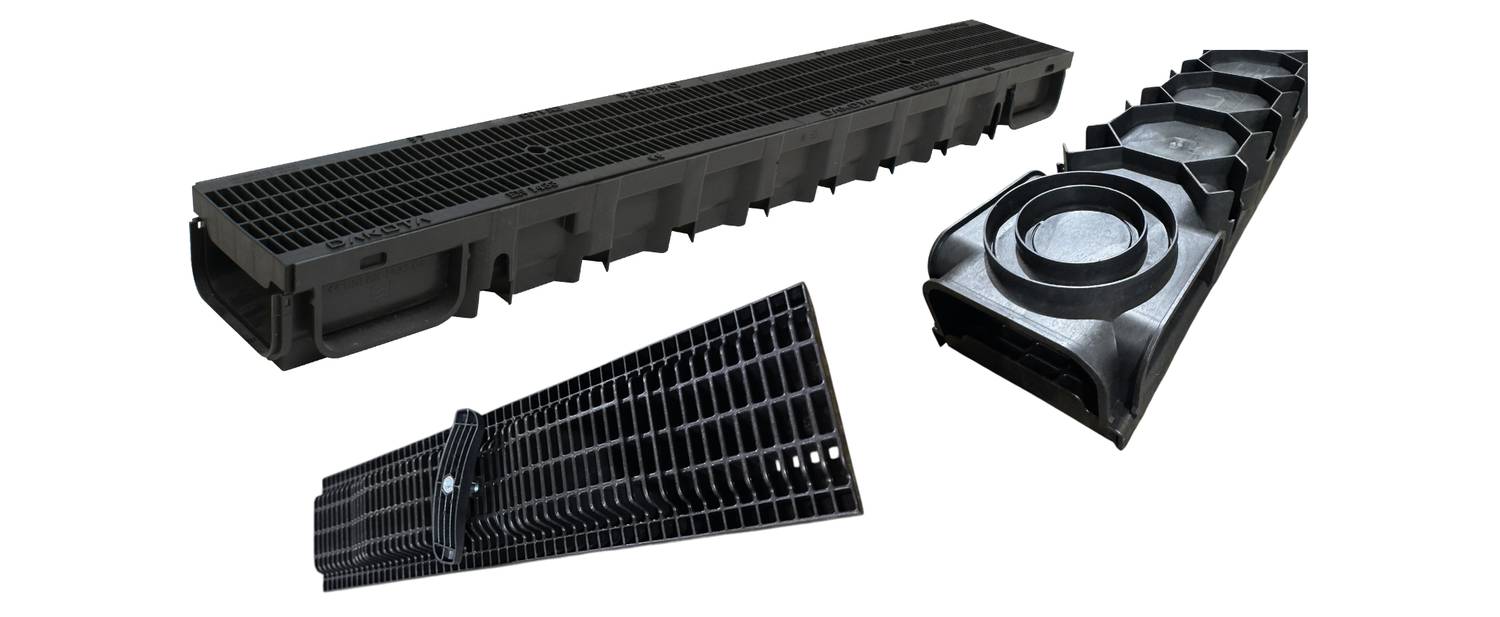

DekDrain Hydrus B125 Channel
Verified by manufacturer 5 days ago
Strength-Engineered Systems for Collecting Surface Rainwater
Application
Suitable for collection of surface rainwater and engineered for strength. A range of gratings allows the use in pedestrian or low density traffic areas. Installation must be to our/manufacturers instructions as this weight range will need bedding for such uses.
Description
DekDrain Hydrus B125 Channel.
PE-HD Base (high-density polyethylene) not including grating which can be selected separately. The material has an excellent resistance to chemicals and organic agents, and it is “self-cleaning”. This channel is shock resistant and can guarantee high performances even in presence of thermal shock (from -40 to 100°C).
General information
Color | Black |
Material | High density polyethylene (HDPE) |
Shape | Rectangle |
Length | 1000 mm |
Width | 137 mm |
Height | 84 mm |
Uniclass | |
CAWS | Q10/35 Drainage channel systems with gratings Q10/180 Drainage channel systems with gratings |
Specification data - Drainage channels with gratings
Classification data | |
Standard | To BS EN 1433. |
Properties | |
Material | High-density polyethylene. |
Gratings | |
Material | Composite. |
Form | Composite heel grating. |
Colour | Black. |
Load class (minimum) | B 125. |
Channel unit dimensions | |
Width (nominal) | 137 mm. |
Depth (nominal) | 84 mm. |
Length | 1000 mm. |

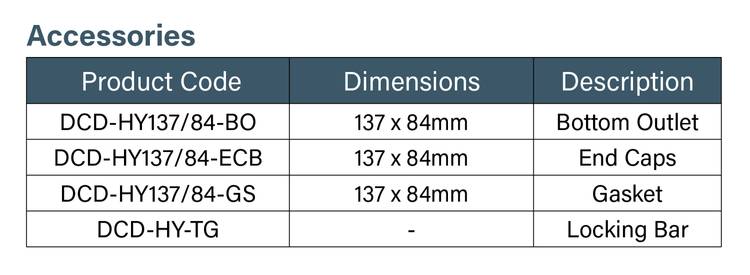

Integral accessories | Bottom outlet. Guidance for specification option: 137 x 84 mm. Ends caps. Guidance for specification option: 137 x 84 mm. Gasket. Guidance for specification option: 137 x 84 mm. Locking bar. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Manufacturing plant location | |
Material | High density polyethylene (HDPE) |
Expected Life | Ten year |
