Application

Drainage channel.

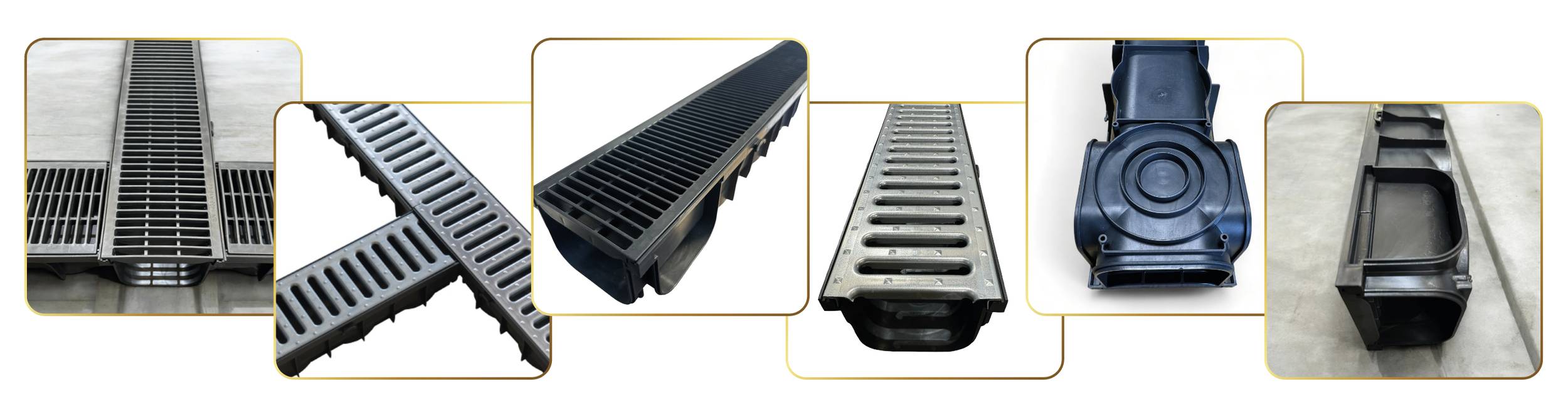

A15 plastic mesh and galvanized drainage solutions offer a robust and effective way to manage surface water runoff in various applications.

Description

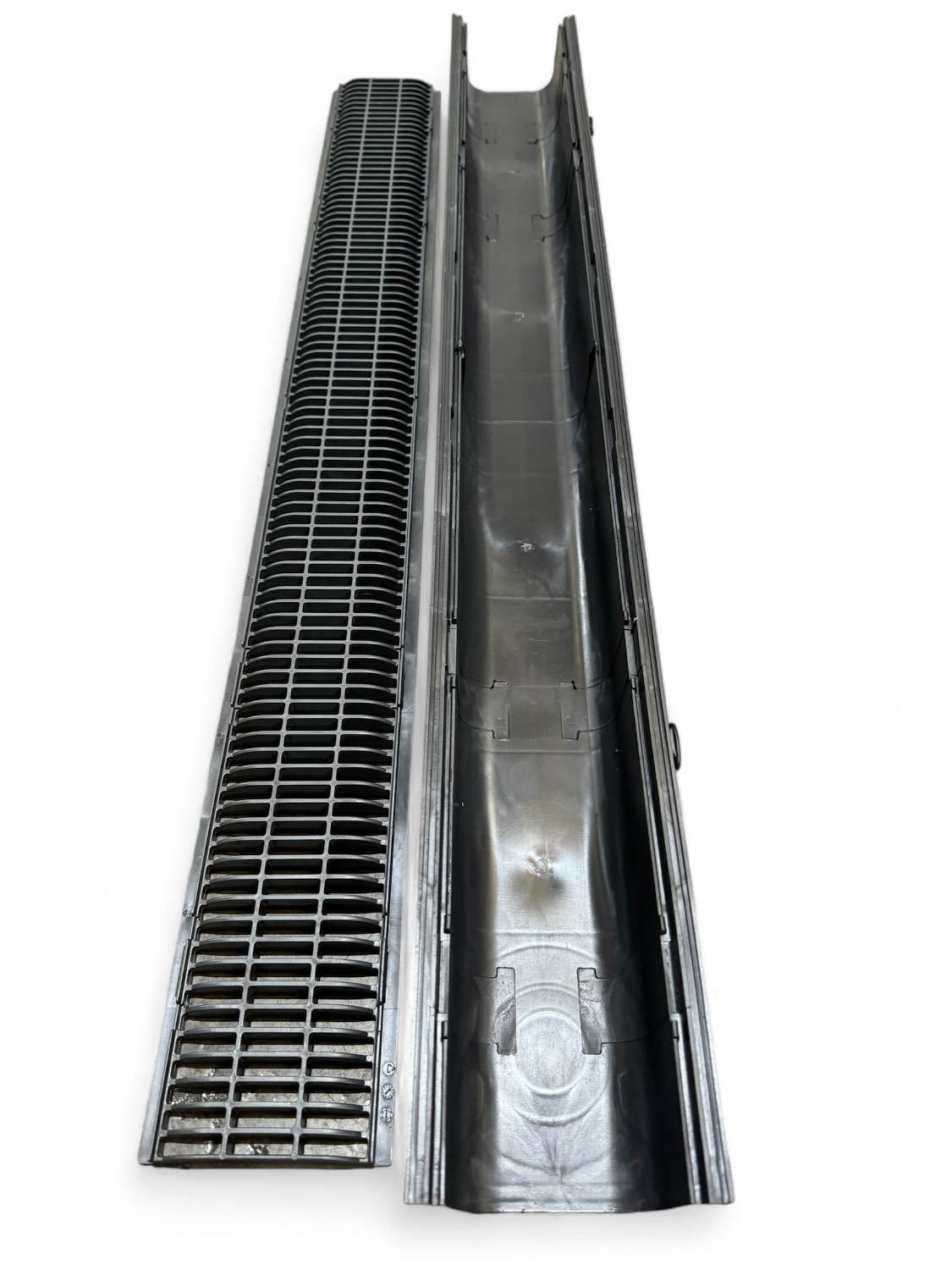

A15 plastic mesh and galvanized drainage solutions offer a robust and effective way to manage surface water runoff in various applications. The A15 designation refers to a load-bearing capacity, signifying its suitability for pedestrian and light vehicular traffic. This type of plastic mesh is often used as a grating within drainage channels, providing a durable and lightweight alternative to heavier materials. When paired with galvanised drainage channels, the system benefits from the corrosion resistance of the galvanisation process, ensuring a long lifespan even in harsh environmental conditions. Together, A15 plastic mesh and galvanised drainage provide a practical and cost-effective solution for efficient water management around buildings, walkways, and other areas requiring effective drainage.

General information

Color

Black

Finish

Galvanized

Material

Plastic

Steel

Shape

Rectangle

Length

1000 mm

Width

121 mm

Height

50 mm

84 mm

Warranty description

One year

Uniclass

Pr_65_52_24_24 Drainage channels with gratingsPrimary

CAWS

Q10/35 Drainage channel systems with gratings

Q10/180 Drainage channel systems with gratings

SKU Code

DCD-VL

Specification data - Drainage channels with gratings

Classification data

Standard

To BS EN 1433.

Properties

-

Material

Steel.
Plastics.

Gratings

-

Material

Plastics.
Galvanized steel.

Form

Slotted.

Colour

Black.
Galvanized.

Load class (minimum)

A 15.

Channel unit dimensions

-

Width (nominal)

121 mm.

Depth (nominal)

50 mm.
84 mm.

Length

1000 mm.

Integral accessories

Bottom outlet.

Guidance for specification option:

110 mm.

End cap pack.

Guidance for specification option:

To suit 50 or 84 mm. Insert requirements.

Outlet trapped sump gully with leaf-guard.

Guidance for specification option:

110 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Manufacturing plant location

Material

Plastic
Steel

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

Ten year
