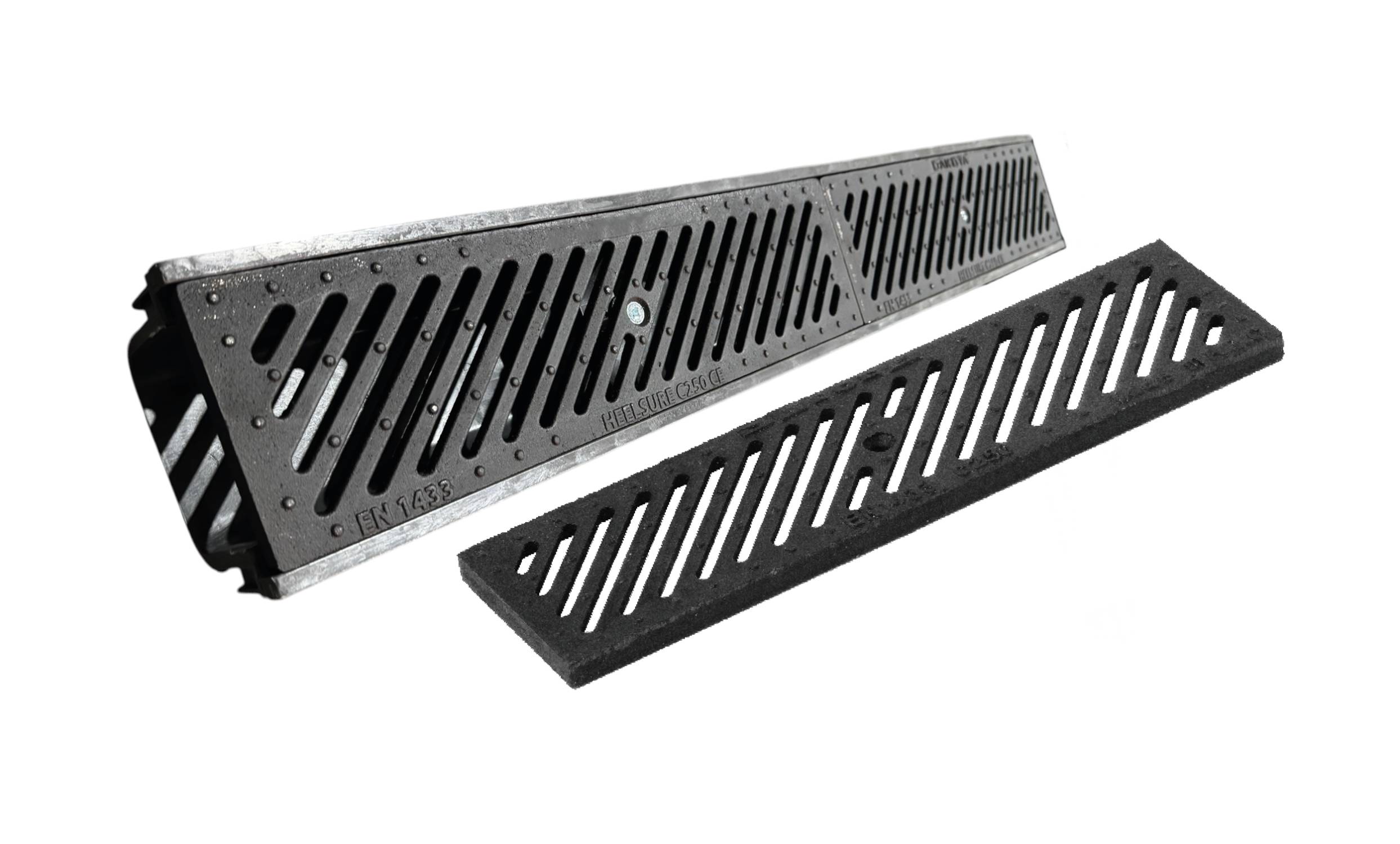

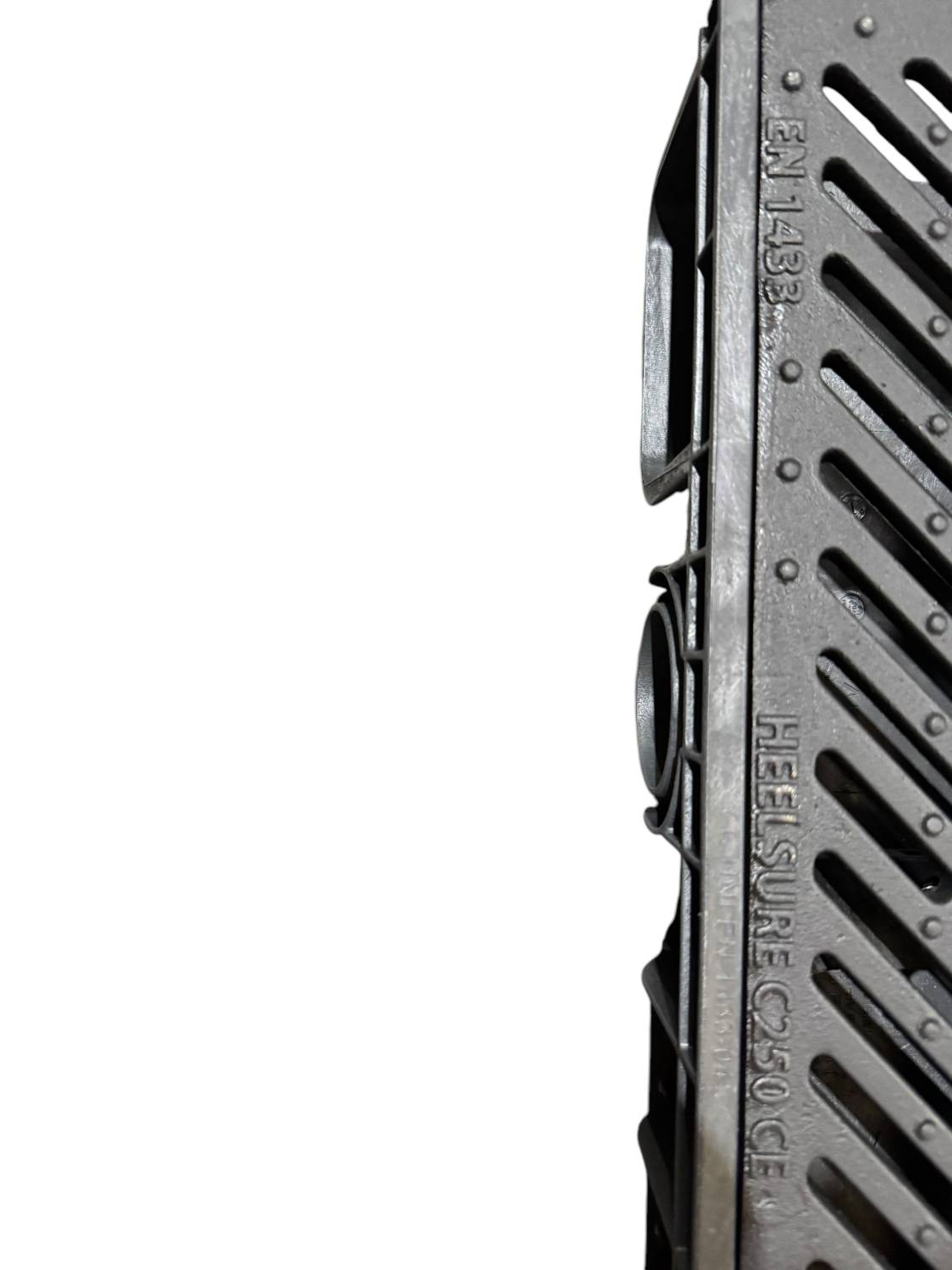

Dekdrain Cetus C250
Verified by manufacturer 4 days ago
Rainwater Collection and Liquid Drainage Solutions for Industrial Applications
Application
It can be combined with a wide range of gratings which can be selected for use in pedestrian areas, driveways, roads and highways.
Description
Dekdrain Cetus C250. Materials PE-HD (high-density polyethylene) not including grating can be selected separately.
The material has an excellent resistance to chemicals and organic agents. It has an excellent coefficient of friction and self-cleaning properties. This channel is shock resistant which means it’s unlikely to suffer from breakages that other channel systems are prone to, and has a high resistance to thermal shock (from -40 to 100°C).
Channels incorporate end connections which can be used to form 90 degree right angles, Tee’s and staggered layouts without separate fittings.
The lateral outlets are Ø 63 mm, bottom outlet is Ø 110 mm with the accessory DCD-CT152/125-BO.
General information
Color | Black |
Material | High density polyethylene (HDPE) |
Shape | Rectangle |
Length | 1000 mm |
Width | 130 mm |
Height | 75 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q10/35 Drainage channel systems with gratings Q10/180 Drainage channel systems with gratings |
SKU Code | DCD-CT |
Specification data - Drainage channels with gratings
Classification data | |
Standard | To BS EN 1433. |
Properties | |
Material | High-density polyethylene. |
Gratings | |
Material | Cast iron. |
Form | Anti heel grate (C250), 130 x 500 mm. |
Colour | Black. |
Load class (minimum) | C 250. |
Channel unit dimensions | |
Width (nominal) | 130 mm. |
Depth (nominal) | 75 mm. |
Length | 1000 mm. |
Integral accessories | Bottom outlet, 100 mm diameter. Guidance for specification option: 137 x 84 mm. Ends caps. Guidance for specification option: 137 x 84 mm. Gasket. Guidance for specification option: 137 x 84 mm. Galvanized steel edge rail. Stainless steel edge rail. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Manufacturing plant location | |
Material | High density polyethylene (HDPE) |
Expected Life | Ten year |
