Application

  • For single action doors up to 1400 mm wide.
  • Can be used for left and right­handed doors.
  • Suitable for fire and smoke protection doors.

Description

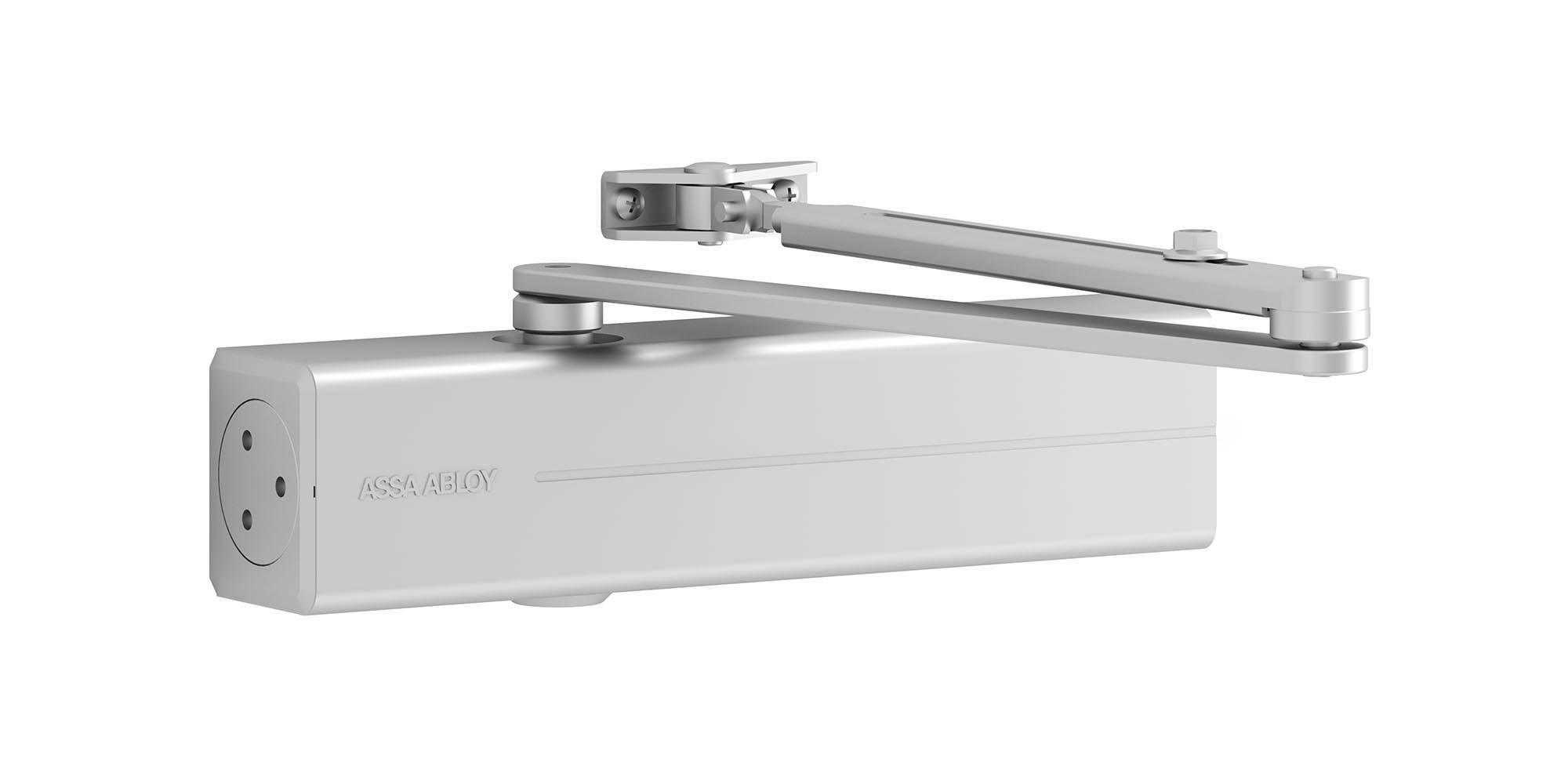

Rack and Pinion closer with link arm L190 (size 3–6) which can be used with integrated concealed mounting plate.


Features and benefits:

  • Link arm height-adjustable up to 14 mm.
  • Adjustable door speed, latching speed and backcheck from front facing regulator valves.
  • Thermodynamic valves for consistent performance.
  • Variable adjustable closing force.
  • Opening angle up to 180°.
  • Effective backcheck and latching speed range adjustable.
  • Accessories for established installation types.
  • Customized finishes available on request.
  • CE marked in compliance with BS EN 1154.
  • Variable adjustable closing force: EN 3–6.
  • DIN door swing direction: Left/ right hand door.
  • Closing speed: Variable between 0–180°.
  • Latching speed: Variable between 0–15°.
  • Backcheck: Variable above 75°.
  • Hold-open mode (with hold-open link arm L191): Adjustable 75–150°, can be enabled and disabled.
  • Same dimensions and design with or without mounting plate.
  • Fulfils barrier-free building requirements.

General information

Color

Silver

Finish

Powder-coated

Shape

Rectangle

Length

260 mm

Width

50 mm

Height

60 mm

Warranty description

Ten year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Product range

Door Controls / ASSA ABLOY Door Closers

Specification data - Controlled door closers

Standard

To BS EN 1154.

Classification grades (minimum)

-

Category of use

4.

Durability

8.

Door closer power size

Adjustable 3–6.

Suitability for use on fire and smoke doors

1.

Safety

1.

Corrosion resistance

3.

Form

Overhead, face fixed.

Closer functions

Controlled closing.

Back check.

Latching.

Materials and finishes

-

Colour

Silver.

Execution

Adjusting controlled door closers.

Fasteners for hardware.

Accessories

None.

Angle bracket A122.

Hold open link arm L191.

Link arm L190.

Mounting plate A120.

Show more

Sustainability data

Recyclability

-

Manufacturer guidance

Metals widely recycled.

Third party certifications

Third party certifications

EPD

EPD

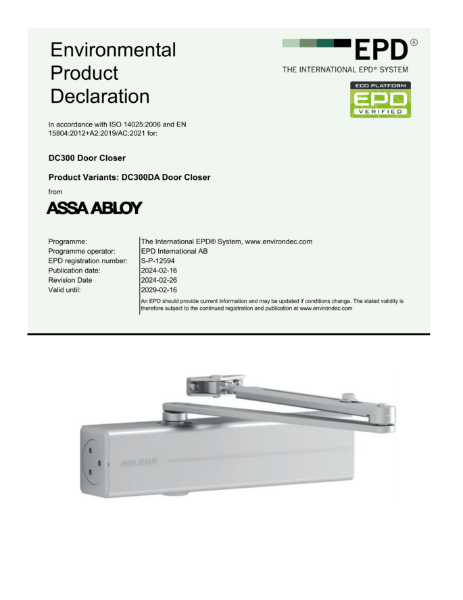

Environmental Product Declaration - DC300
