Application

  • For light or heavy doors up to 950 mm wide in public, residential or commercial buildings.
  • Suitable for fire and smoke protection doors.

Description

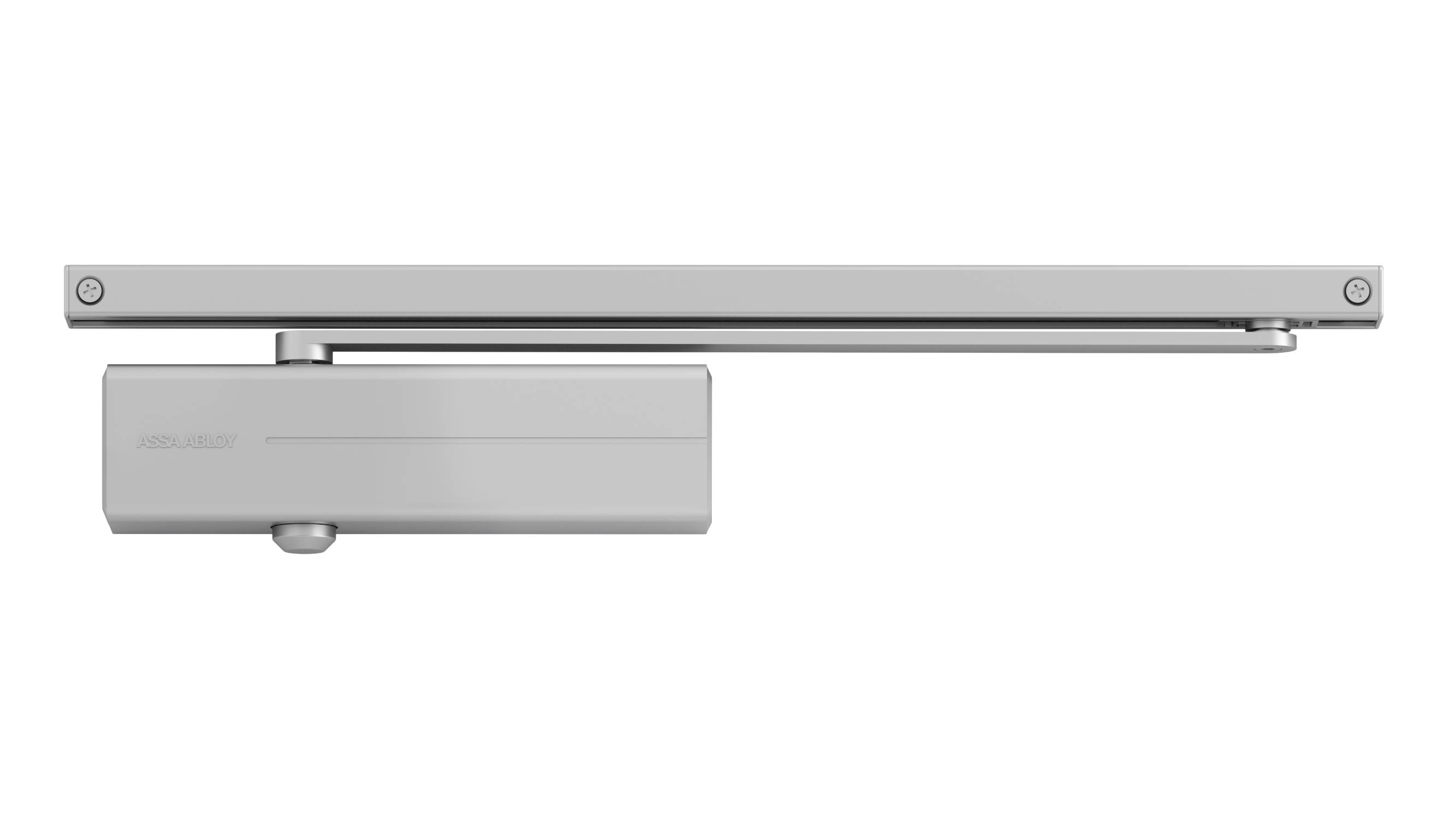

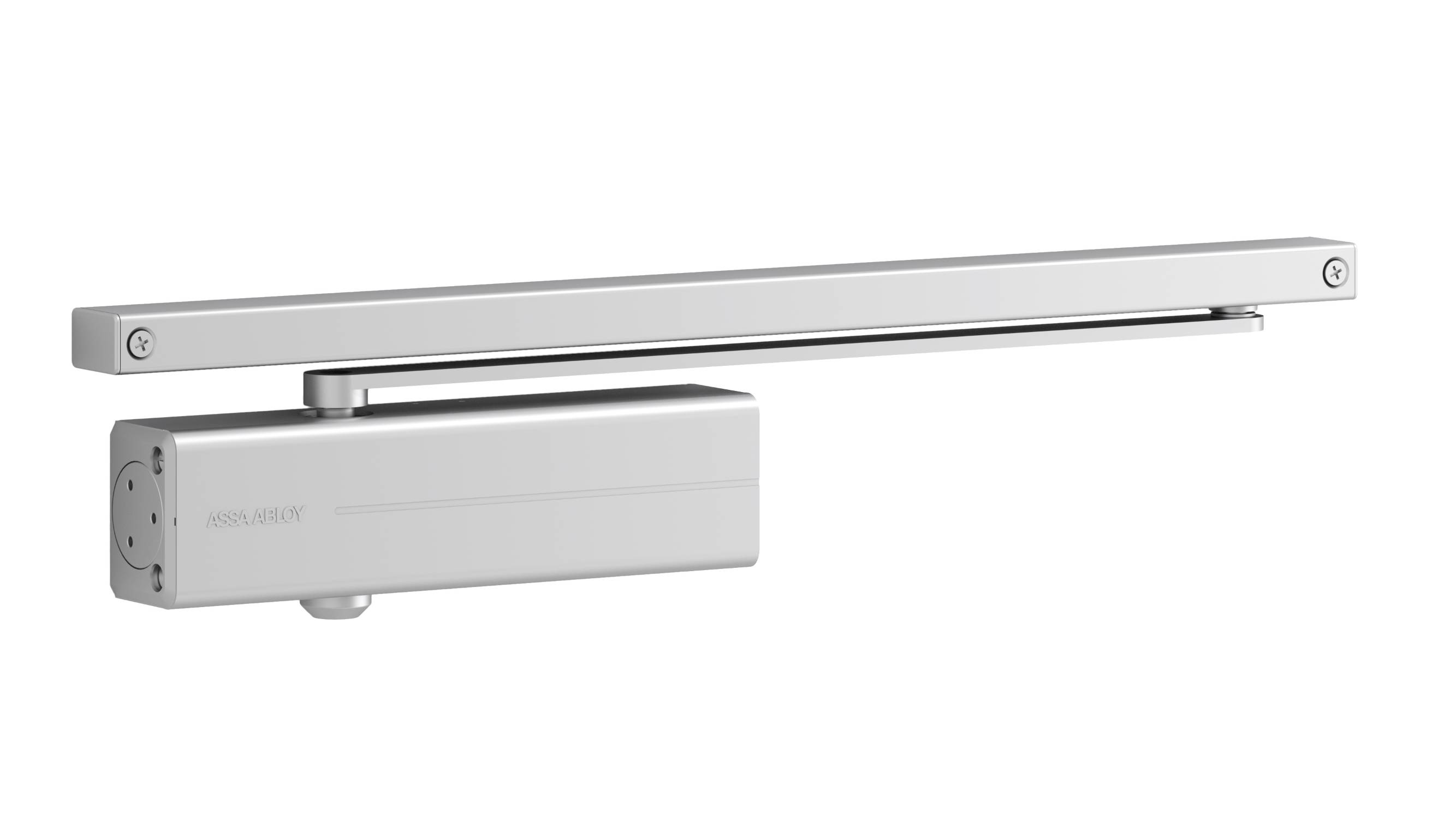

Door closer with Rack and Pinion technology and guide rail.


Features and benefits:

  • Meets BS 8300.
  • In compliance with EN 1154.
  • Closing force EN size 3.
  • Closing speed, latching speed and backcheck.
  • Continuously adjustable.
  • For left and right handed doors.
  • UKCA and CE marked.

General information

Color

Silver

Finish

Satin

Shape

Rectangle

Warranty description

Ten year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Specification data - Controlled door closers

Standard

To BS EN 1154.

Classification grades (minimum)

-

Category of use

4.

Durability

8.

Door closer power size

3.

Suitability for use on fire and smoke doors

1.

Safety

1.

Corrosion resistance

4.

Form

Overhead, face fixed.

Closer functions

Latching.

Back check.

Materials and finishes

-

Bodies

Stainless steel.

Arms

Stainless steel.

Casings

Stainless steel.

Colour

Silver.

Execution

Adjusting controlled door closers.

Sustainability data

Recyclability

90%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Literature

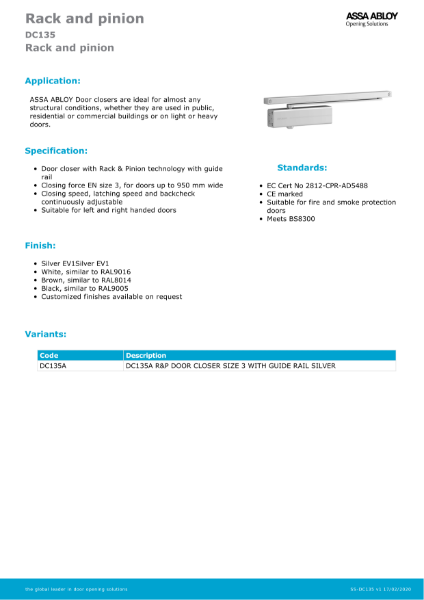

DC135 door closer

DC135 door closer
