Application

  • Suited to heavy door applications.
  • For single action doors up to 1600 mm wide.
  • Suitable for left and right hand doors.
  • Suitable for fire and smoke protection doors.

Description

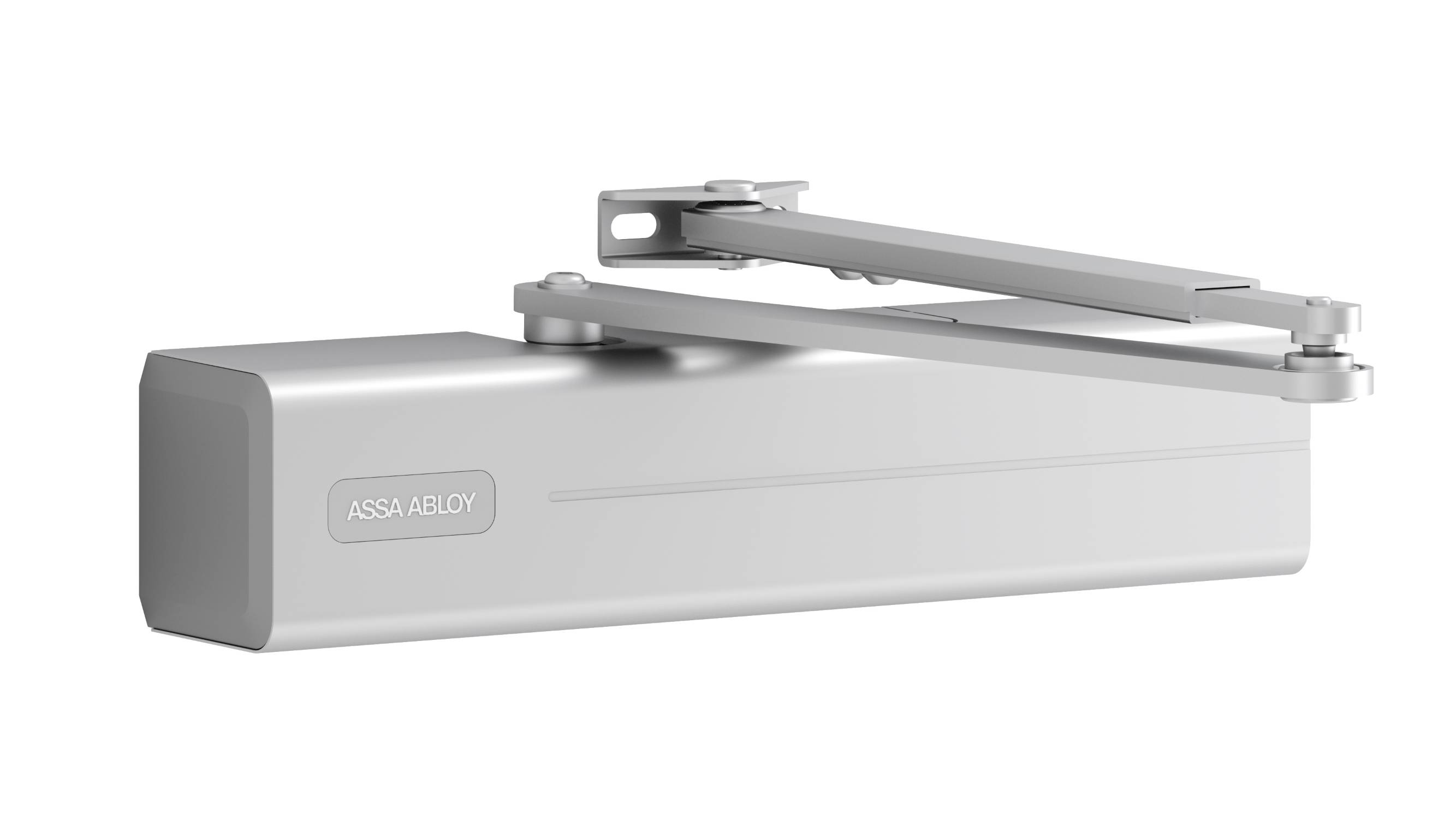

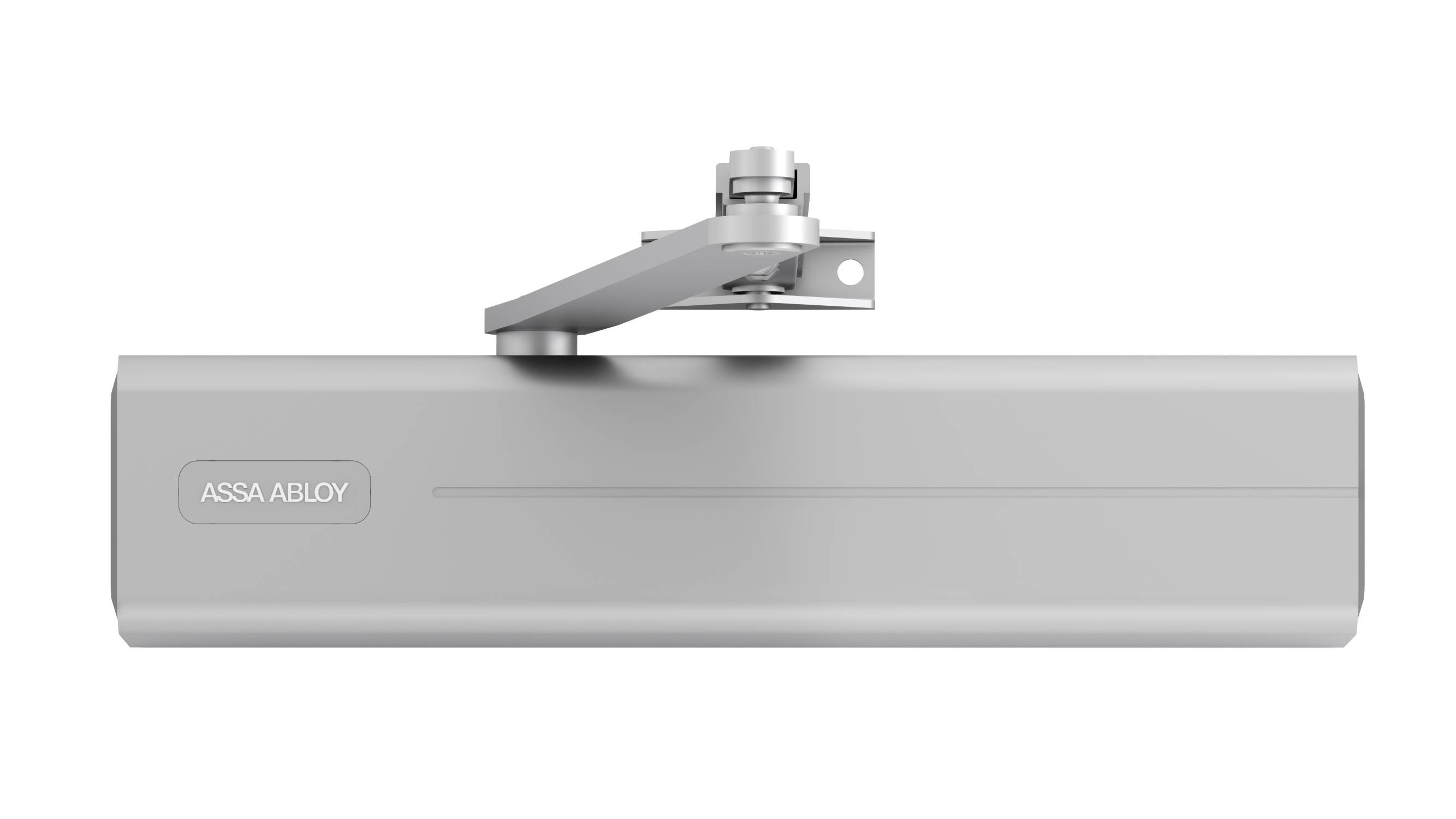

Rack and Pinion closer with link arm L197 (size 5–7), supplied as standard with closer body, for use with L197 extra strong arm, DC107 angle bracket and DC126 mounting plate


Features and benefits:

  • CE marked in compliance to BS EN 1154.
  • Suitable for fire and smoke protection doors.
  • For single action doors up to 1600 mm wide.
  • ABS satin silver cover finish as standard.
  • Adjustable spring power from CEN grades 5-7.
  • Backcheck as standard.
  • Adjustable arm height (14 mm, maximum) for ease of installation.
  • Modular design allowing change of closer without changing the mounting plate.
  • Template adjustable design meaning a quick and easy install.
  • Reduced closer torque means a door easier to open and close.
  • Backcheck: Variable above 75°.
  • Closing speed: Variable between 0–180°.
  • Latching speed: Variable between 0–15°.
  • Same dimensions and design with or without mounting plate.

General information

Color

Silver

Finish

Powder-coated

Shape

Rectangle

Length

64 mm

Width

306 mm

Height

69 mm

Warranty description

Ten year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Product range

Door Controls / ASSA ABLOY Door Closers

Specification data - Controlled door closers

Standard

To BS EN 1154.

Classification grades (minimum)

-

Category of use

4.

Durability

8.

Door closer power size

Adjustable 5–7.

Suitability for use on fire and smoke doors

1.

Safety

1.

Corrosion resistance

3.

Form

Overhead, face fixed.

Closer functions

Controlled closing.

Back check.

Latching.

Materials and finishes

-

Colour

Silver.

White.

Brown.

Black.

Custom.

Execution

Adjusting controlled door closers.

Fasteners for hardware.

Accessories

None.

Angle bracket A107.

Extra strong link arm L197.

Mounting plate A126.

Literature

DC347
