Application

  • For single action doors up to 1100 mm wide.
  • Can be used for left and right­handed doors.
  • Suitable for fire and smoke protection doors.

Description

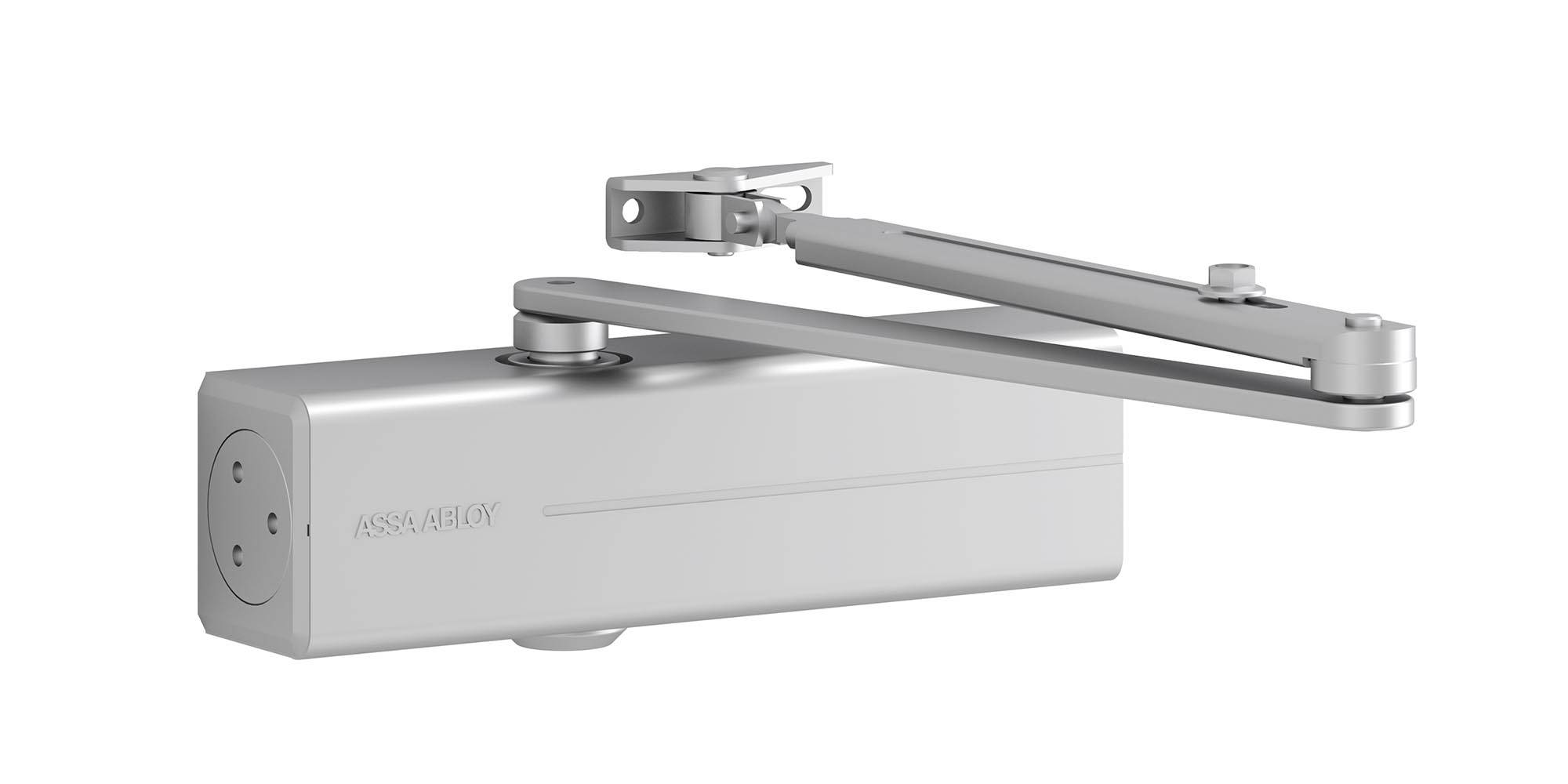

Rack and Pinion closer with link arm L190 (size 2–4) that can be used with integrated concealed mounting plate.


Features and benefits:

  • Link arm height-adjustable up to 14 mm.
  • Adjustable door speed, latching speed and backcheck from front facing regulator valves.
  • Thermodynamic valves for consistent performance.
  • Variable adjustable closing force.
  • Opening angle up to 180°.
  • Effective backcheck and latching speed range adjustable.
  • Accessories for established installation types.
  • CE marked in compliance with BS EN 1154.
  • Variable adjustable closing force: EN 2–4.
  • DIN door swing direction: Left/ right hand door.
  • Closing speed: Variable between 0–180°.
  • Latching speed: Variable between 0–15°.
  • Backcheck: Variable above 75°.
  • Hold-open mode (with hold-open link arm L191): Adjustable 75–150°, can be enabled and disabled.
  • Same dimensions and design with or without mounting plate.
  • Fulfils barrier-free building requirements.

General information

Color

Silver

White

Brown

Black

Finish

Powder-coated

Shape

Rectangle

Length

223 mm

Width

50 mm

Height

60 mm

Warranty description

Ten year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Product range

Door Controls / ASSA ABLOY Door Closers

Specification data - Controlled door closers

Standard

To BS EN 1154.

Classification grades (minimum)

-

Category of use

4.

Durability

8.

Door closer power size

Adjustable 2-4.

Suitability for use on fire and smoke doors

1.

Safety

1.

Corrosion resistance

3.

Form

Overhead, face fixed.

Closer functions

Controlled closing.

Latching.

Back check.

Materials and finishes

-

Colour

Silver.

White.

Black.

Brown.

Custom.

Execution

Adjusting controlled door closers.

Fasteners for hardware.

Sustainability data

Recyclability

-

Manufacturer guidance

Metals widely recycled.

Third party certifications

Third party certifications

EPD

EPD

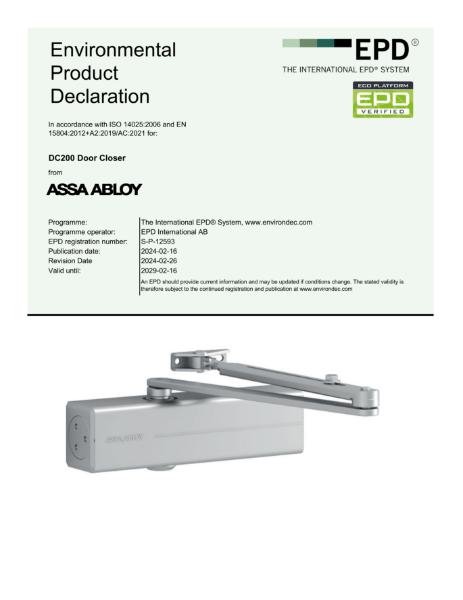

Environmental Product Declaration - DC200
