DC500 Door Closer

Verified by manufacturer 6 months ago

ASSA ABLOY Opening Solutions UK & Ireland Third party certifications:
  • EPD

    EPD

    Certificate type

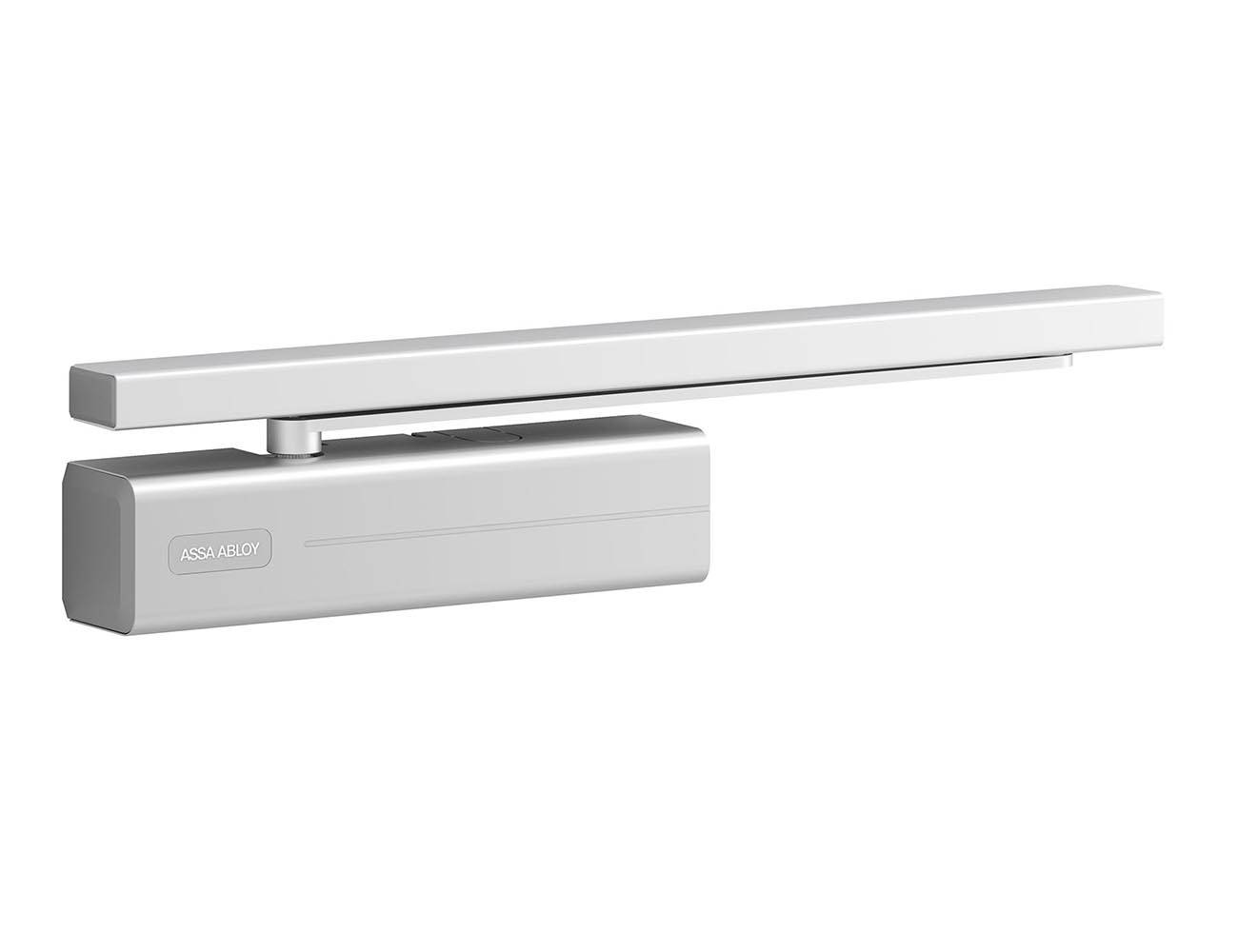

Door closer with CAM motion technology and a choice of guide rail.

Jump to:
0845 223 2124 Website

Application

  • For single action doors up to 1100 mm wide.
  • Can be used for left and right­handed doors.
  • Suitable for fire and smoke protection doors..

Description

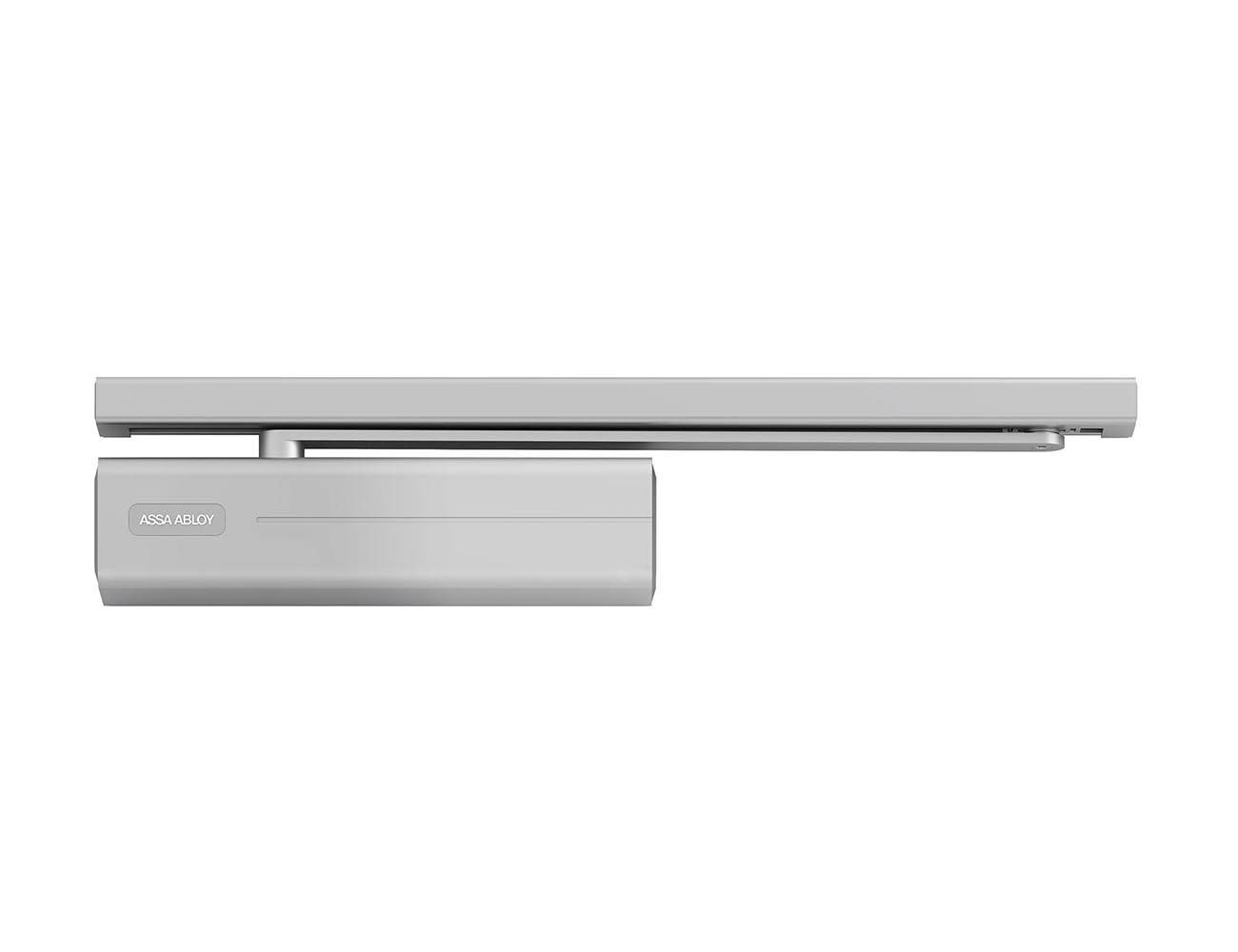

Door closer with CAM motion technology and height-adjustable guide rail G195 or standard guide rail G193 (size 1-4).


Features and benefits:

  • Can be used with integrated concealed mounting plate.
  • Four installation types: hinge and non-hinge sides in standard and lintel installation.
  • Guide rail height-adjustable to 14 mm.
  • Speed and latching speed adjustable from front using the regulating valves.
  • Thermodynamic valves for consistent performance.
  • Variable adjustable closing force.
  • Opening angle up to 170°.
  • Effective backcheck and latching speed range adjustable.
  • Variable adjustable closing force: EN 1–4.
  • Closing speed: Variable between 0–170°.
  • Latching speed: Variable between 10° - 0°.
  • Opening angle hinge side: 170°.
  • Opening angle non-hinge side: 120°.
  • UKCA and CE certified in compliance to BS EN 1154.
  • Same dimensions and design with or without mounting plate.
  • Fulfils barrier-free building requirements (DDA, CEN/TR 15894).

General information

Color

Silver

Finish

Satin

Shape

Rectangle

Length

57 mm

Width

272 mm

Height

64 mm

Warranty description

Ten year

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Controlled door closers

P21/410 Controlled door closers

Product range

Door Controls / ASSA ABLOY Door Closers

Specification data - Controlled door closers

Standard

To BS EN 1154, BS 8300.

Classification grades (minimum)

-

Category of use

3.

Durability

8.

Door closer power size

Adjustable 1-4.

Suitability for use on fire and smoke doors

1.

Safety

1.

Corrosion resistance

4.

Form

Overhead, face fixed.

Closer functions

Back check.

Controlled closing.

Latching.

Materials and finishes

-

Bodies

Stainless steel.

Arms

Stainless steel.

Casings

Stainless steel.

Colour

Silver.

Satin stainless steel.

Execution

Adjusting controlled door closers.

Fasteners for hardware.

Accessories

None.

Angle bracket A104.

Guidance for specification option:

For Guide Rail G193.

Height-adjustable guide rail G195.

Mechanical hold open device A152.

Guidance for specification option:

Not for fire and smoke protection doors.

Mechanical opening damper A153.

Show more

Sustainability data

Recyclability

-

Manufacturer guidance

Metals widely recycled.

Third party certifications

Third party certifications

EPD

EPD

Environmental Product Declaration - DC500
