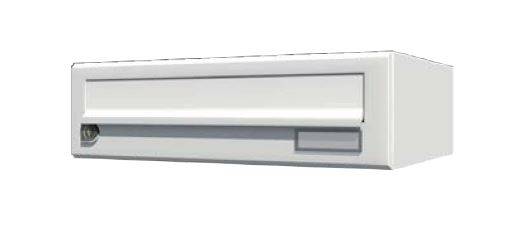

DAD 2010-1 mailboxes

Verified by manufacturer 2 months ago

DAD - DECAYEUX

Multiple mailboxes.

Jump to:
+44 (0)1233 630406 Website

Application

  • Suitable for use in blocks of flats and in projects which require a large number of letter boxes in an internal lobby area.
  • Suitable to be fitted internally or externally, on the wall, recessed into a wall or cladding, or free standing.

Description

Standard multiple mailboxes.


Because of its small size to student accommodation developments or projects which require a large number of letter boxes in an internal lobby area. The wide choice of surrounds and frames allow the units to be integrated with either the interior or exterior décor of the building, on the wall, recessed into a wall or cladding, or free standing. The mailboxes and other components can be powder coated in any RAL colour or in stainless steel.


A device is fitted as standard behind the flap to reduce the risk of mail theft. The boxes in this range have good waterproof features. All boxes have a door with a security DAD lock complete with two numbered keys. Extra keys available. Stainless steel hinges.


Features and benefits:

  • Space-saving postal box, conforms to British Standard EN 13724 (accepts A4 post without having to fold or bend the mail, and has an anti-theft baffle).
  • Royal Mail approved.
  • Robust metal fabrication.
  • Aperture restrictor for mail theft protection.
  • Can be approved by Secured by Design if fitted internally in a lobby, but unlikely to comply if installed outside (contact manufacturer for more details).

General information

Color

Beige

Yellow

Red

Blue

Green

Show more

Manufacturer guidance

All RAL colours are also available.

Height

110 mm

Length

270 mm

Width

375 mm

Finish

Powder-coated enamel

RAL

Silver anodized aluminium

Gold anodized aluminium

Bronze anodized aluminium

Show more

Material

Steel

Shape

Rectangle

Size

375 x 110 x 270 mm

Warranty description

Ten year

Uniclass

Pr_40_30_87_48 LockersPrimary
Pr_40_30_50_46 Letter boxes

CAWS

N10/220 Lockers

Specification data - Lockers

Performance requirements

To BS EN 13724, Royal mail compliant and Secured by Design Homes 2019 guide compliant.

Locker type

Free standing.

Wall mounted.

Dimensions

375 x 110 x 270 mm.

Material

Electro-galvanised steel.

Finish

Polyester powder coated.

Colour

1015 Light ivory.

1028 Melon yellow.

3002 Carmine red.

3020 Traffic red.

5003 Saphire blue.

5012 Light blue.

6005 Moss green.

6025 Traffic green.

7005 Mouse grey.

7016 Anthracite grey.

7031 Blue grey.

7040 Window grey.

8019 Grey brown.

9005 Jet black.

9006 White aluminium.

9007 Grey aluminium.

9010 Pure white.

9016 Traffic white.

RAL.

Guidance for specification option:

Any RAL colour available, insert requirements.

Fittings

Surround.

Stands.

Soft close flap.

Master key.

Anti-arson.

Electronic lock.

High security TARA16C lock.

Access control.

Permanent engraving with ink infill.

Sustainability data

Country of material origin

France

Country of product manufacture

France

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

Platform Compatible Version
Revit
-

1
