Cylindrical Security Portals
Verified by manufacturer 3 months ago
C1 Portal (single doors)
C1 Portal (single doors)
BRE Certificate
Certificate type
A highly secure interlock system which eliminates the risk of tailgating and stops unauthorised personnel gaining access to your secure area.
Application
- Data Centers
- Offices
- Financial
- Healthcare
- Research and development
- Government
- Local government
- Leisure
- Jewellers
- Prisons
Description
High Security anti-tailgating prevention:
A highly secure interlocking system, the cylindrical range of Security Portals prevent tailgating and unauthorised people from entering your building. The interlocking door system helps to maintain the secure line with only one door open at any one time.
Ultrasonic sensors prevent more than one person passing through the portal at once, providing ultimate security to protect your building 24/7.
Delivering on our Security Promise:
The cylindrical range of Security Portals are available from 988 mm (C1) up to 1911 mm (C190), with the option of having LPS 1175: Issue 8 for ultimate security.

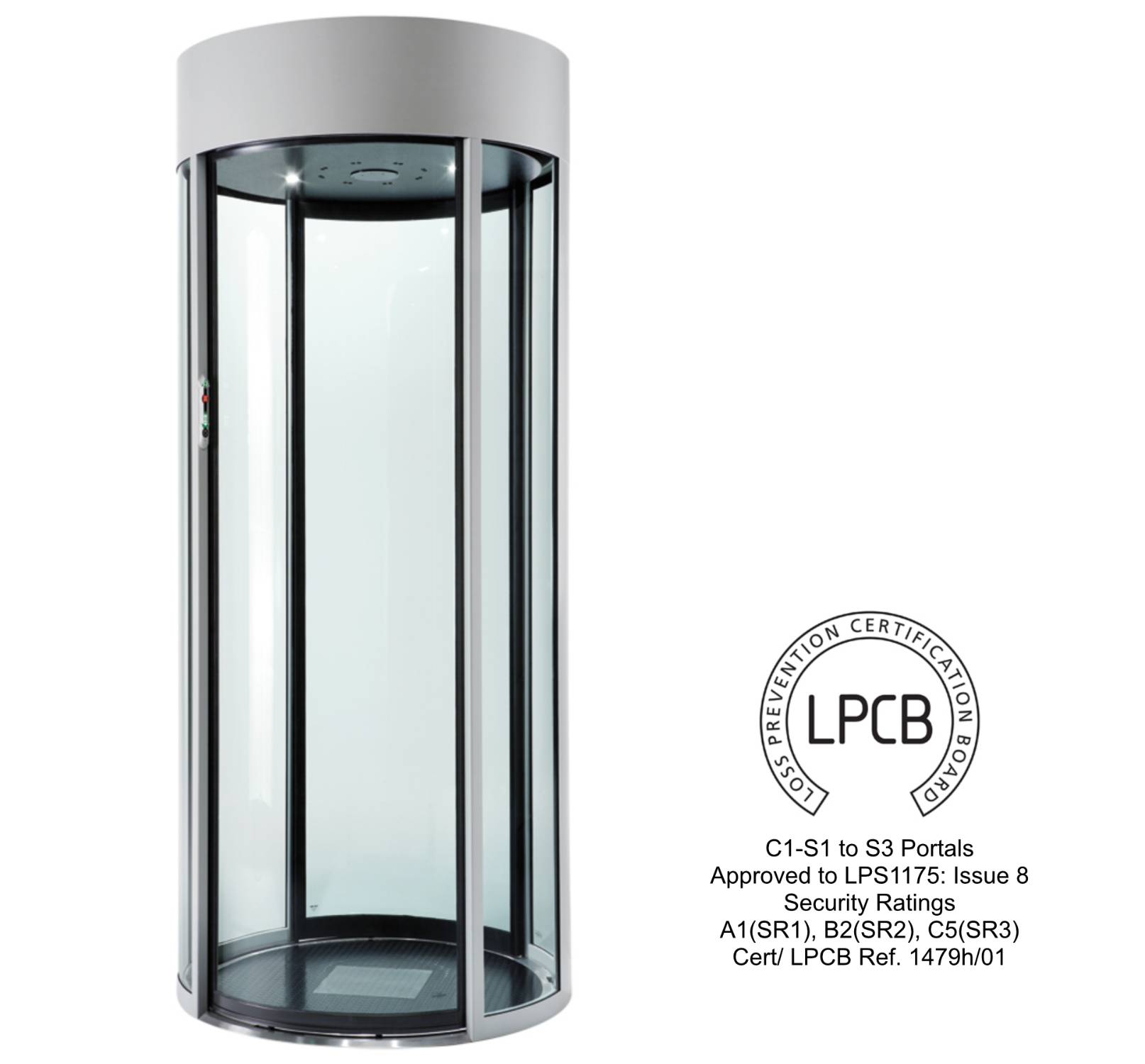

C1 Security Portal (988 mm diameter) - a compact design, ideal where space is limited.

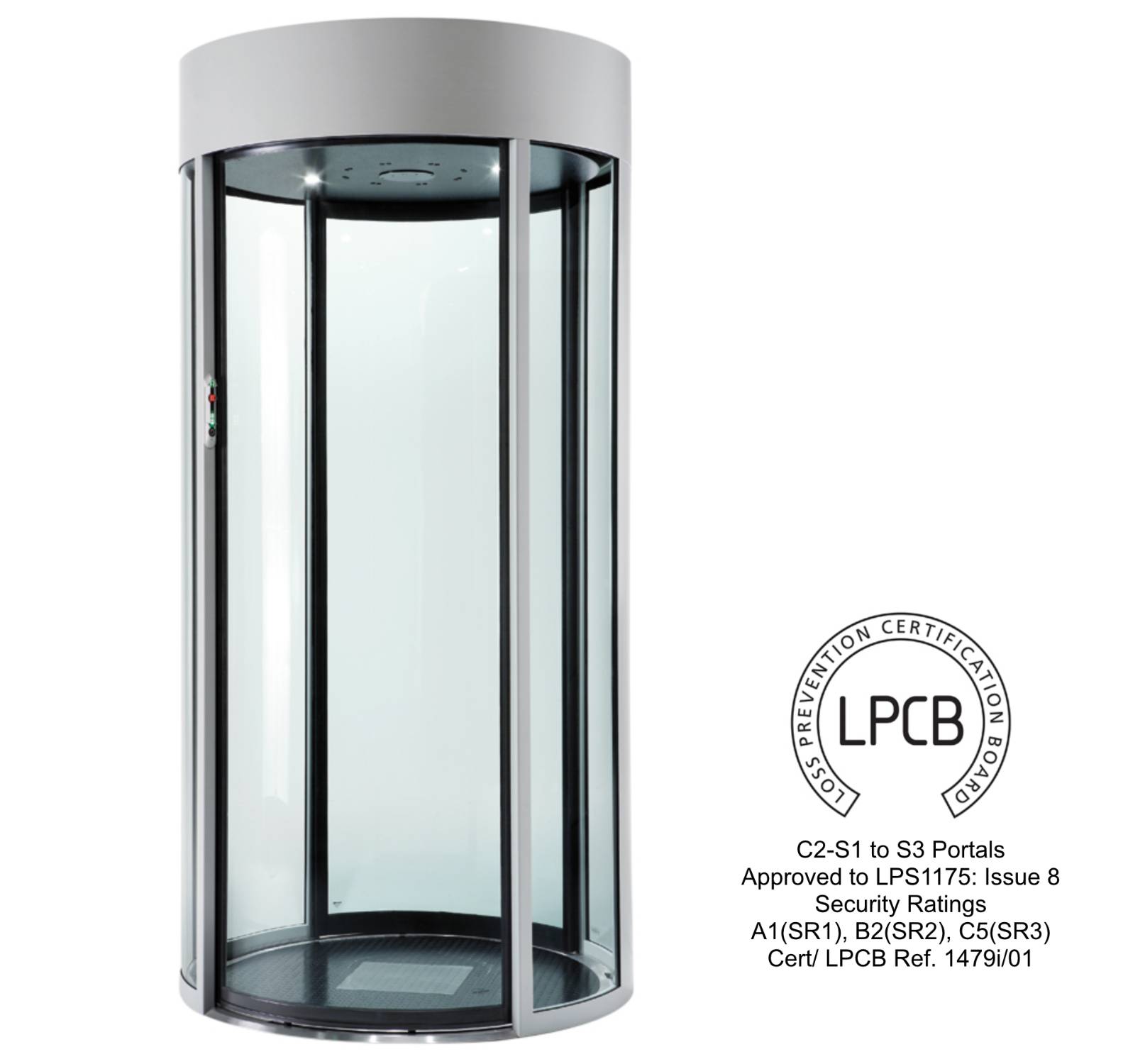

C2 Security Portal (1150 mm diameter) - a larger door opening width provides more room for those entering or exiting the portal.
C3 Security Portal (1381 mm diameter) - single or bi-parting doors and a larger internal cabin space provide additional user comfort.
Features and benefits:
- A stylish and modern design
- Cylindrical shape for space-saving
- APD – Anti-piggybacking device
- Approved to LPS 1175: Issue 8 A1(SR1), B3(SR2) & C5(SR3)
General information
Color | Other Guidance for specification option: Any RAL colour. Sliding door frames RAL 9005. |
Finish | Brushed Guidance for specification option: Steel cladding. Polished Guidance for specification option: Steel cladding. Other Guidance for specification option: Aluminium cladding. Powder-coated |
Material | Steel Glass Guidance for specification option: Vandal Resistant glass P2A-EN 356. Vandal Resistant glass P4A-EN 356. Vandal Resistant glass P6B-EN 356/ Bullet Resistant glass BR3-EN 1063. Vandal Resistant glass P7B-EN 356/ Bullet Resistant glass BR4-EN 1063. |
Shape | Circle |
Width | 1381 mm 1151 mm 988 mm |
Height | 2382 mm |
Warranty description | One year Guidance for specification option: Extended warranty available. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Specification data - High-security doorsets
Third-party certification | Secured by Design / Loss Prevention Certification Board. |
Security performance | To LPS 1175: Issue 8 A1(SR1), B3(SR2) and C5(SR3), FB2/NS EN 1522 (top canopy) and FB4/NS EN 1522 (metal structure). |
Frame | Steel. |
External diameter | 988 mm. |
Internal diameter | 1200 mm. |
Internal height | 2048 mm / 2050 mm. Guidance for specification option: Surface mounted / Floor recessed. |
Height | 2320 mm / 2382 mm. Guidance for specification option: Surface mounted / Floor recessed. |
Control | Service mode keyswitch. Multi-function control panel. |
Glass | Bullet resistant glass BR3-EN 1063. Bullet resistant glass BR4-EN 1063. Vandal resistant glass P2A-EN 356. Vandal resistant glass P4A-EN 356. Vandal resistant glass P6B-EN 356. |
Emergency release | Emergency lever. Emergency handle. Emergency crank. |
Type | Two doors (single doors). |
Safety features | Anti-slip Floor mat; Emergency unlocking device; Fail secure; IR safety sensors; Internal LED light; Fire alarm signal. |
Finish | Brushed. Guidance for specification option: Steel cladding. Polished. Guidance for specification option: Steel cladding. Aluminium. Guidance for specification option: Aluminium. Powder-coated. |
Sustainability data
Country of product manufacture | Italy |
Material | Steel Glass Guidance for specification option: Vandal Resistant glass P2A-EN 356. Vandal Resistant glass P4A-EN 356. Vandal Resistant glass P6B-EN 356/ Bullet Resistant glass BR3-EN 1063. Vandal Resistant glass P7B-EN 356/ Bullet Resistant glass BR4-EN 1063. |
Manufacturing plant location |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
BRE Certificate
Meesons C3 Security Portal LPS1175 Certificate (Two single doors)
BRE Certificate
Meesons C3 Security Portal LPS1175 Certificate (Bi-parting doors)
Literature
Meesons Cylindrical Portals Range Brochure
Case studies
Francis Crick Institute, London
PureGym, Nationwide
