C190 Cylindrical Security Portal - High-security doorsets
Verified by manufacturer 14 days ago
BRE Certificate
Certificate type

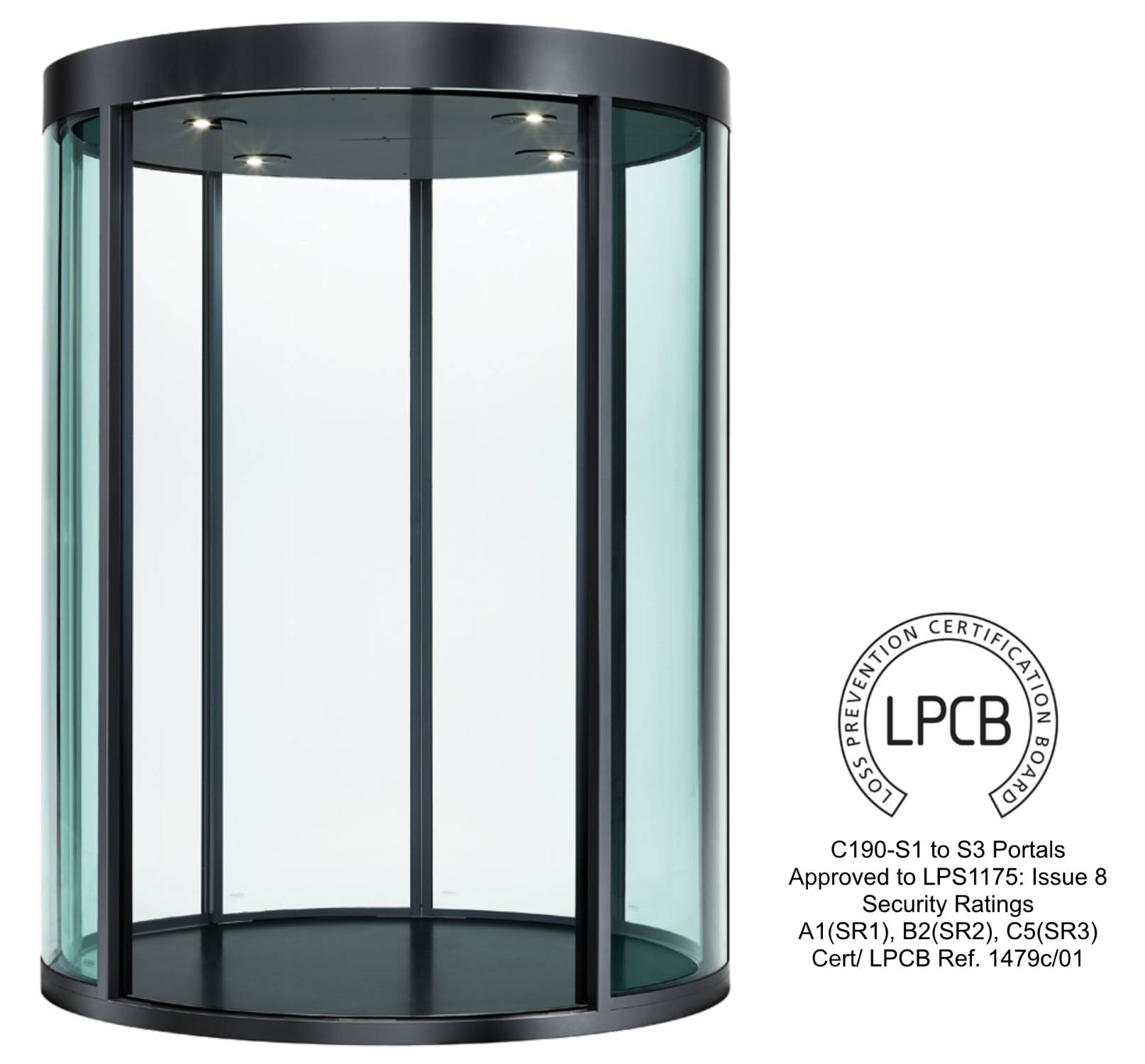

The C190 is our largest cylindrical Security Portal which can enable a higher throughput of users or can act as a secure interlocking door to prevent tailgating.
Application
- Offices
- Financial
- Healthcare
- Research and development
- Government
- Local government
- Jewelers
Description
Interlock or simultaneous transits
The C190 Cylindrical Security Portal is specially designed for entrance façades and is suitable for wheelchair users, making it a great alternative to a revolving door. The C190 can be configured to prevent tailgating via a single person transit or simultaneous transits using a radar sensor.
Simple and comfortable use
With a spacious 1200mm wide entrance, the C190 offers comfortable access for users with a wheelchair, pram, or luggage. The large internal dimensions ensure one door can always remain closed to maintain a secure line during transits.
Total security in a portal
The C190 is available certified to LPS1175: Issue 8 A1(SR1), B3(SR2), and C5(SR3) and is Secured by Design accredited. With a configurable day or night mode, this portal can provide the appropriate security to meet the needs of each facility 24/7.
Features and benefits:
- Single or simultaneous transits
- Wide 1200 mm entrance access
- Configurable transits modes (e.g. day/ night mode)
- Suitable for users with a wheelchair, pram, or luggage
General information
Color | Other |
Finish | Brushed Polished Other Powder-coated |
Material | Steel Glass |
Shape | Circle |
Width | 1911 mm |
Height | 2220 mm 2295 mm 2460 mm |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - High-security doorsets
Classification data | |
Third-party certification | Secured by Design / Loss Prevention Certification Board. |
Security performance | To LPS 1175: Issue 8 A1(SR1), B3(SR2) and C5(SR3), FB2/NS EN 1522 (top canopy). |
Frame | Steel. |
External diameter | 1911 mm. |
Internal diameter | 1760 mm. |
Internal height | 2048 mm. 2050 mm. |
Control | Service mode keyswitch. Multi-function control panel. |
Glass | Bullet resistant glass BR3-EN 1063. Bullet resistant glass BR4-EN 1063. Vandal resistant glass P2A-EN 356. Vandal resistant glass P4A-EN 356. Vandal resistant glass P6B-EN 356. Vandal resistant glass P7B-EN 356. |
Emergency release | Emergency lever. Emergency handle. Emergency crank. |
Model | Four door (bi-parting doors). |
Safety features | Anti-slip Floor mat. Emergency unlocking device. Fail secure. IR safety sensors. Internal LED light. Fire alarm signal. |
Sustainability data
Country of product manufacture | Italy |
Material | Steel Glass |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
BRE Certificate
Meesons C190 Security Portal LPS1175 Certificate
Literature
Meesons Cylindrical Portals Range Brochure
Case studies

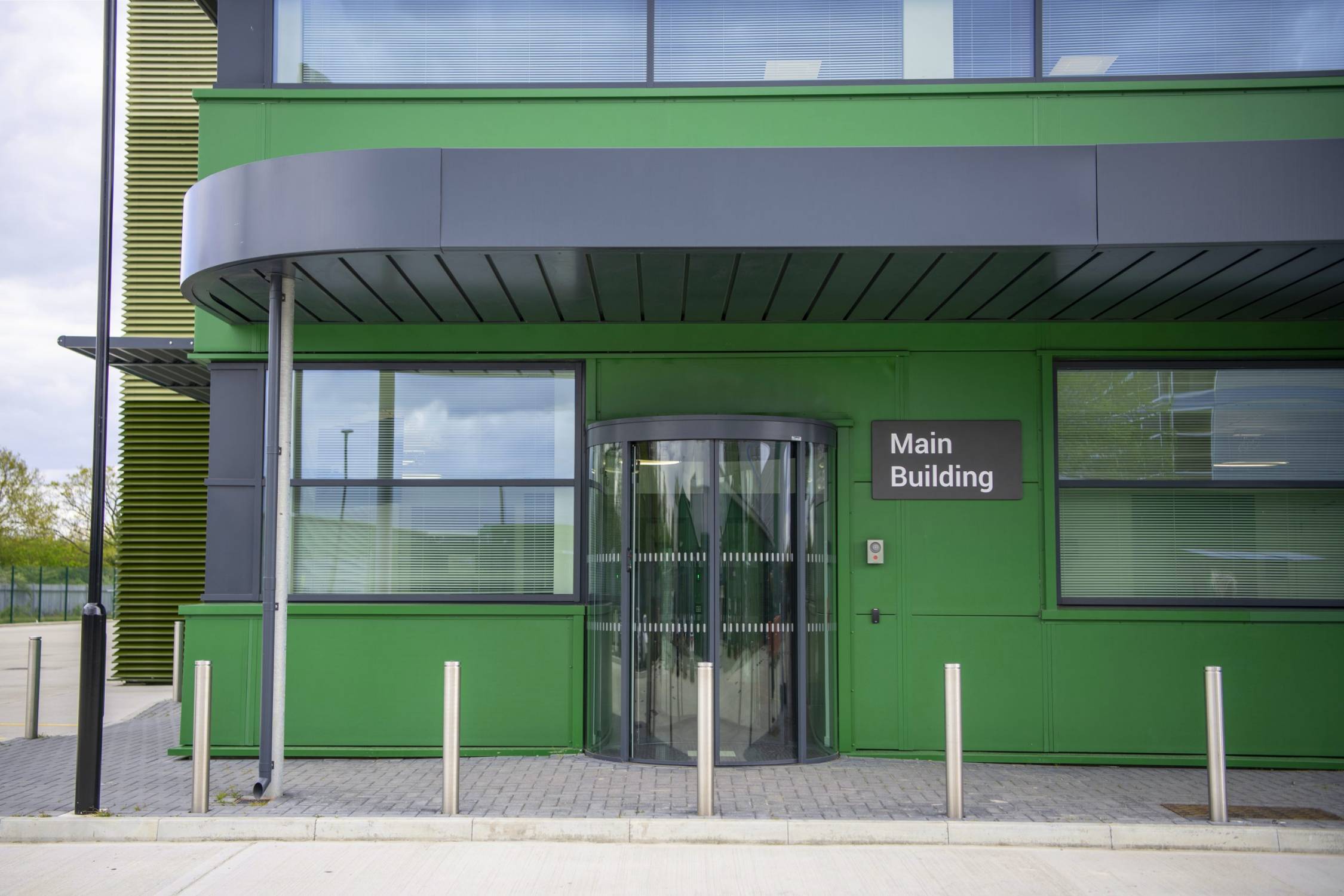

London 1 Data Centre, Dagenham
