FPJ140 2HP Security Portal - Secure Portal Interlocking Door System

Verified by manufacturer 18 hours ago

Meesons A I Ltd Product certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

A highly secure spacious portal interlocking door system with two sets of automatic curve sliding doors.

Jump to:
+44 (0)1756 797727 Website

Application

Secure spacious portal interlocking door system suitable for the following applications:

  • Data centres.
  • Offices.
  • Financial.
  • Healthcare.
  • Research and development.
  • Government.
  • Local government.
  • Prisons.

Description

High security anti-tailgating prevention:

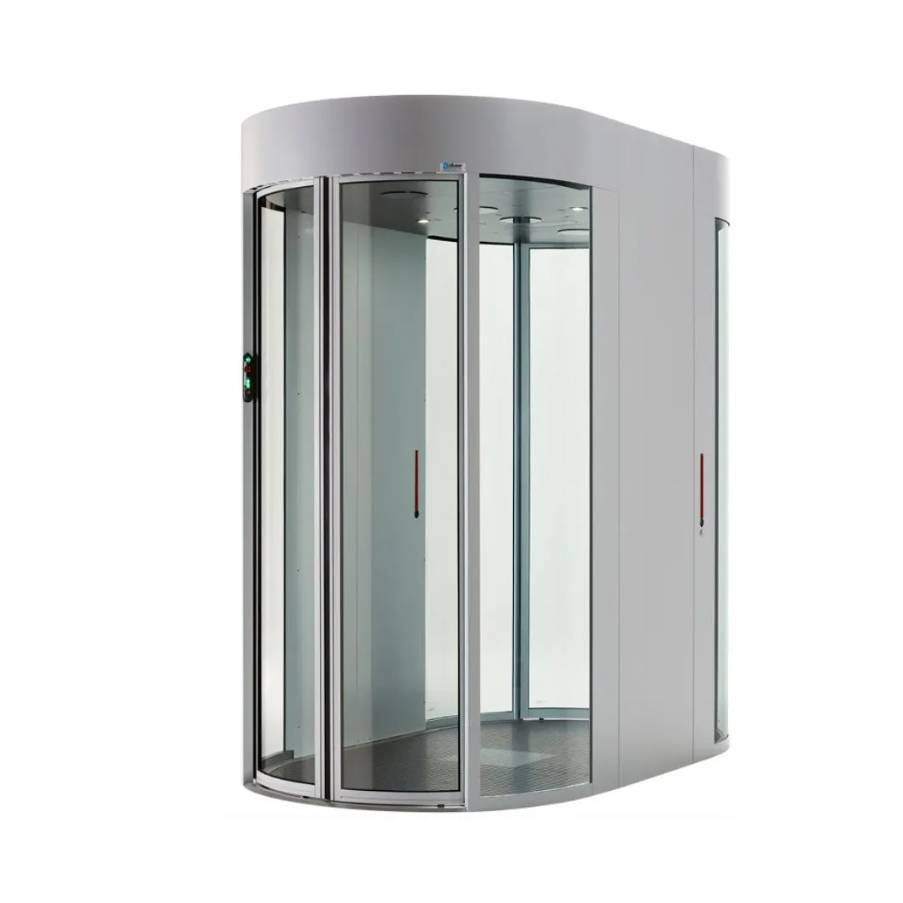

The FPJ140 2HP Security Portal is a highly secure portal interlocking door system with two sets of automatic curve sliding doors. Its 895 mm wide door provides a spacious entrance whilst ensuring your secure area can only be accessed by authorized personnel.



Delivering on Security:

To ensure the FPJ140 2HP security portal delivers the required level of protection, the FPJ140 2HP has been subjected to intensive third-party testing, withstanding a forced attack in accordance with LPS 1175: Issue 8 to Security Ratings A1 to C5, providing confidence and assurance that the FPJ140 2HP security portal has proven levels of protection against physical attack.



Customizable elements:

The FPJ140 2HP security portal can be customized to suit project requirements with infill panels ranging from 200 to 1000 mm in length to increase the internal depth of the portal, improving user comfort and creating a greater space for wheelchair users, cycle entrances or goods access.



Key features and benefits:

  • Automatic curved sliding doors create a secure entrance.
  • Customizable security levels – up to class 3 and 4 attack resistance.
  • Approved to LPS 1175: Issue 8 A1(SR1), B3(SR2), C5(SR3).
  • Secured by Design accredited.



Security:

  • Attack Rated to LPS 1175: Issue 8 A1.
  • Attack Rated to LPS 1175: Issue 8 B3.
  • Attack Rated to LPS 1175: Issue 8 C5.
  • Secured by Design (SBD) accredited.

General information

Color

Silver

Other

Guidance for specification option:

Any RAL finish. Sliding door frames RAL 9005.

Finish

Polished

Guidance for specification option:

Steel cladding.

Brushed

Guidance for specification option:

Steel cladding.

Powder-coated

Material

Steel

Glass

Guidance for specification option:

Vandal Resistant glass P2A-EN 356.

Vandal Resistant glass P4A-EN 356.

Vandal Resistant glass P6B-EN 356/ Bullet Resistant glass BR3-EN 1063.

Vandal Resistant glass P7B-EN 356/ Bullet Resistant glass BR4-EN 1063.

Shape

Other

Manufacturer guidance

D Shaped, Half Portal.

Length

1907 mm

Width

1381 mm

Height

2320 mm

Warranty description

One year

Guidance for specification option:

Standard Warranty - 12 months. Extended Warranty Available.

Uniclass

Pr_30_59_24_37 High-security doorsetsPrimary
Pr_30_59_24_80 Sliding door and partition sets

CAWS

L20/490 Automatic doors

L20/480 Doorsets

L20/55 Doorsets

SKU Code

FPJ140 2HP

Specification data - High-security doorsets

Classification data

Security performance

To LPS 1175, SR 1.
To LPS 1175, SR 2.
To LPS 1175, SR 3.

Frame

Steel.

Glass

Bullet Resistant glass BR3 - EN 1063.
Bullet Resistant glass BR4 - EN 1063.
Vandal Resistant glass P4A - EN 356.
Vandal Resistant glass P6B - EN 356.
Vandal Resistant glass P7B - EN 356.

Emergency release

Emergency lever.
Emergency handle.
Emergency crank.

Control

Service mode keyswitch.
Multi-function control panel.

Finish/ Colour

Polished steel.
Brushed steel.
Aluminium, RAL pearl colours.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Manufacturer guidance

Cladding.

Safety features

Anti-slip floor mat.
Emergency unlocking device.
Fail secure.
IR safety sensors.
Internal LED light.
Fire alarm signal.

Third-party certification

Secured by Design and Loss Prevention Certification Board.

Internal Size

1160 x 1725 x 2048 mm.

Manufacturer guidance

Width x depth x height.

External size

1387 x 1907 x 2320 mm.

Manufacturer guidance

Width x depth x height.

Sustainability data

Country of product manufacture

Italy

Material

Steel
Glass

Guidance for specification option:

Vandal Resistant glass P2A-EN 356.

Vandal Resistant glass P4A-EN 356.

Vandal Resistant glass P6B-EN 356/ Bullet Resistant glass BR3-EN 1063.

Vandal Resistant glass P7B-EN 356/ Bullet Resistant glass BR4-EN 1063.

Product certifications

BRE Certificate

Meesons FPJ140 2HP Security Portal LPS1175 Certificate
