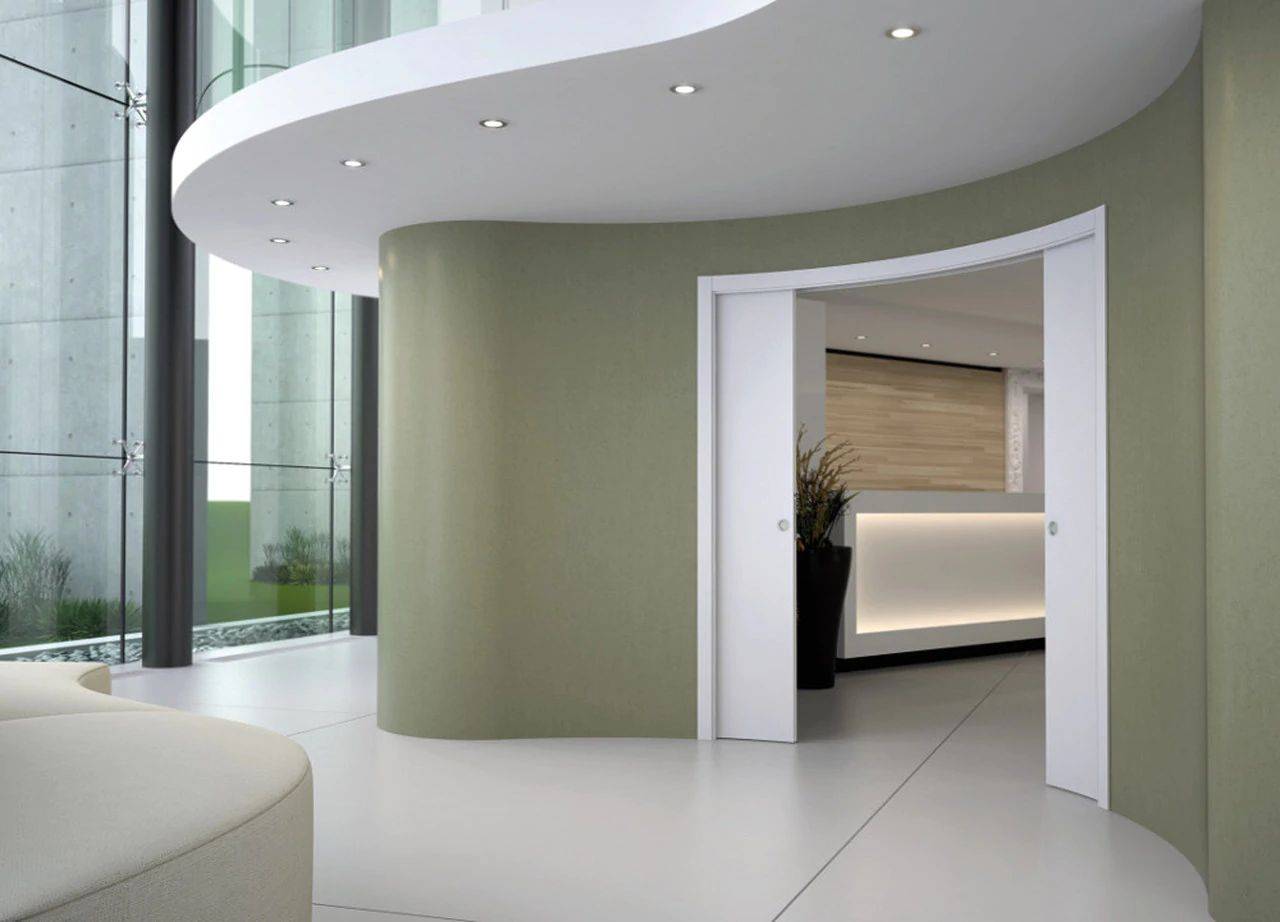

Curved Pocket Door System

Verified by manufacturer 5 months ago

Single leaf, 1000 mm radius

Eclisse UK Variant:

Top hung single or double curved sliding pocket door system supplied with 40 mm door.

Jump to:
BOS
+44 (0)333 5770828 Website

Application

Internal sliding pocket doors.

Description

Top hung single or double curved sliding pocket door system supplied with 40 mm door.


Features and benefits:

  • A spectacular curved sliding door system to re-interpret the division of internal space.
  • Various sizes and radii are available, adaptable to a wide range of requirements.
  • Double door systems are also available.
  • Curved door available in a variety of real wood veneers including cherry walnut (standard option), mahogany, oak, beech, walnut and cherry.
  • The runners are specially constructed to slide in the curved track and adapt to different radii of curvature.
  • The pocket for the curved door is constructed from modular metal sheet.
  • Wide range of standard sizes available. Non-standard sizes available up to 1200 x 2600 mm with various radii.
  • The single curved pocket door system can have a left or right opening action.
  • Sliding system, doors, door jambs and final architraves all supplied.
  • Complete with full wooden jamb kit for a professional finish.
  • Adjustable front and rear door stops.

General information

Color

Brown

Guidance for specification option:

Real wood veneers.

Warranty description

15 year

Guidance for specification option:

On the complete Eclisse steel pocket system; consult manufacturer for details.

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/525 Sliding pocket doors

L20/65 Sliding pocket doors

Specification data - Sliding door and partition sets

Performance

Internal.

Arrangement

Single leaf top hung.

Track system

Manufacturer's standard.

Door leaves

-

Construction

Manufacturer's standard.

Finish and colour

Painted.

Guidance for specification option:

Standard. Insert colour requirements.

Cherry walnut, stain-ready.

Guidance for specification option:

Standard.

Beech.

Cherry.

Mahogany.

Oak.

Walnut.

Wenge.

Operation

Manual.

Hardware

OSO8 Polished brass simple flush pull.

OSC4 Antique brass simple flush pull.

OSC2 Polished chrome simple flush pull.

OSC1 Satin chrome simple flush pull.

OSO3 Polished brass bathroom lock.

OSA Antique brass bathroom lock.

OSO1 Polished chrome bathroom lock.

OSS Satin chrome bathroom lock.

As schedule.

Not required.

Guidance for specification option:

Please specify whether cut-outs in door(s) for flush pulls are required, as they are a standard feature.

Execution

Use two layers of 6 mm plasterboard on each side (not supplied). Install at finished floor level. Contact manufacturer for detailed installation instructions.

Product Reference

Curved Single

Curve radius

1000 mm.

Passage width

600 mm.

Guidance for specification option:

Overall width: 1250 mm.

700 mm.

Guidance for specification option:

Overall width: 1390 mm.

800 mm.

Guidance for specification option:

Overall width: 1545 mm.

900 mm.

Guidance for specification option:

Overall width: 1650 mm.

1000 mm.

Guidance for specification option:

Overall width: 1760 mm.

Passage height

2000/ 2100 mm.

Guidance for specification option:

Overall height: 2158/ 2258 mm.

Finished wall thickness

125 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Recyclability

85%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %

Guidance for specification option:

Aluminium: 56%.

Steel: 20%.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Eclisse Sliding Pocket Door Systems - Future Of Doors

Eclisse Sliding Pocket Door Systems - Future Of Doors

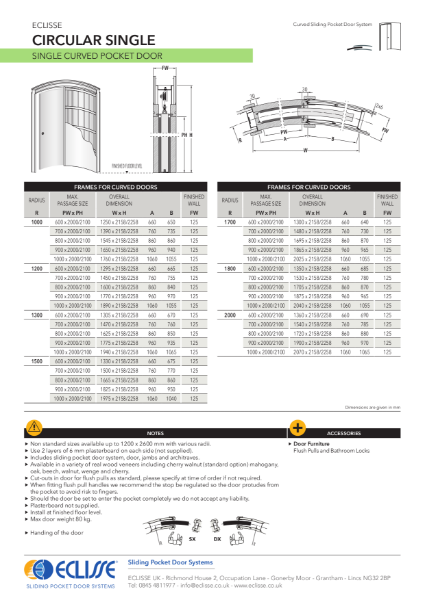

Curved  SINGLE Pocket Door System

Curved SINGLE Pocket Door System

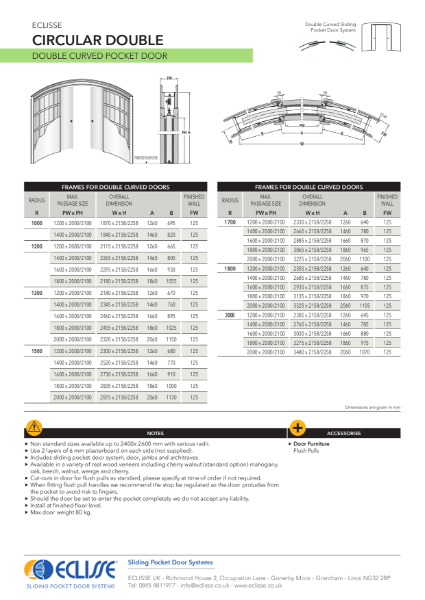

Curved  DOUBLE Pocket Door System

Curved DOUBLE Pocket Door System
