CS Allway® DGTP and GTP Series Floor Joint Covers - Dual Gasket
Verified by manufacturer 9 days ago

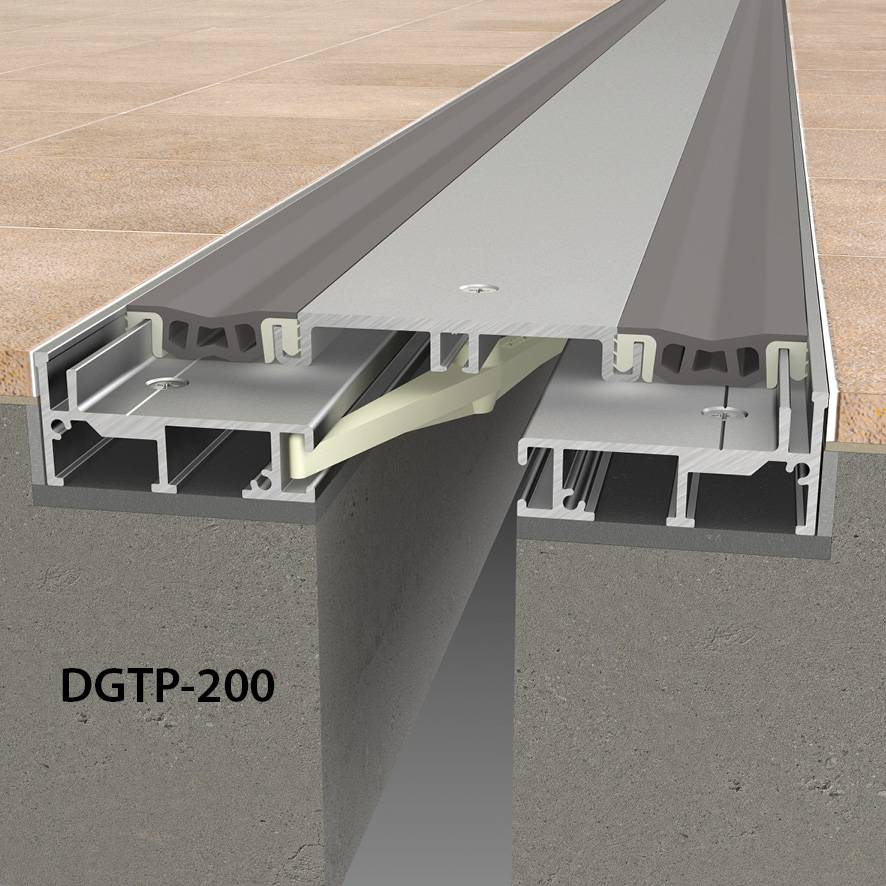

Allway® DGTP-200 floor-to-floor covers
Allway® DGTP-200 floor-to-floor covers
Recess-mounted, dual-gasket flush floor covers designed for applications with large movement requirements.
Application
Floor joint applications with large movement requirements in areas where flush finish and ease of cleaning are important.
Description
Recess-mounted, dual-gasket flush floor covers designed for applications with large movement requirements.
Deeper models can be installed over varying joint widths. Shallower models require a consistent joint width.
Features and benefits:
- Joint width: up to 110 mm.
- Horizontal movement: up to +38 mm.
- Vertical movement: up to ±15 mm.
- Lateral movement: up to ±8 mm.
- Load capability: 250 kg point load.
- Easy to clean, suited to interiors where hygiene is important.
- Suitable for areas where light wheeled equipment is in use.
- Fixing:
- Floor fixings (by others) to suit substrate at 450 mm centres and to achieve minimum 40 mm embedment.
- Wall fixings (by others) to suit substrate at 450 mm centres.
General information
Color | Silver Black Grey White Beige |
Finish | Anodized Centre plate and wall frames. Mill Floor side frames. |
Material | Aluminium |
Uniclass | |
CAWS | E40/545 Compressible sealing strip system E40/545 Compressible sealing strip system |
Product range |
Specification data - Strip movement joints
Joint width | 35–58 mm. |
Edging | - |
Material | Aluminium. |
Finish | Natural anodized centre plate. |
Colour | Silver. |
Insert | - |
Material | Co-extruded Thermoplastic Rubber (TPR) gasket. |
Colour | Black.Grey.Greige.White. |
FrameDepth | 30 mm. |
Barriers | Not required. Fire barrier. Consult manufacturer for details and sizes, and insert requirements. Acoustic barrier. Consult manufacturer for details and sizes, and insert requirements. Moisture barrier. Consult manufacturer for details and sizes, and insert requirements. |
Movement | Horizontal: ±20 mm; vertical: ±8 mm; lateral: ±6 mm. |
Dimensions of recess (w x h) | Minimum recess width/ depth required: 175/ 35 mm. |
Dimensions (visible width)Exposed surface. | 165 mm. |
