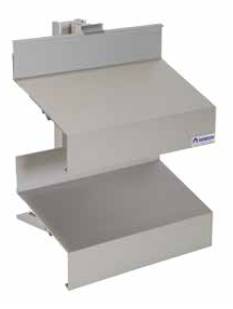

Continuous Louvre Blade Linius L.120
Verified by manufacturer 28 days ago
Anodized
Anodized
Extruded aluminium standard louvre blade with large free area.
Application
Suitable for continuous louvre systems.
Description
Extruded aluminium profile for large spans at 120 mm pitch with an optimal air flow. Improved installation speed thanks to a small number of clips and blades.
Features and benefits:
- Standard blade.
- Extruded aluminium profile.
- Pitch of 120 mm.
- Optimal air flow.
- Anodized or powder-coated finish.
- Mesh fixed to rear of the support structure.
- Blades clip-locked onto their supports.
General information
Color | Other Silver |
Finish | Anodized Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/54 Louvres H11/437 Louvres L10/650 Metal louvres H11/140 Louvres |
Product range |
Specification data - Aluminium louvre blades
Profile | 'Z' profile. |
Material | Extruded aluminium alloy (EN AW 6063 T66). |
Finish | Anodized.Guidance for specification option: 20 micron. |
Colour | Self-coloured. |
Texture | Guidance for specification option: Consult manufacturer and insert requirements. |
Mounting arrangement | Clip fixing to mullions. |
Blade support clips | Single blade support (L.120.11), 28 mm wide. Double blade support for thermal expansion (L.120.12), 45 mm wide. Guidance for specification option: Connecting piece for two blades. Single blade support, 120–240 mm pitch (type L.120.13), 28 mm wide. Double blade support for thermal expansion, 50–100 mm pitch (L.120.14), 34 mm wide. Guidance for specification option: Connecting piece for two blades. |
Pitch | 120 mm. |
Depth | 90 mm. |
Height | 120 mm. |
Air flow | K-Factor, supply: 9.47. Manufacturer guidanceAerodynamic resistance to air flow. |
Free area | Visual free area: 66%. |
Span | 2300 mm. Manufacturer guidanceMaximum unsupported span between two mullions (at qp 800 Pa wind pressure). |
Doors | Not required. Single door with standard Renson® hardware and rotating on pivot. Double doors with standard Renson® hardware and rotating on pivot. |
Integral accessories | Mesh fixed to rear of the support structure. |
Sustainability data
Country of product manufacture | United Kingdom |
