Continuous Louvre Blade Linius L.050

Verified by manufacturer 2 months ago

Anodized

Renson Fabrications Ltd Variant:

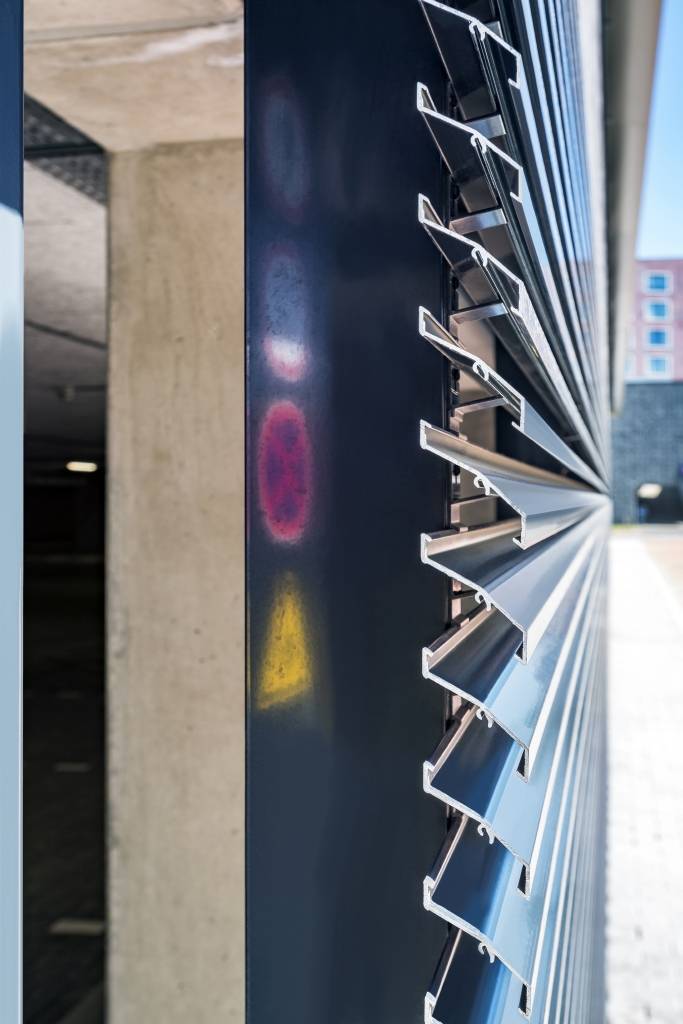

Continuous extruded aluminium blade.

Jump to:
+44 (0)1622 754123 Website

Application

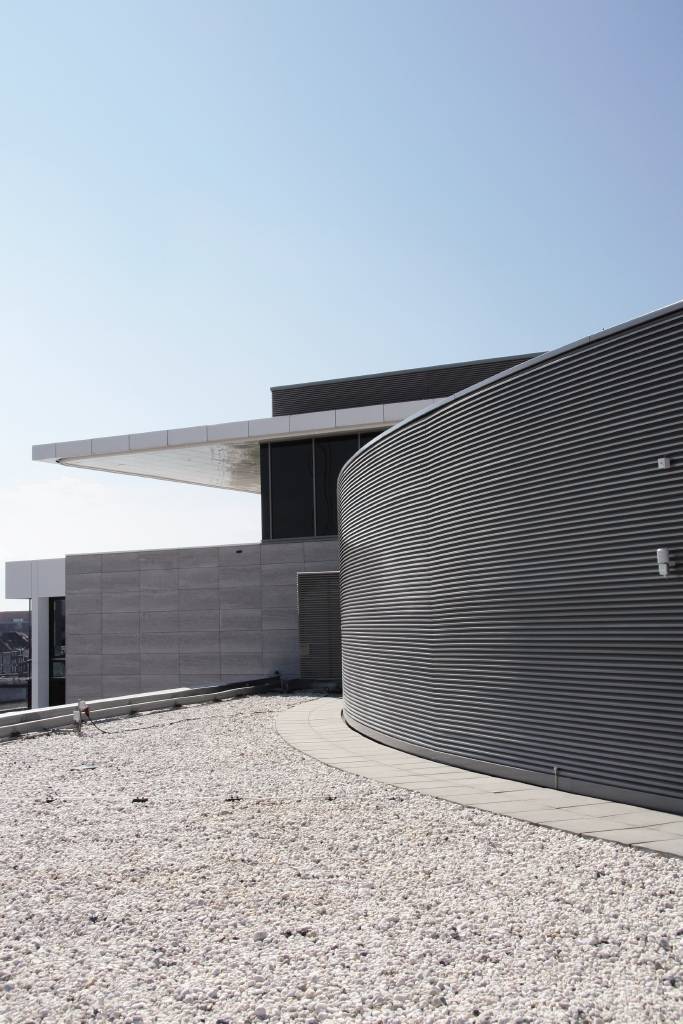

Suitable for continuous louvre systems.

Description

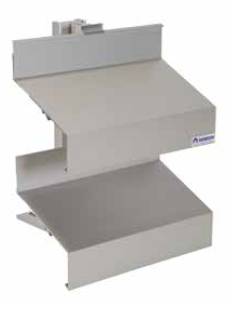

Heavy-duty extruded aluminium profile with very high air flow.


Features and benefits:

  • Extruded aluminium profile.
  • Pitch of 50 mm.
  • Variable 50 to 100 mm pitch is possible with blade supports of the type L.050.13 and L.050.14.
  • Very high air flow.
  • Anodized or powder-coated finish.
  • Mesh fixed to rear of the support structure.
  • Optional top and bottom blades for optimal finish.

General information

Color

Other

Finish

Powder-coated

Anodized

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_48_02 Aluminium louvre bladesPrimary

CAWS

L10/54 Louvres

L10/650 Metal louvres

H11/437 Louvres

H11/140 Louvres

Product range

Continuous Louvres System / Standard Blades

Specification data - Aluminium louvre blades

Profile

'Z' profile.

Material

Extruded aluminium alloy (EN AW 6063 T66).

Finish

Anodized.

Guidance for specification option:

20 micron.

Colour

Self-coloured.

Texture

Guidance for specification option:

Consult manufacturer and insert requirements.

Mounting arrangement

Clip fixing to mullions.

Blade support clips

Single blade support, 50 mm pitch (L.050.11), 28 mm wide.

Double blade support for thermal expansion, 50 mm (L.050.12), 34 mm wide.

Guidance for specification option:

Connecting piece for two blades.

Single blade support, 50–100 mm pitch (type L.050.13), 28 mm wide.

Double blade support for thermal expansion, 50–100 mm pitch (L.050.14), 34 mm wide.

Guidance for specification option:

Connecting piece for two blades.

Pitch

50 mm.

Height

41 mm.

Depth

56 mm.

Air flow

K-factor: 12.14.

Manufacturer guidance

Aerodynamic resistance to air flow.

Free area

Visual free area: 70%.
Physical free area: 49%.

Special top blade

Not required.

Top blade (L.050.02).

Guidance for specification option:

Available for attractive top connection.

Blade

Not required.

Long bottom blade (L.050.03).

Short bottom blade (L.050.04).

Manufacturer guidance

Bottom blade.

Integral accessories

Mesh fixed to rear of the support structure.

Mesh with integrated insect netting (L.050IM1) fixed to the rear of the support structure.

Mesh with integrated bird netting (L.050IM2) fixed to the rear of the support structure.

Doors

Not required.

Single door with standard Renson® hardware and rotating on pivot.

Double doors with standard Renson® hardware and rotating on pivot.

Sustainability data

Country of product manufacture

United Kingdom
