Continuous Louvre Blade Linius L.060HF
Verified by manufacturer 28 days ago
Anodized
Anodized

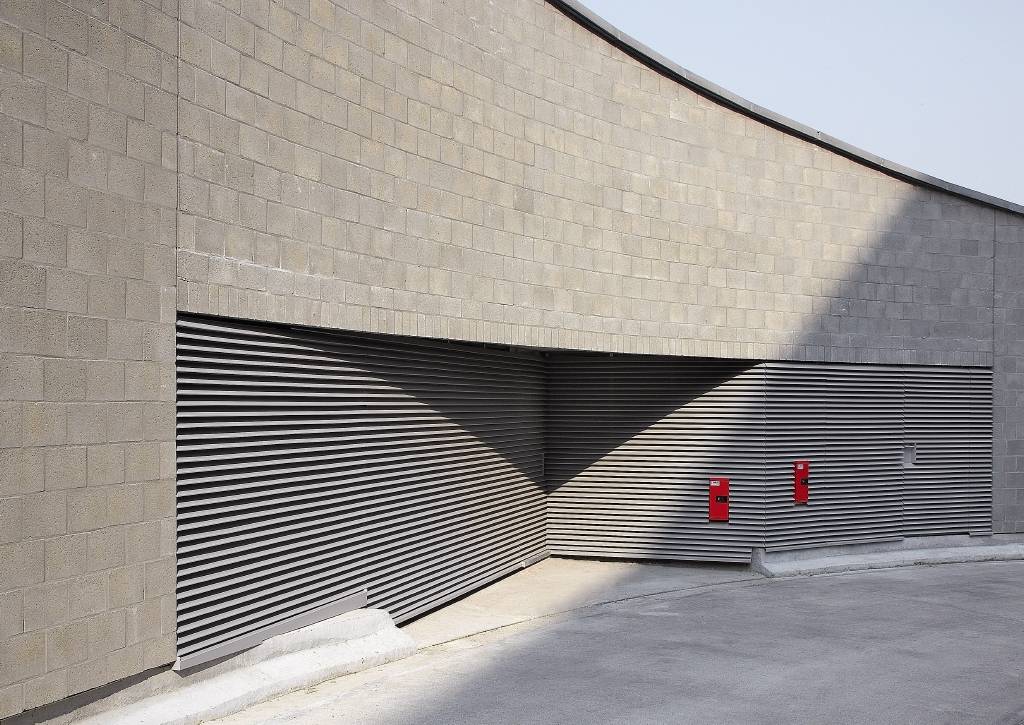

Extruded aluminium blade with large free area.
Application
- Suitable for continuous louvre systems.
- Particularly suitable where a large airflow is required.
Description
Extruded aluminium louvre profile with minimal air flow resistance. Particularly suitable where a large airflow is required in combination with considerable optical density and a sharp design.
Features and benefits:
- Extruded aluminium profile.
- Pitch of 60 mm.
- Minimal air flow resistance.
- Anodized or powder-coated finish.
- Mesh fixed to rear of the support structure.
- Blades clip-locked onto their supports.
General information
Color | Other Silver |
Finish | Powder-coated Anodized |
Material | Aluminium |
Shape | Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/54 Louvres H11/437 Louvres L10/650 Metal louvres H11/140 Louvres |
Product range |
Specification data - Aluminium louvre blades
Profile | 'Z' profile. |
Material | Extruded aluminium alloy (EN AW 6063 T66). |
Finish | Anodized.Guidance for specification option: 20 micron. |
Colour | Self-coloured. |
Texture | Guidance for specification option: Consult manufacturer and insert requirements. |
Mounting arrangement | Clip fixing to mullions. |
Blade support clips | Single blade support (L.060HF.11), 28 mm wide. Double blade support for thermal expansion (L.060HF.12), 45 mm wide. Guidance for specification option: Connecting piece for two blades. |
Pitch | 60 mm. |
Height | 60 mm. |
Depth | 78 mm. |
Air flow | K-Factor, supply: 4.60. Manufacturer guidanceAerodynamic resistance to air flow. |
Free area | Visual free area: 90%. |
Integral accessories | Mesh fixed to rear of the support structure. |
Doors | Not required. Single door with standard Renson® hardware and rotating on pivot. Double doors with standard Renson® hardware and rotating on pivot. |
Sustainability data
Country of product manufacture | United Kingdom |
