Conservation Single and French Timber Doors

Verified by manufacturer 2 months ago

Mumford & Wood Ltd

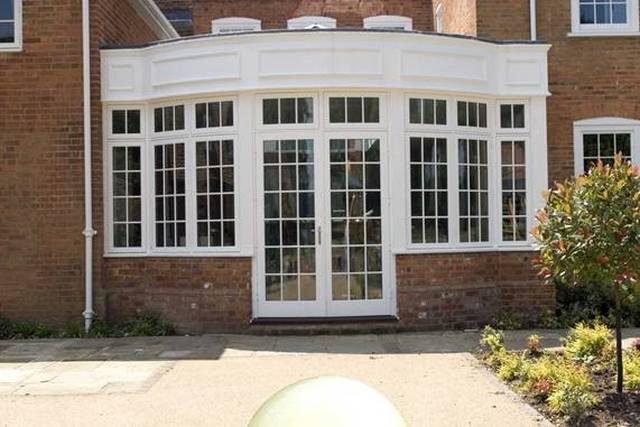

Timber / wooden conservation French doorsets with traditional profiles to complement the Sash and Casement Window products.

Jump to:
BOS
 +44 (0)1621 818155 Website

Application

Suitable for any residential, commercial properties and conservation areas.

Description

Our traditionally styled timber French Doors provide outstanding high-security performance equipped with multi-point locking systems.


Our timber French Doors, like all our Conservation range, can be tailored to suit your design requirements using our various glazing bar and moulding options along with our many traditional panel styles.

General information

Color

White

Manufacturer guidance

Colours from the RAL classic range, colour matching and stains also available.

Finish

Painted

Stained

Material

Wood

Timber

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

-

Manufacturer guidance

Timber: 30; Glazing, ironmongery and seals: 10; Paint finish: 10; Stain finish: 5.

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/420 Wood doorsets

L20/55 Doorsets

Product range

Classic Range

Specification data - Wood doorsets

Configuration

Double leaf, open in.

Double leaf, open out.

Single leaf, open in.

Single leaf, open out.

Doorset size

Up to 3000 mm tall.

Manufacturer guidance

Insert requirements or refer to a drawing or schedule.

Performance

-

Acoustic performance

Up to 43dB Rw (39dB Rw+Ctr) subject to chosen glass specification.

Thermal

1.5 or better subject to chosen specification.

Intruder resistance

-

Minimum requirement

PAS24:2016.

Accessibility

Part M compliancy available.

Frame

-

Material

Timber/ wooden.

Species

Engineered Redwood frame and sashes with Hardwood Sapele cill.

Engineered Hardwood Red Grandis.

Accoya.

Perimeter seals or inserts

Deventer TPE Thermoplastic Elastomer.

Finish

Three coats of spray applied water based micro-porous paint.

Three coats of spray applied water based micro-porous stain.

External

White (RAL 9003).

Guidance for specification option:

Standard.

Colour from RAL classic range.

Guidance for specification option:

Insert requirement.

Colour match.

Guidance for specification option:

Insert requirement.

Dual finish.

Guidance for specification option:

Insert requirement.

Internal

White (RAL 9003).

Guidance for specification option:

Standard.

Colour from RAL classic range.

Guidance for specification option:

Insert requirement.

Colour match.

Guidance for specification option:

Insert requirement.

Dual finish.

Guidance for specification option:

Insert requirement.

Door leaf

-

Panel details

Not required.

27 mm insulated flat panel with or without bolection moulding.

27 mm insulated grooved panel with or without bolection moulding.

45 mm insulated raised and fielded panel.

Species

Engineered Redwood frame and door leaves with Sapele Hardwood cill.

Engineered Hardwood Red Grandis.

Accoya.

Manufacturer guidance

Engineered clear grade knot free timber, all FSC certified. Chain of Custody can be specified.

Finish

Three coats of spray applied water based micro-porous paint.

Three coats of spray applied water based micro-porous stain.

Colour

-

External

White (RAL 9003).

Guidance for specification option:

Standard.

Colour from RAL classic range.

Guidance for specification option:

Insert requirement.

Colour match.

Guidance for specification option:

Insert requirement.

Dual finish.

Guidance for specification option:

Insert requirement.

Internal

White (RAL 9003).

Guidance for specification option:

Standard.

Colour from RAL classic range.

Guidance for specification option:

Insert requirement.

Colour match.

Guidance for specification option:

Insert requirement.

Dual finish.

Guidance for specification option:

Insert requirement.

Glazing

-

Type

24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.2.

24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.0.

24.8 mm Acoustic Double glazed unit comprising 6.8 mm Sound Control Laminate / 14 mm Argon/ 4mm Tough Low E 1.2.

24.8 mm Acoustic Double glazed unit comprising 8.8 mm Sound Control Laminate / 10 mm Krypton/ 6 mm Tough Low E 1.0.

27.6 mm Enhanced Acoustic Double glass unit comprising 10.8 mm Sound Control Laminate / 10 mm Krypton / 6.8 mm Sound Control Laminate Low E 1.0.

14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Low E 1.0.

16.8 mm Double glass unit comprising 6.8 mm Laminate / 6 mm Krypton / 4 mm Tough Low E 1.0.

Single glass 4 mm Toughened.

Single glass 6 mm Toughened.

Single Glass 6.8 mm Sound Control Laminate.

Single Glass 4.5 mm Goetheglas Restoration Glass.

Manufacturer guidance

Externally putty glazed in accordance with Glass and Glazing Federation requirements.

Hardware

Polished Brass straight lever handle.

Polished Brass swan neck lever handle.

Polished Chrome straight lever handle.

Polished Chrome swan neck lever handle.

Satin Chrome straight lever handle.

Satin Chrome swan neck lever handle.

Black Iron Lever handle.

Pewter Lever handle.

Other.

Guidance for specification option:

Alternatives available upon request.

Frame sections (width x depth)

68 x 93 mm.

90 x 93 mm timber cill.

44 x 142 mm Hardwood Sapele timber sub cill with low level aluminium threshold (mobility compliant).

Low level aluminium threshold (mobility compliant) no timber sub cill.

Sill projection

35 mm.

60 mm.

85 mm.

110 mm.

125 mm.

Show more

Horns

Cill horns not required.

Cill horns required.

Hinges

Lift off butt hinges powder coated to RAL classic colour.

Polished Brass fixed pin hinges.

Polished Chrome fixed pin hinges.

Satin Chrome fixed pin hinges.

Dark bronze fixed pin hinges.

Show more

Cabin hooks

Not required.

Required.

Guidance for specification option:

Recommended with projection hinges.

Head drip

Not required.

Required.

Frame profile moulding

Lambs tongue.

Ovolo.

Square.

Glazing bars and sash internal perimeter profile

24 mm Ovolo.

24 mm Lambs tongue.

Glass spacer perimeter bar

Black warm edge perimeter spacer.

White warm edge perimeter spacer.

Black aluminium perimeter spacer.

White aluminium perimeter spacer.

Trickle ventilation

Not required.

Concealed with timber head drip.

Trickle ventilator (4600 mm EA) - surface mounted.

Air permeability

-

Manufacturer guidance

Dependent on opening arrangement and threshold detail.

Watertightness

-

Manufacturer guidance

Dependent on opening arrangement and threshold detail.

Wind resistance

-

Manufacturer guidance

Dependent on opening arrangement and threshold detail.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

-

Manufacturer guidance

Refer to manufacturer website for product end of life instructions.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2015

2
