Classic Single and French timber doors
Verified by manufacturer 23 days ago

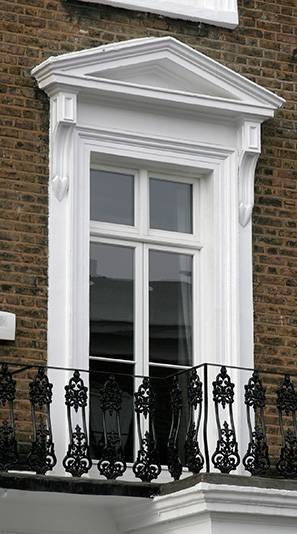

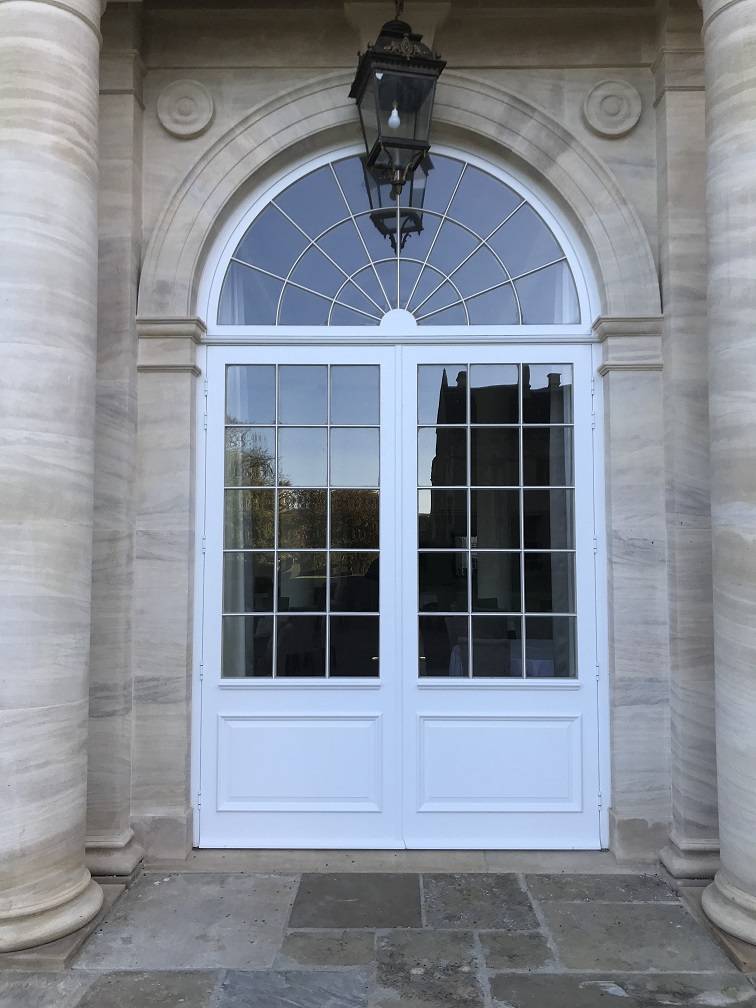

Single and French timber / wooden balcony doorsets with slim glazing units in traditional profiles to complement the Sash and Casement window products.
Application
Suitable for conservation areas and listed buildings.
Description
Our traditionally styled timber French Doors and Single Doors in the Classic range provide high security performance and are equipped with multi-point locking systems. As part of the Classic collection these elegant timber door sets feature individual 14 mm slim profile units with true bars and with an external putty faced finish, offer truly authentic period aesthetics.
Our made-to-order timber French Doors, as with all slim double glazed Classic range products, can be tailored to suit your design requirements and are available with many traditional panel styles.
General information
Color | White Manufacturer guidanceColours from the RAL classic range and colour matching also available. |
Finish | Painted |
Material | Wood Timber |
Shape | Rectangle |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/420 Wood doorsets L20/55 Doorsets |
Product range |
Specification data - Wood doorsets
Configuration | Double leaf, open out.Double leaf, open in.Single leaf, open out.Single leaf, open in. |
Doorset size | Manufacturer guidanceInsert requirements or refer to a drawing or schedule. |
Frame | |
Material | Timber/ wooden. |
Species | Engineered Redwood frame and sashes with Hardwood Sapele cill.Engineered Hardwood Red Grandis.Accoya. |
Perimeter seals or inserts | Deventer TPE Thermoplastic Elastomer. |
Finish | Three coat spray applied factory finish using water based micro-porous paint. |
External | White (RAL 9003).Guidance for specification option: Standard. Colour from RAL classic range.Guidance for specification option: Insert requirement. Colour match.Guidance for specification option: Insert requirement. Dual finish.Guidance for specification option: Insert requirement. |
Internal | White (RAL 9003).Guidance for specification option: Standard. Colour from RAL classic range.Guidance for specification option: Insert requirement. Colour match.Guidance for specification option: Insert requirement. Dual finish.Guidance for specification option: Insert requirement. |
Door leaf | |
Thickness | 57 mm. |
Panel details | Not required.27 mm insulated flat panel with bolection moulding.27 mm insulated grooved panel with bolection moulding. |
Species | Engineered Redwood frame and door leaves with Sapele Hardwood cill.Engineered Hardwood Red Grandis.Accoya.Manufacturer guidanceEngineered clear grade knot free timber, all FSC certified. Chain of Custody can be specified. |
Finish | Three coat spray applied factory finish using water based micro-porous paint. |
Colour | |
External | White (RAL 9003).Guidance for specification option: Standard. Colour from RAL classic range.Guidance for specification option: Insert requirement. Colour match.Guidance for specification option: Insert requirement. Dual finish.Guidance for specification option: Insert requirement. |
Internal | White (RAL 9003).Guidance for specification option: Standard. Colour from RAL classic range.Guidance for specification option: Insert requirement. Colour match.Guidance for specification option: Insert requirement. Dual finish.Guidance for specification option: Insert requirement. |
Glazing | |
Type | Fully glazed door with 14 mm double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Planitherm One.Guidance for specification option: Whole door U-value: 1.7 W/m²K / G-value: 0.52. Fully glazed door with 14.8 mm laminated double glazed unit comprising 6.8 mm laminated / 4 mm Krypton / 4 mm Tough Planitherm One.Guidance for specification option: Whole door U-value: 2.0 W/m²K / G-value: 0.52. 14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Low E 1.0.14.8 mm Double glass unit comprising 6.8 mm Laminate / 4 mm Krypton / 4 mm Tough Low E 1.0.14 mm Double glass unit comprising 4 mm Goetheglas Restoration Glass / 6 mm Krypton / 4 mm Tough Low E 1.0.Manufacturer guidanceExternally putty glazed in accordance with Glass and Glazing Federation requirements. |
Beading | |
Type | Internal cassette beading. |
Hardware | Polished Brass straight lever handle.Polished Brass swan neck lever handle.Polished Chrome straight lever handle.Polished Chrome swan neck lever handle.Satin Chrome straight lever handle.Satin Chrome swan neck lever handle.Black Iron Lever handle.Pewter Lever handle.Other.Guidance for specification option: Alternatives available upon request. Manufacturer guidanceSelected Croft ironmongery available on request. |
Frame sections (width x depth) | 68 x 93 mm. 90 x 93 mm timber sill. 44 x 142 mm Hardwood Sapele timber sub sill with low level aluminium threshold (mobility compliant). Low level aluminium threshold (mobility compliant) no timber sub sill. |
Sill projection | 35 mm. 60 mm. 85 mm. 110 mm. 125 mm. |
Horns | Cill horns not required. Cill horns required. |
Hinges | Lift off butt hinges powder coated to RAL classic colour. Polished Brass fixed pin hinges. Polished Chrome fixed pin hinges. Satin Chrome fixed pin hinges. Dark bronze fixed pin hinges. |
Cabin hooks | Not required. Required. Guidance for specification option: Recommended with projection hinges. |
Head drip | Not required. Required. |
Frame profile moulding | Lambs Tongue. Ovolo. Square. |
Glazing bars and sash internal perimeter profile | 24 mm Lambs Tongue. 24 mm Ovolo. |
Glass spacer perimeter bar | White aluminium. Guidance for specification option: 14 mm glass units only. Silver/black aluminium. Guidance for specification option: 14 and 14.8 mm glass units. |
Trickle ventilation | Not required. Concealed with timber head drip. Trickle ventilator (4600 mm EA) - surface mounted. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | Manufacturer guidanceRefer to manufacturer website for product end of life instructions |
