Conservation Entrance Timber Doors - Timber/ Wooden Conservation Doors
Verified by manufacturer 2 months ago

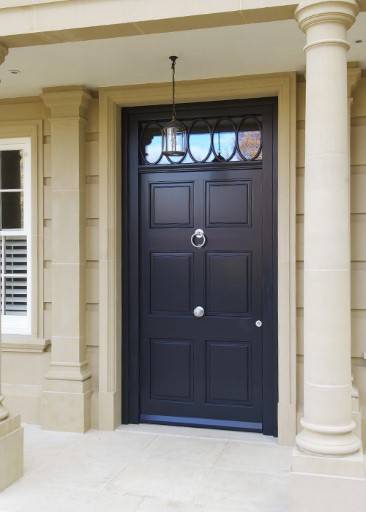

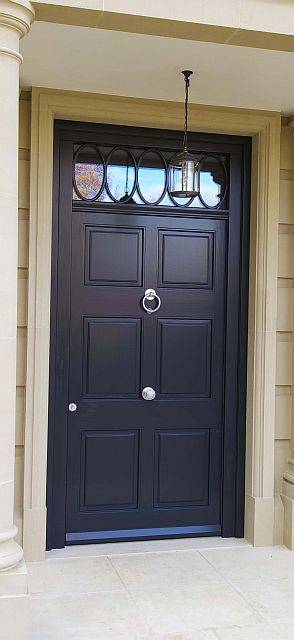

Timber/ Wooden Conservation Entrance doorsets in traditional profiles to complement the Conservation Sash and Casement Window products.
Application
Suitable for any residential, commercial properties and conservation areas.
Description
Our timber Entrance Doors are classically styled with wide timber sections creating the appearance and feel of traditional grand entrance doors, while being fully equipped with integrated high security locking systems.
Our Conservation Entrance Door is available in a wide range of styles and finishes with numerous glazing and panel options. So, whether you are looking for a traditional 6 panel Georgian front door, a grand Victorian front door, a stained planked cottage front door, or a contemporary wooden front door, we can tailor to suit your taste.
General information
Color | White Other Black Blue Brown Manufacturer guidanceColours from the RAL classic range, colour matching and stains also available. |
Finish | Painted Stained |
Material | Wood Timber |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Manufacturer guidanceTimber: 30; Glazing, ironmongery and seals: 10; Paint finish: 10; Stain finish: 5. |
Uniclass | |
CAWS | L20/420 Wood doorsets L20/55 Doorsets |
Product range |
Specification data - Wood doorsets
Doorset size | Up to 1300 x 3000 mm.Manufacturer guidanceInsert requirements or refer to a drawing or schedule. |
Performance | |
Thermal | 1.5 or better subject to chosen specification. |
Intruder resistance | |
Minimum requirement | PAS24:2016. |
Accessibility | Part M compliancy available. |
Frame | |
Species | Engineered Redwood frame with Red Grandis sashes with Hardwood Sapele cill.Engineered Hardwood Red Grandis.Accoya.Manufacturer guidanceEngineered clear grade knot free timber, all FSC certified. Chain of Custody can be specified. |
Perimeter seals or inserts | Deventer TPE Thermoplastic Elastomer. |
Finish | Three coats of spray applied water based micro-porous paint.Three coats of spray applied water based micro-porous stain. |
External | White (RAL 9003).Colour from RAL classic range.Guidance for specification option: Insert requirement. Colour match.Guidance for specification option: Insert requirement. Dual finish.Guidance for specification option: Insert requirement. |
Internal | White (RAL 9003).Colour from RAL classic range.Guidance for specification option: Insert requirement. Colour match.Guidance for specification option: Insert requirement. Dual finish.Guidance for specification option: Insert requirement. |
Door leaf | |
Thickness | 57 mm. |
Panel details | 28 mm insulated flat panel.28 mm insulated flat panel with bolection moulding.28 mm insulated grooved panel.28 mm insulated grooved panel with bolection moulding.45 mm insulated raised and fielded panel. |
Species | Engineered Red Grandis Hardwood.Engineered Redwood Softwood.Accoya. |
Finish | Three coats of spray applied water based micro-porous paint.Three coats of spray applied water based micro-porous stain. |
Colour | |
External | White (RAL 9003).Colour from RAL classic range.Guidance for specification option: Insert requirement. Colour match.Guidance for specification option: Insert requirement. Dual finish.Guidance for specification option: Insert requirement. |
Internal | White (RAL 9003).Colour from RAL classic range.Guidance for specification option: Insert requirement. Colour match.Guidance for specification option: Insert requirement. Dual finish.Guidance for specification option: Insert requirement. |
Glazing | |
Type | 24 mm Double glass unit comprising 4mm Tough / 16mm Argon / 4mm Tough Low E 1.2.24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.0.24.8 mm Acoustic Double glazed unit comprising 6.8 mm Sound Control Laminate / 14 mm Argon/ 4 mm Tough Low E 1.2.24.8 mm Acoustic Double glazed unit comprising 8.8 mm Sound Control Laminate / 10 mm Krypton/ 6 mm Tough Low E 1.0.27.6 mm Enhanced Acoustic Double glass unit comprising 10.8 mm Sound Control Laminate / 10 mm Krypton / 6.8 mm Sound Control Laminate Low E 1.0.14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Low E 1.0.16.8 mm Double glass unit comprising 6.8 mm Laminate / 6 mm Krypton / 4 mm Tough Low E 1.0.Single glass 4 mm Toughened.Single glass 6 mm Toughened.Single Glass 6.8 mm Sound Control Laminate.Single Glass 4.5 mm Goetheglas Restoration GlassManufacturer guidanceInternally dry glazed and vented with glazing tapes in accordance with Glass and Glazing Federation requirements. |
Beading | |
Type | Internal cassette beading. |
Frame section (width x depth) | 68 x 93 mm. 90 x 93 mm. |
Door leaf section | 117 x 57 mm. Guidance for specification option: Stile (width x depth) with 219 mm bottom rail. |
Sill | 44 x 142 mm Hardwood Sapele timber sub sill with low level aluminium threshold (mobility compliant). Low level aluminium threshold (mobility compliant) no timber sub sill. |
Hinges | Polished Brass fixed pin hinges. Polished chrome fixed pin hinges. Satin chrome fixed pin hinges. Antique brass fixed pin hinges. Dark Bronze fixed pin hinges. |
Frame profile moulding | Ovolo. Lambs tongue. Square. |
Internal Glazing Bars and/or Perimeter Bead | 18 mm Fine lambs tongue. 18 mm Ovolo. 18 mm Square. 22 mm Lambs tongue. 22 mm Ovolo. |
External Glazing Bars | 18 mm chamfered putty bar. 22 mm chamfered putty bar. 28 mm chamfered putty bar. 6 mm ‘antiqued’ lead to internal and external faces of the outer pane. 9 mm ‘antiqued’ lead to internal and external faces of the outer pane. |
Integral glazing bars and/ or perimeter bead | Black warm edge perimeter spacer and integral glazing bars within unit cavity. Guidance for specification option: 24 and 24.8 glazing. White warm edge perimeter spacer and integral glazing bars within unit cavity. Guidance for specification option: 24 and 24.8 glazing. Black aluminium perimeter spacer. Guidance for specification option: 14 and 14.8 glazing. White aluminium perimeter spacer. Guidance for specification option: 14 and 14.8 glazing. |
Fanlight design | Not required. Diamond. Egg and dart. Fish tail. Gothic. Manufacturer guidanceSpecial decorative bar and leaded designs available. Include design drawings in specification. |
Door knob | Not required. Polished Brass. Polished Chrome. Satin Chrome. Other. Guidance for specification option: Alternatives available upon request. |
Door knocker | Not required. Polished Brass. Polished Chrome. Satin Chrome. Other. Guidance for specification option: Alternatives available upon request. |
Letter plate | Not required. Polished Brass. Polished Chrome. Satin Chrome. Other. Guidance for specification option: Alternatives available upon request. |
Spy hole | Not required. Polished Brass. Polished Chrome. Satin Chrome. Other. Guidance for specification option: Alternatives available upon request. |
Air permeability | Manufacturer guidanceDependent on opening arrangement and threshold detail. |
Watertightness | Manufacturer guidanceDependent on opening arrangement and threshold detail. |
Wind resistance | Manufacturer guidanceDependent on opening arrangement and threshold detail. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | Up to 80% Manufacturer guidanceRefer to manufacturer website for product end of life instructions. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2015 | 2 |
